TOBO GROUP
TOBO International Trading(Shanghia)Co.,Ltd Tianda Oil Pipe Co., Ltd
TOBO Pipeline Equipment Co.,Ltd TPCO & TISCO Pipe(Tianjin)Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | ASTM A-350 GF LF2 |
| Minimum Order Quantity: | 1pc |
| Price: | US $ 10 - 100 / Kilogram |
| Packaging Details: | Seaworthy wooden cases or pallets tied by steel band or as per client's requirements |
| Delivery Time: | 30 days After Receiving the 30% Prepayment by T/T or LC |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 Metric Ton/Metric Tons per Month |
| Type: | Flange/Forgings/Discs/Rings/Shaft/Sleeves | Standard: | ANSI B16.5, ANSI B16.47, MSS SP-44 Or As Per The Customers' Request Or Drawing |
|---|---|---|---|
| Size: | 1/2''~72'' | Class Rating: | 150#~2500# |
| Facing: | RF(raised Face);FF(flat Face);RTJ(ring Type Joint);RJ(ring Joint Face) TG(tongue And Groove Face);MFM(male And Female Face) | Manufacturing Process: | Push, Press, Forge, Cast, Etc. |
| Packing: | Wooden Cases, Pallets, Nylon Bags Or According To The Customers' Requirements | MOQ: | 1pcs |
| Delivery Time: | 10-100 Days Depending On Quantity | Payment Terms: | L/C,T/T |
| Shipment: | FOB Tianjin/Shanghai, CFR, CIF Etc | Application: | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc |
| Remarks: | Other Materials And Drawings Are Available. | ||
| Highlight: | forged fittings and flanges,butt weld flanges |
||
| Material: | Duplex & Super Duplex | Technics: | wrought | Type: | Flange | Flange | |
| Place of Origin: | Shanghai, China (Mainland) | Model Number: | ASTM A350 LF2 carbon steel | Brand Name: | TOBO | HT | |
| Connection: | BW | Shape: | tee | Head Code: | Bevelled and plain Ends | Bevelled & Plain Ends | |
| Type 1: | flange | Type 2: | blind flange |
| Packaging Details: | Plywood case/Wooden case/Pallet |
| Delivery Detail: | 10-15 days after receiving your deposits |

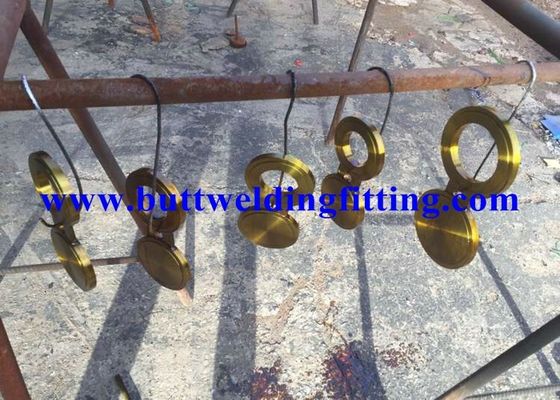

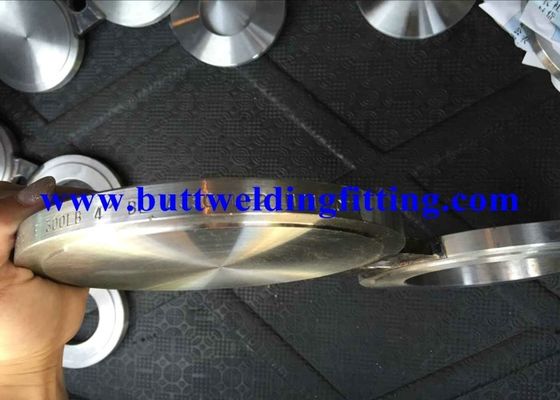

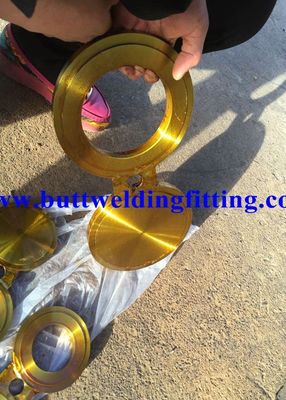

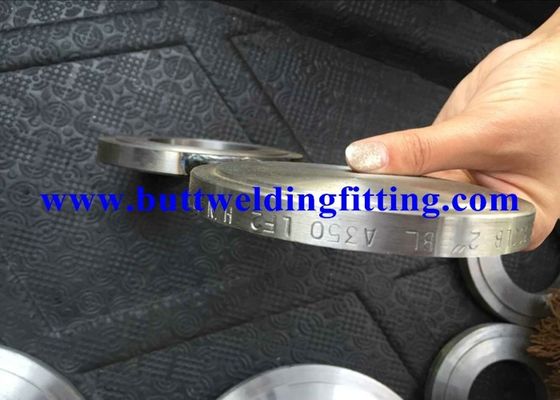

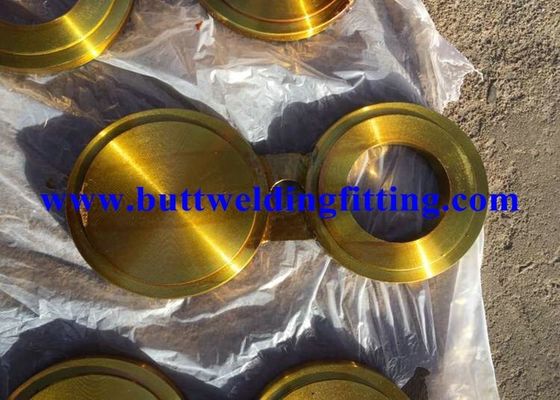

ASTM A350 LF2 carbon steel spectacle blind flange
| Type | Flange/Forgings/Discs/Rings/Shaft/Sleeves |
| Standard | ANSI B16.5, ANSI B16.47, MSS SP-44 or as per the customers' request or drawing |
| Size | 1/2''~72'' |
| Class Rating | 150#~2500# |
| Facing |
RF(raised face);FF(flat face);RTJ(ring type joint);RJ(ring joint face) TG(tongue and groove face);MFM(male and female face) |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
|
Material
Carbon steel Stainless steel Alloy steel Duplex stainless steel Nickel alloy steel |
Carbon steel, stainless steel, alloy steel |
|
ASTM A694 F42,F46,F48,F50,F52,F56,F60,F65,F70; ASTM A105; ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2; ASTM A266 GR.1,GR.2,GR.3,GR.4 |
|
|
ASTM A182 F 304, 304L, 304H, 309S, 309H, 310S, 310H,316, 316Ti,316L,317, 317L, 321, 347,347H,348 |
|
| ASTM A182 F5, F5a , F9, F11, F12, F22, F91; | |
|
Nickel Alloy Steel: Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN; Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL; Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; Alloy K-500/Monel K-500/NO5500/2.475; Alloy 600/Inconel 600/NO6600/NS333/2.4816; Alloy 601/Inconel 601/NO6001/2.4851; Alloy 625/Inconel 625/NO6625/NS336/2.4856; Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668; Alloy 800/Incoloy 800/NO8800/1.4876; Alloy 800H/Incoloy 800H/NO8810/1.4958; Alloy 800HT/Incoloy 800HT/NO8811/1.4959; Alloy 825/Incoloy 825/NO8825/2.4858/NS142; Alloy 925/Incoloy 925/NO9925; Hastelloy C/Alloy C/NO6003/2.4869/NS333; Alloy C-276/Hastelloy C-276/N10276/2.4819; Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610; Alloy C-22/Hastelloy C-22/NO6022/2.4602; Alloy C-2000/Hastelloy C-2000/NO6200/2.4675; Alloy B/Hastelloy B/NS321/N10001; Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617; Alloy B-3/Hastelloy B-3/N10675/2.4600; Alloy X/Hastelloy X/NO6002/2.4665; Alloy G-30/Hastelloy G-30/NO6030/2.4603; Alloy X-750/Inconel X-750/NO7750/GH145/2.4669; Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660; Alloy 31/NO8031/1.4562; Alloy 901/NO9901/1.4898; Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926; Inconel 783/UNS R30783; NAS 254NM/NO8367; Monel 30C Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952 Nimonic 263/NO7263 Nimonic 90/UNS NO7090; Incoloy 907/GH907; Nitronic 60/Alloy 218/UNS S21800; |
|
|
ASTM A182 F51/UNS S31803, F53/UNS S32750,F55/UNS S32760 F904L/NO8904/1.4539; 254SMO/F44/S31254/1.4547 724L;725LN/310MoLN |
|
| Packing | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | L/C,T/T |
| Shipment | FOB Tianjin/Shanghai, CFR, CIF etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Orders regarding to this material:
| Pos | Name | Specification | Standart | Unit | Qty |
| 2 | SPECTACLE BLIND 4" | Class 300 RF/ASTM A-350 GF LF2/ | ASME B16.34 | pcs | 100 |
| 3 | SPECTACLE BLIND 2" | Class 300 RF/ASTM A-350 GF LF2/ | ASME B16.34 | pcs | 150 |
