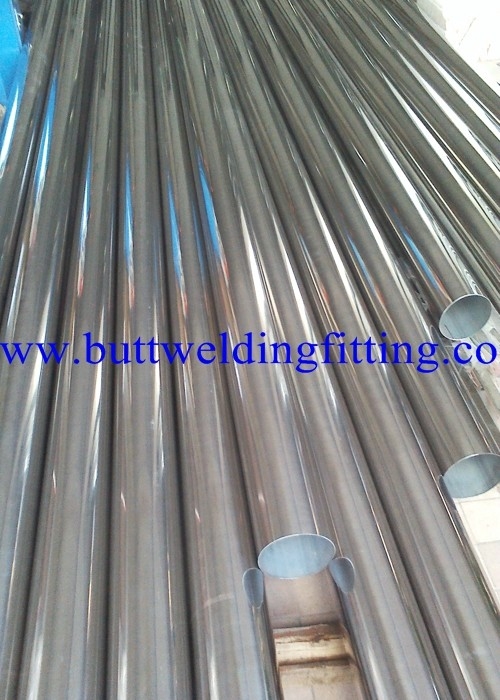

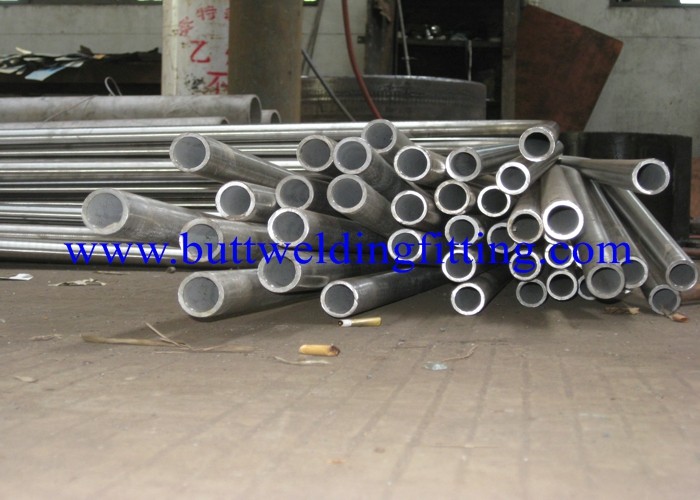

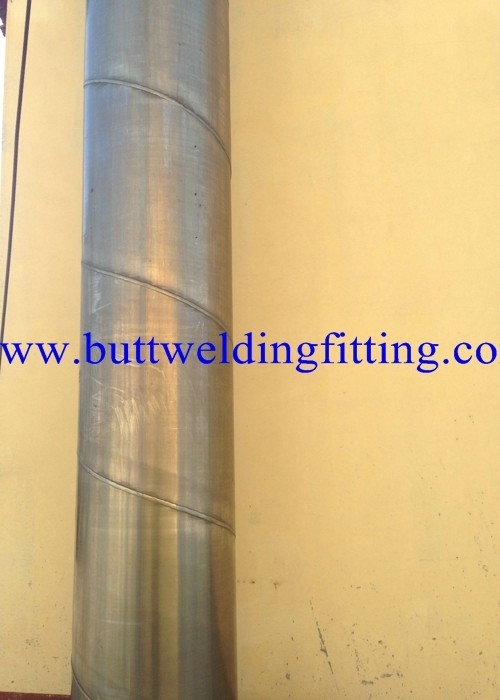

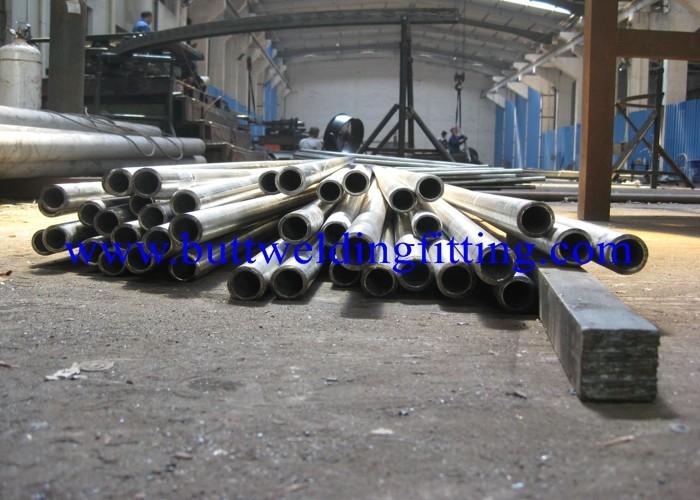

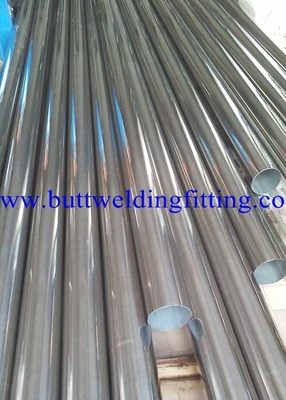

Duplex S32750 Seamless Stainless Steel Tube ASME A789 A790 A450 A530

China Duplex S32750 Seamless Stainless Steel Tube ASME A789 A790 A450 A530 supplier
Duplex S32750 Seamless Stainless Steel Tube ASME A789 A790 A450 A530 supplier Duplex S32750 Seamless Stainless Steel Tube ASME A789 A790 A450 A530 supplier Duplex S32750 Seamless Stainless Steel Tube ASME A789 A790 A450 A530 supplier Duplex S32750 Seamless Stainless Steel Tube ASME A789 A790 A450 A530 supplier Duplex S32750 Seamless Stainless Steel Tube ASME A789 A790 A450 A530 supplier

Large Image :  Duplex S32750 Seamless Stainless Steel Tube ASME A789 A790 A450 A530

Product Details:

Place of Origin: China/Japan/Germany
Brand Name: TOBO/TPCO/TISCO/VALIN/METAL
Certification: ISO/PED/TUV/SGS/LR/BV
Model Number: S31803/S31500/S32750

Payment & Shipping Terms:

Minimum Order Quantity: 0.5-1 tons
Price: negotiable
Packaging Details: in plastic bags then in bundles
Delivery Time: According to the qty
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1500 tons per month
Contact Now
Detailed Product Description
OD: 6MM---710MM Material: ASME A789 A790 A450 A530
Thickness: 2.5mm---50mm Standard: S32750

Duplex S32750 Seamless Stainless Steel Tube ASME A789 A790 A450 A530




Quick Detail:


Brand Name: TOBO
Model Number: S31803/S31500/S32750
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin: China



Product Name S32750 Duplex Stainless Steel Pipe ASME A789 A790 A450 A530 For Industry Product Type Duplex Stainless Steel Pipe
OD 6MM---710MM Thickness 2.5mm---50mm
Material Grrade S32101,S32205,S31803,S32304,S32750, S32760 Type ASME A789 A790 A450 A530
Standard ASTM A790/A789 PICKLED AND ANEANLED Standard Duplex Stainless Steel Pipe
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 3,0000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET





Specifications:
OUR TOBO PRODUCTION WORKSHOP
The safety in production, quality first.
Specialized production workshop, professional production staff.
Shop the '7 s' principle
The standardized production, the comprehensive treatment
TOBO CHARISMA :
Make development by enlarging scale brand building and internationalization.
Keep Challenging and Innovation.
Advance manufacturing instruments.
Create perfect quality.
Take strict testing as guarantee, upgrade grade as object.
EXHIBITION AND CUSTORMER SATISFACTORY



Detailed Product Description

S32750 Duplex Stainless Steel Pipe ASME A789 A790 A450 A530 For Industry







Quick Detail:



Our TOBO offer an extensive range of Seamless Pipes to our clients. We also deal with super duplex pipes. Our stainless steel seamless pipe was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc



1 Standard: ASTM A790/A789 PICKLED AND ANEANLED

2 Material: S31803/S31500/S32750 etc

3 OD: 6MM---710MM

Thickness: 2.5mm---50mm

4 Certificate: PED, ISO, GB, GOST

5 Producing method: cold drawn and cold rolled



Stainless Steel Pipe:


1. Material: S31803/S31500/S32750 ETC
2. O.D: 6mm-710mm , Thickness:2.5-50mm

3. A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the Thpe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.

4. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8” TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.

5. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the lenss than the permitted in Section 9 of Specification A999/A999M

6. Butt Weld End: According to ANSI B 16.25
7. Pipe Marking: Specified in A999/999M, include “Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T”

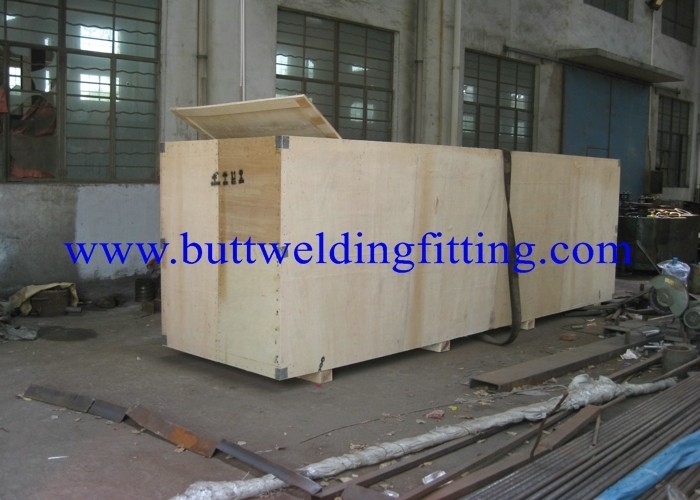

8. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.

9. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.

10. MTC: TOBO Official Original MTC paper will be supplied for each order.



We can dealing with a wide range material as following:



Material Grade:



American Standard

Austenitic Steel:

TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Others:TP405,TP409, TP410, TP430, TP439,...

Europen Standard 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501
Russia Standard 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ







Inspection & Test
1. 100% PMI, Spectro Chemical Analysis Test for Raw Material
2. 100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test Flattening Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4. 100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5. Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6. Straightness Test (optional)
7. Roughness Test (optional)
8. Intergranular Corrosion Test(optional)
9. Impact Test (optional)
10. Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.


Duplex S32750 Seamless Stainless Steel Tube ASME A789 A790 A450 A530Duplex S32750 Seamless Stainless Steel Tube ASME A789 A790 A450 A530Duplex S32750 Seamless Stainless Steel Tube ASME A789 A790 A450 A530
