ASTM A182 F53 Threaded Flange CL600 DN100 Petroleum Buttweld Flange
| Place of Origin | China |
|---|---|
| Brand Name | TOBO |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | ASTM A182 F53 |
| Minimum Order Quantity | 1pc |
| Price | US $ 10 - 100 / Kilogram |
| Packaging Details | Seaworthy wooden cases or pallets tied by steel band or as per client's requirements |
| Delivery Time | 30 days After Receiving the 30% Prepayment by T/T or LC |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50 Metric Ton/Metric Tons per Month |
Product Details
| Type | Threaded Flange | Size | 1/2''~48'' |
|---|---|---|---|
| Class Rating | 150#~2500# | Facing | RF(raised Face);FF(flat Face);RTJ(ring Type Joint);RJ(ring Joint Face) TG(tongue And Groove Face);MFM(male And Female Face) |
| Manufacturing Process | Push, Press, Forge, Cast, Etc. | Packing | Wooden Cases, Pallets, Nylon Bags Or According To The Customers' Requirements |
| MOQ | 1pcs | Delivery Time | 10-100 Days Depending On Quantity |
| Payment Terms | L/C,T/T | Shipment | FOB Tianjin/Shanghai, CFR, CIF Etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc | Remarks | Other Materials And Drawings Are Available. |
| Highlight | forgings flanges and fittings,forged fittings and flanges |
||
Product Description

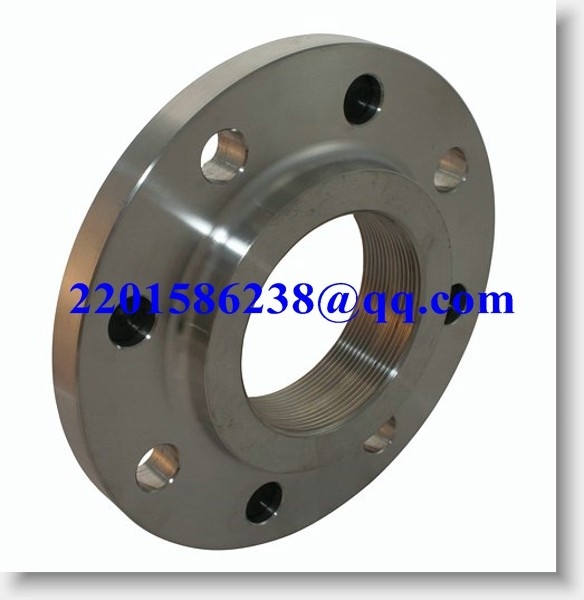

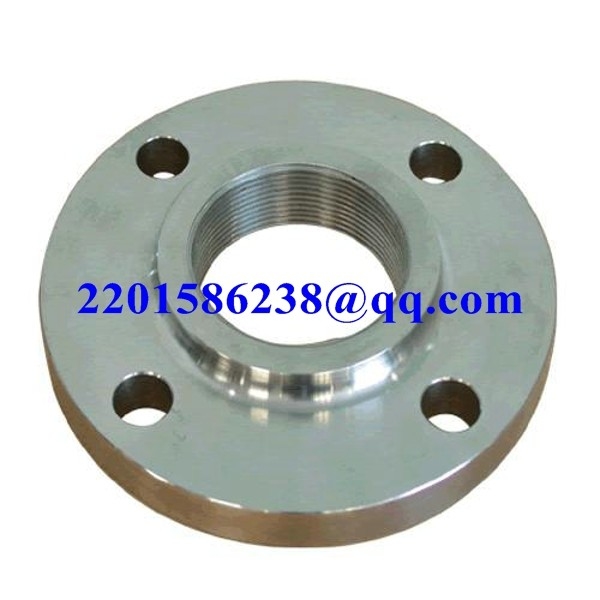

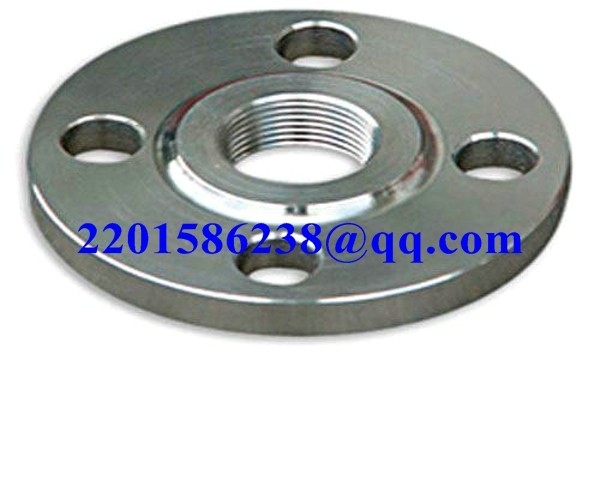

ASTM A182 F53 Threaded Flange CL600 DN100 Petroleum Buttweld Flange
Quick Details
- Size: 4"
- Material: Super Duplex Stainless Steel 2507 (F53), etc
- Place of Origin: Shanghai, China (Mainland)
- Brand Name:TOBO
- Standard or Nonstandard: Standard
- Technics: Forged
- Standard: ASME B16.5, ANSI B16.5, Etc
- Type: F53 Threaded Flange

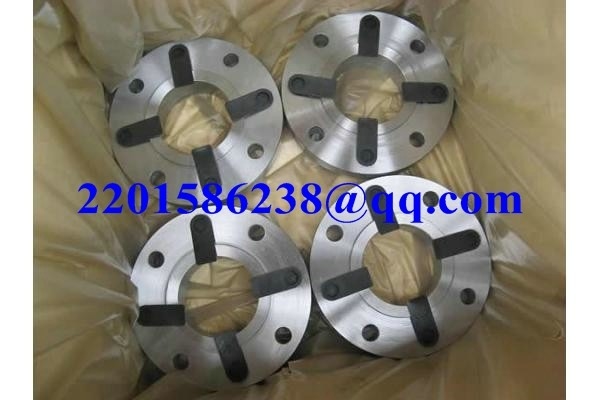

Packaging & Delivery
| Packaging Details: | Seaworthy plywood case or as customer requests |
|---|---|
| Delivery Detail: | 2 - 10 days after receiving the deposit |
Specifications
A182 F53 Threaded Flange
1. Material: Super Duplex Stainless Steel 2507 (F53), etc
2. Size: 4" (DN100)
3. Standard: ASME B16.5, ANSI B16.5, etc
4. Pressure: 150#, 300#, 600#, etc
About Super Duplex Stainless Steel 2507 (F53)
2507 is the most common Super Duplex Stainless Steel which contains 24% chromium
and a minimum of 3% molybdenum. Please refer to the chemical composition and mechanic
properties tables below.
Chemical Composition
|
GRADE
|
C≤
|
Mn≤
|
Si≤
|
S≤
|
P≤
|
Cr≤
|
Ni
|
Mo
|
Cu≤
|
N
|
|
S32750
(2507)
00Cr25Ni7Mo4N
|
0.03
|
1.20
|
0.8
|
0.020
|
0.035
|
24.0/26.0
|
6.0/8.0
|
3.0/5.0
|
0.50
|
0.24/0.32
|
| Type | A182 F53 Threaded Flange |
| Size | 4" |
| Standards | SO, WN, SW, TH, LJ, BL, PL, etc |
| Material |
Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L Carbon Steel: ASTM A234 WPB, WPC ASTM A105 WPHY 42, etc Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 Duplex Stainless Steel: F51, 2205, etc Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800, Hastelloy C276, Hastelloy C276, Hastelloy B1/B2/B3, Alloy 20, etc Cu-Ni: 90/10,70/30 |
| Applications | Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc |
F53 Threaded Flange this kind of flange is in the socket of flat welding flange pipe thread tube and pipe connection, the flange material does not necessarily consistent with pipes. One of the flange is fitting. So, this kind of flange. Therefore has been widely used, the thickness of the section of the high neck through the high neck gradually transition to the wall thickness, thus increasing the intensity of f53 threaded flange.
APPLICATIONS :
1. petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
6. Oil and gas industry
Other Features:
1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant
2) We also produce flange with special specifications according to customers’ requirements;
