UNS S31803 Stainless Steel Stub Ends WP347 WP904L ASME / ANSI

China UNS S31803 Stainless Steel Stub Ends WP347 WP904L ASME / ANSI supplier
UNS S31803 Stainless Steel Stub Ends WP347 WP904L ASME / ANSI supplier UNS S31803 Stainless Steel Stub Ends WP347 WP904L ASME / ANSI supplier UNS S31803 Stainless Steel Stub Ends WP347 WP904L ASME / ANSI supplier UNS S31803 Stainless Steel Stub Ends WP347 WP904L ASME / ANSI supplier UNS S31803 Stainless Steel Stub Ends WP347 WP904L ASME / ANSI supplier UNS S31803 Stainless Steel Stub Ends WP347 WP904L ASME / ANSI supplier UNS S31803 Stainless Steel Stub Ends WP347 WP904L ASME / ANSI supplier

Large Image :  UNS S31803 Stainless Steel Stub Ends WP347 WP904L ASME / ANSI

Product Details:

Place of Origin: China
Brand Name: Tobo
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: Stainless Steel Stub Ends

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD Depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET
Delivery Time: 10-100 days depending on quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,0000pcs per month
Contact Now
Detailed Product Description
Size: 1-48 Inch Standard: ASME B16.9
Type: Seamless Or Weld

UNS S31803 Stainless Steel Stub Ends WP347 WP904L ASME / ANSI



Specifications

1. Stainless steel Stub end
2. sch5s-schxxs
3. ISO9001,ISO9000
4. Market:America,Africa,Middle East,Southeast of Asia

Elbow Type Stainless steel Stub ends.
Standard ASME/ANSI B16.9 MSS SP-43
Size 1/2’’~48’’(Seamless);16’’~72’’(Welded)
Wall thickness Sch5~Sch160XXS
Manufacturing process Push, Press, Forge, Cast, etc.
Material Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel
Carbon steel ASTM A234 WPB, WPC;
Stainless steel

304/SUS304/UNS S30400/1.4301

304L/UNS S30403/1.4306;

304H/UNS S30409/1.4948;

309S/UNS S30908/1.4833

309H/UNS S30909;

310S/UNS S31008/1.4845;

310H/UNS S31009;

316/UNS S31600/1.4401;

316Ti/UNS S31635/1.4571;

316H/UNS S31609/1.4436;

316L/UNS S31603/1.4404;

316LN/UNS S31653;

317/UNS S31700;

317L/UNS S31703/1.4438;

321/UNS S32100/1.4541;

321H/UNS S32109;

347/UNS S34700/1.4550;

347H/UNS S34709/1.4912;

348/UNS S34800;

Alloy steel

ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91;

ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65;

ASTM A420 WPL3/WPL6/WPL9;

Duplex steel

ASTM A182 F51/S31803/1.4462;

ASTM A182 F53/S2507/S32750/1.4401;

ASTM A182 F55/S32760/1.4501/Zeron 100;

2205/F60/S32205;

ASTM A182 F44/S31254/254SMO/1.4547;

17-4PH/S17400/1.4542/SUS630/AISI630;

F904L/NO8904/1.4539;

725LN/310MoLN/S31050/1.4466

253MA/S30815/1.4835;

Nickel alloy steel

Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN;

Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL;

Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;

Alloy K-500/Monel K-500/NO5500/2.475;

Alloy 600/Inconel 600/NO6600/NS333/2.4816;

Alloy 601/Inconel 601/NO6001/2.4851;

Alloy 625/Inconel 625/NO6625/NS336/2.4856;

Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;

Alloy 800/Incoloy 800/NO8800/1.4876;

Alloy 800H/Incoloy 800H/NO8810/1.4958;

Alloy 800HT/Incoloy 800HT/NO8811/1.4959;

Alloy 825/Incoloy 825/NO8825/2.4858/NS142;

Alloy 925/Incoloy 925/NO9925;

Hastelloy C/Alloy C/NO6003/2.4869/NS333;

Alloy C-276/Hastelloy C-276/N10276/2.4819;

Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;

Alloy C-22/Hastelloy C-22/NO6022/2.4602;

Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;

Alloy B/Hastelloy B/NS321/N10001;

Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;

Alloy B-3/Hastelloy B-3/N10675/2.4600;

Alloy X/Hastelloy X/NO6002/2.4665;

Alloy G-30/Hastelloy G-30/NO6030/2.4603;

Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;

Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;

Alloy 31/NO8031/1.4562;

Alloy 901/NO9901/1.4898;

Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;

Inconel 783/UNS R30783;

NAS 254NM/NO8367;

Monel 30C

Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952

Nimonic 263/NO7263

Nimonic 90/UNS NO7090;

Incoloy 907/GH907;

Nitronic 60/Alloy 218/UNS S21800

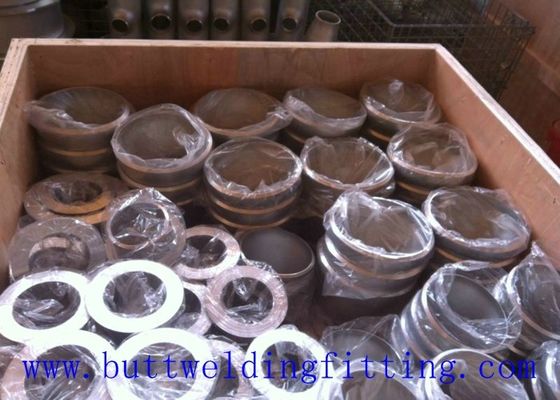

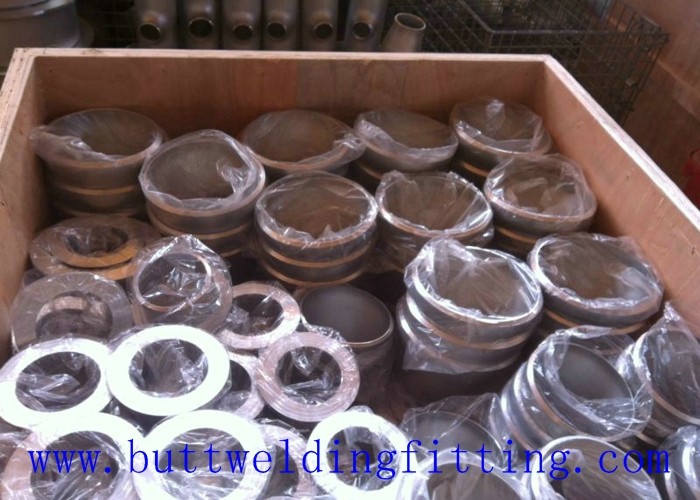

Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FOB Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.

Welcome to contact us.



Product Name: Butt Welding Stainless Steel Fitting Stub end

Size Range:
DN15-DN600 (1/2"-24") Seamless Type
DN15 - DN1200 (1/2"- 48" ) Welded type
Wall Thickness: SCH5 to SCH160
Material:
Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
DIN 1.4301,1.4401,1.4404,1.4541,1.4401,1.4571 etc
Manufacture Standard:
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
End Bevel: According to the standard or the customer's requirements

Surface Treatment: Shot blasted, rust-proof black oil
Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection,UNS S31803 Stainless Steel Stub Ends WP347 WP904L ASME / ANSI
