ASTM A815 UNS31803 GR2205 Duplex Stainless Steel 90 Degree Elbow Welded DN600 SCH40S

  • ASTM A815 UNS31803 GR2205 Duplex Stainless Steel 90 Degree Elbow Welded DN600 SCH40S
  • ASTM A815 UNS31803 GR2205 Duplex Stainless Steel 90 Degree Elbow Welded DN600 SCH40S
  • ASTM A815 UNS31803 GR2205 Duplex Stainless Steel 90 Degree Elbow Welded DN600 SCH40S
  • ASTM A815 UNS31803 GR2205 Duplex Stainless Steel 90 Degree Elbow Welded DN600 SCH40S
  • ASTM A815 UNS31803 GR2205 Duplex Stainless Steel 90 Degree Elbow Welded DN600 SCH40S
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number A815 UNS31803 GR2205
Minimum Order Quantity 1PC
Price negotiation
Packaging Details PLY-WOODEN CASE OR PALLET
Delivery Time 15 work days
Payment Terms T/T, D/P, D/A, Western Union
Supply Ability 9800000PCS Per month
Product Details
Product Name Stainless Steel Elbow Standard ANSI/ASME , EN, DIN,JIS,GOST Etc.
Type Elbow,Tee,Reducer,Cap,Flange,Pipe Application Industrial
Technology Cold Forming Thickness 1 - 60
Surface Treatment Sand Blasting,Sand Rolling, Sand Blasting Radius 2D 3D 5D
Material Stainless Steel, Stainless Steel 304,316L,310,321H,347
Highlight

Pipe Fittings Elbow

,

Stainless Steel 90 Degree Elbow
Leave a Message
Product Description

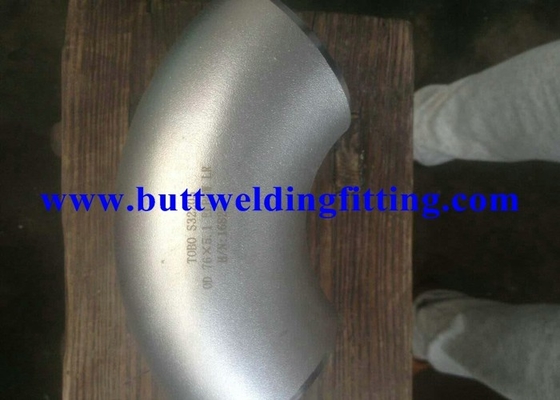

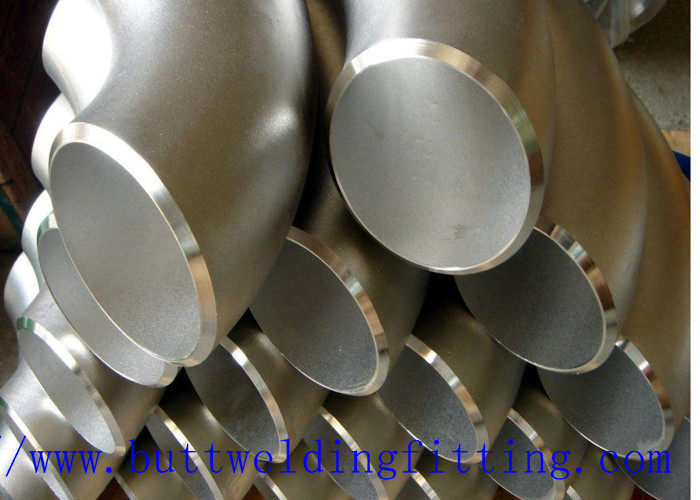

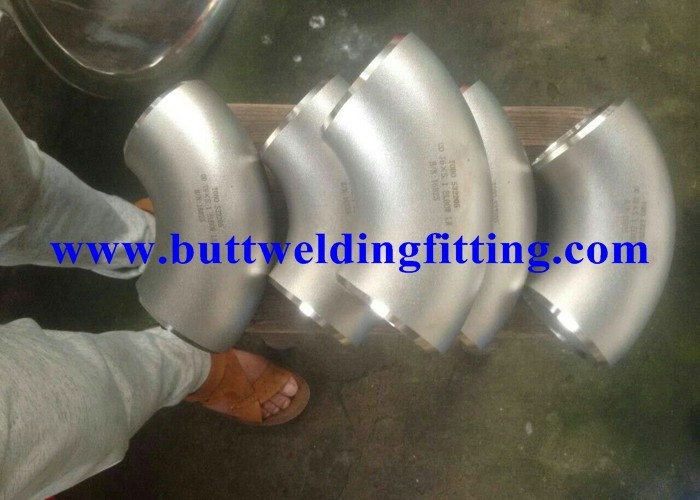

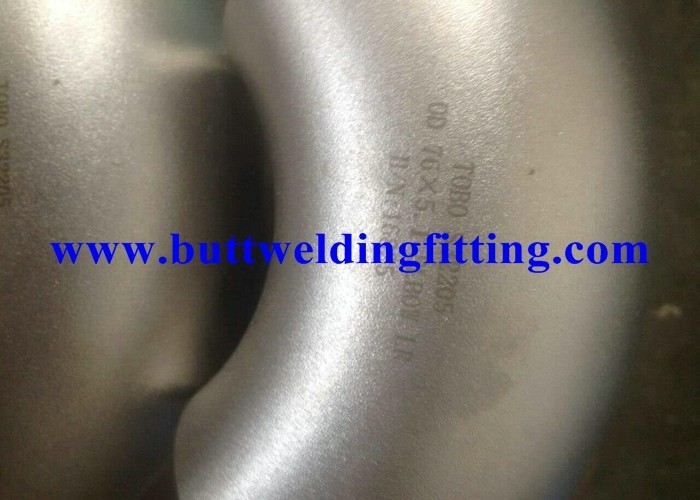

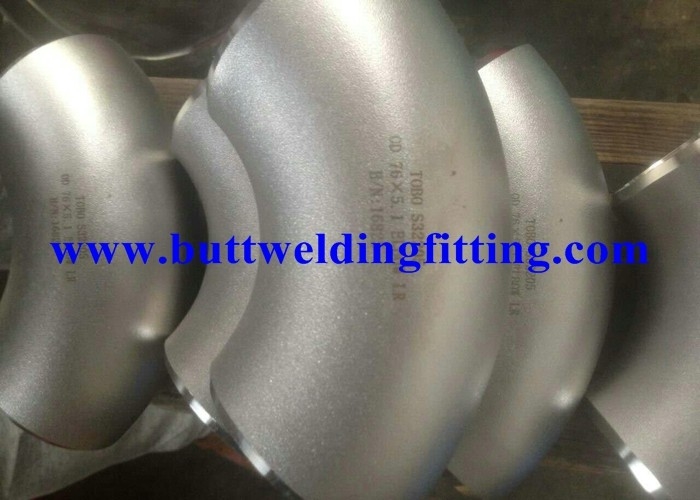

ASTM A815 UNS31803 GR2205 Duplex Stainless Steel 90 Degree Elbow Welded DN600 SCH40S



Quick Details

Material:



2205 Duplex Stainless Steel
 Technics:
Forged
 Type:
90deg Duplex Stainless Steel Elbow
Place of Origin:
Shanghai, China (Mainland)
 Head Code:
Round
 Brand Name:
TOBO
Connection:
Welding
 Shape:
Equal





Packaging & Delivery



Packaging Details: plywood case or fumigation woodern case
Delivery Detail: 2 - 10 days



Specifications

ASTM A815 UNS31803 GR2205 Duplex Stainless Steel Welded Elbow 90deg LR DN600 SCH40S

1) Size: 1/2" - 24" (DN15 - DN600)

2) THK: SCH5S - SCH160 XXS
3) Material: Duplex 2205/S31803, 904L, 317L, 347H, 316L, 321, 304,etc

UNS31803 GR2205 Duplex Stainless Steel Welded Elbows are mainly used for

connecting two pipes or tubes, allowing a change of direction.

We can provide short radius elbows and long radius elbows.

Usually, pipe elbows are made of duplex stainless steels, stainless steels, alloy steels, and more.

Type 90deg Duplex Stainless Steel Elbow
Size Seamless elbow:1/2"~24" DN15~DN600
Welded Elbow: 1/2”~100" DN15~DN2500
Wall thickness sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s
Standards ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc
Material Duplex Stainless Steel: ASTM A815
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low-temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance: ASTM/ASME A860 WPHY 42-46-52-60-65-70
Surface treatment Transparent oil, rust-proof black oil or hot galvanized
Applications Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

Complete-products

stainless steel pipe fittings
Size: 1/2"-48"
Material: A234-WPB,A420-WPL6,A234-WP12,A234-WP11,A234-WP5

butt welded stainless steel cap
1. Nominal diameter: DN15 ~ DN1400
2. Wall thickness: 1.6 ~ 12mm
3. Manufacture standard: ASME/ANSI B16.9, B16.28, DIN2605, GB2459(Seamless), GB. T13401(Welded)
4. Material: 304,304L,316,316L,321,A234WPB,A105
5. Application:Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

pipe elbows

1, Products: 90 Deg. LR Elbow, 90 Deg. SR Elbows, 180 Deg. LR Elbow,

180 Deg. SR Elbow, 45 Deg. LR Elbow, 45 Deg. SR Elbow
2, Thickness: SCH20, SGP, STD, SCH40, XS, SCH80, SCH160, XXS

3, Dimension: 1/2" to 72"
4, Material: carbon steel, alloy steel, stainless steel
5, Standard:
I ASTM A234 MSS SP-75 ASME B16.9 ASME 16.28
II DIN 2605 DIN 2615 DIN 2616 DIN 2617
III JIS B2311 JIS B2312 JIS B2313

If any inquiry, please feel free to contact by email: sales@tobo-group.com

ASTM A815 UNS31803 GR2205 Duplex Stainless Steel 90 Degree Elbow Welded DN600 SCH40SASTM A815 UNS31803 GR2205 Duplex Stainless Steel 90 Degree Elbow Welded DN600 SCH40S
