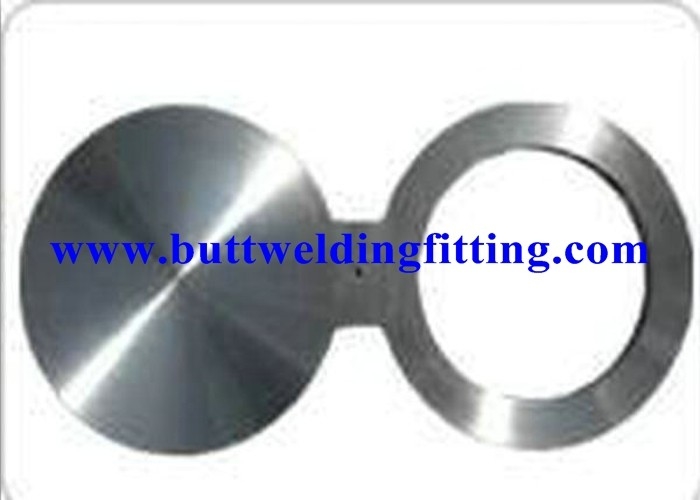

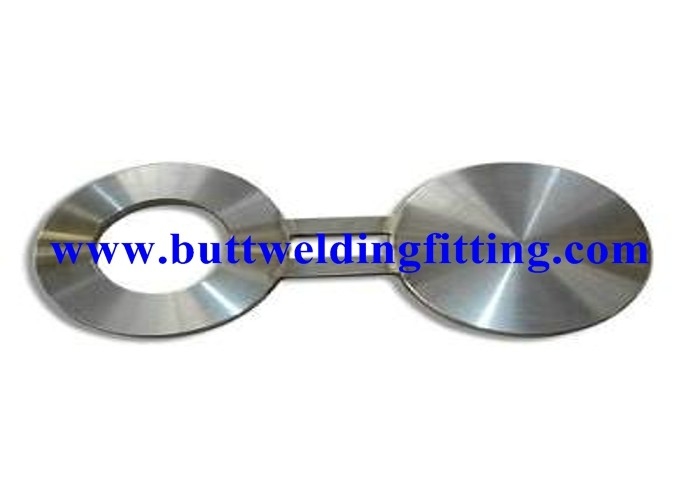

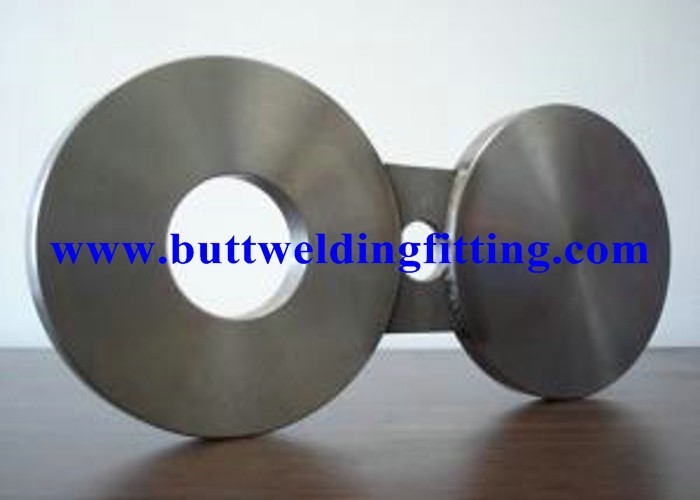

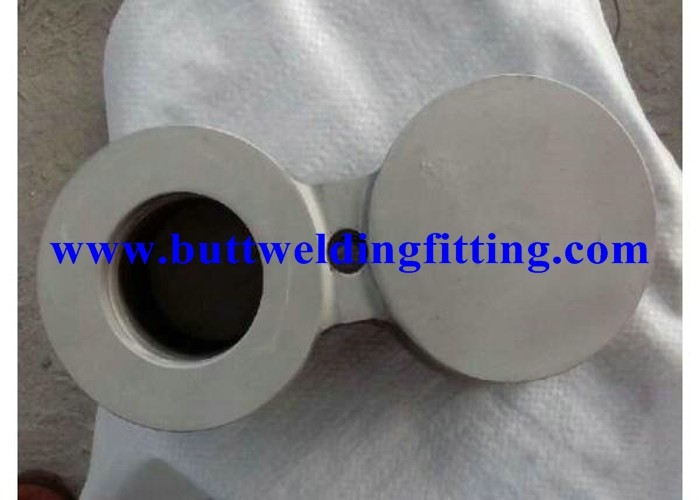

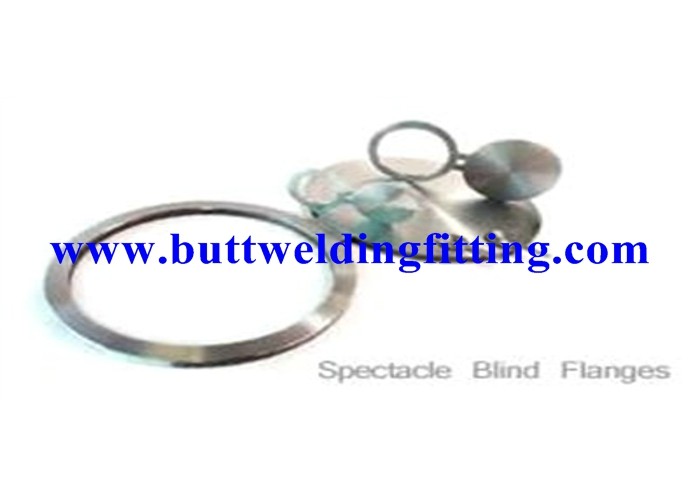

A182 ANSI B16.48 UNS 32750 / F53 Spectacle Blind Flange 1 Inch CL150 FF
| Place of Origin | China |
|---|---|
| Brand Name | TOBO |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | A182 ANSI B16.48 F53 |
| Minimum Order Quantity | 1pc |
| Price | US $ 10 - 100 / Kilogram |
| Packaging Details | Seaworthy wooden cases or pallets tied by steel band or as per client's requirements |
| Delivery Time | 30 days After Receiving the 30% Prepayment by T/T or LC |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50 Metric Ton/Metric Tons per Month |
Product Details
| Type | Spectacle Blind Flange | Size | 1/2''~48'' |
|---|---|---|---|
| Class Rating | 150#~2500# | Facing | RF(raised Face);FF(flat Face);RTJ(ring Type Joint);RJ(ring Joint Face) TG(tongue And Groove Face);MFM(male And Female Face) |
| Standard | ASME B16.5, ANSI, Etc | Material | 2507 (UNS 32750/F53), Etc |
| Technics | Forged | Delivery Time | 10-100 Days Depending On Quantity |
| Payment Terms | L/C,T/T | Shipment | FOB Tianjin/Shanghai, CFR, CIF Etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc | Remarks | Other Materials And Drawings Are Available. |
| Highlight | forged fittings and flanges,butt weld flanges |
||
Product Description
A182 ANSI B16.48 UNS 32750 / F53 Spectacle Blind Flange 1 Inch CL150 FF
Quick Details
1 .Size: 1" (DN25)
2.Material: 2507 (UNS 32750/F53), etc
3.Place of Origin: Shanghai, China (Mainland)
4.Brand Name: TOBO
5.Standard or Nonstandard: Standard
6.Technics: Forged
7.Standard: ASME B16.5, ANSI, etc
8.Type: F53 Spectacle Blind Flange
Packaging & Delivery
| Packaging Details: | Seaworthy plywood case or as customer requests |
|---|---|
| Delivery Detail: | 2 - 10 days after receiving the deposit |
Specifications
A182 ANSI B16.48 F53 Spectacle Blind Flange
1. Material: 2507 (UNS 32750/F53), etc
2. Size: 1" (DN25)
3. Standard: ANSI B16.48, etc
4. Pressure: 150#, 300#, 600#, etc
About UNS S32750 F53 Super Duplex Stainless Steel 2507
2507 is the most common Super Duplex Stainless Steel which contains 24% chromium
and a minimum of 3% molybdenum. Please refer to the chemical composition and mechanic
properties tables below.
Chemical Composition Of F53 UNS 32750 GR2507 Super Duplex Stainless Steel
|
GRADE
|
C≤
|
Mn≤
|
Si≤
|
S≤
|
P≤
|
Cr≤
|
Ni
|
Mo
|
Cu≤
|
N
|
|
S32750
(2507)
00Cr25Ni7Mo4N
|
0.03
|
1.20
|
0.8
|
0.020
|
0.035
|
24.0/26.0
|
6.0/8.0
|
3.0/5.0
|
0.50
|
0.24/0.32
|
| Type | F53 Spectacle Blind Flange |
| Size | 1" (DN25) |
| Standards | SO, WN, SW, TH, LJ, BL, PL, etc |
| Material |
Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2,etc Stainless Steel: ASTM A182 F304/304L/316/316L, etc Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc. Duplex stainless steel: ASTM A182 F51, etc Super Duplex Stainless Steel: S32750/2507/F53/F55, UNS32760, etc Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800, Hastelloy C276, Hastelloy C276, Hastelloy B1/B2/B3, Alloy 20, etc
Cu-Ni: 90/10,70/30, etc |
| Applications | Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc |
About: A182 ANSI B16.48 F53 Spectacle Blind Flange
A182 F53 ANSI B16.48 Spectacle Blind Flange allows you to be absolutely sure that an item of equipment is properly and securely blanked off with no possibility of any flow or leakage through a valve during maintenance.
The flow can be diverted to other items of equipment but not just bypassed around the blank as this would compromise the ety function of the Spectacle Blind Flange.
Applications Of A182 ANSI B16.48 F53 Spectacle Blind Flange:
1. petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
6. Oil and gas industry
Other Features:
1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant
2) We also produce flange with special specifications according to customers’ requirements;
Packing
1) Packing Method:
Normal packing: Plastic film or bubble paper wrapped, endings protect by caps,
then into wooden case or load on fumigation plywood pallet.
Custom product: As per your request.
2) Shipping:
By Sea, By Air, By Train or River-and-Sea Coordinated Transport, according to your request.
Where can we find the high quality A182 ANSI B16.48 F53 Spectacle Blind Flange 1 Inch CL150 FF.
