1-48 inch Stainless Steel Elbow 904L / A403 WP304 LR / SR R5 Bend

  • 1-48 inch Stainless Steel Elbow 904L / A403 WP304 LR / SR R5 Bend
  • 1-48 inch Stainless Steel Elbow 904L / A403 WP304 LR / SR R5 Bend
  • 1-48 inch Stainless Steel Elbow 904L / A403 WP304 LR / SR R5 Bend
  • 1-48 inch Stainless Steel Elbow 904L / A403 WP304 LR / SR R5 Bend
  • 1-48 inch Stainless Steel Elbow 904L / A403 WP304 LR / SR R5 Bend
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Elbow
Minimum Order Quantity 1PC
Price USD Depending on quantity
Packaging Details PLY-WOODEN CASE OR PALLET
Delivery Time 10-100 days depending on quantity
Payment Terms L/C, T/T, Western Union,
Supply Ability 3,0000pcs per month
Product Details
Size 1-48 Inch DN 15-1200
Material Grrade WP304 Standard DIN,EN,ASTM,BS,JIS,GB,etc.
Type Seamless Or Weld
Highlight

Pipe Fittings Elbow

,

Butt Welding Elbow
Leave a Message
Product Description

Stainless Steel Elbow 904L / A403 WP304 Stainless steel elbow LR / SR R5 Bend.

1.Stainless steel elbow
2.sch5s-schxxs
3.ISO9001,ISO9000
4.Market:America,Africa,Middle East,Southeast of Asia
product: stainless steel ansi b 16.9 a403 wp 904l elbow -BG BEST

Products : Elbow bend equal ,/reduce tee,concentric/eccentric reducer , cap,flange
Size: Seamless(SMLS) Elbows : 1/2"-24" ,DN15-DN600
Butt Welded Elbows (seam) :24”-96",DN600-DN1800
Type: LR 30,45,60,90,180 degree SR 30,45,60,90,180 degree
1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
Thickness: SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standard: ASME,ANSI B16.9;


Material ASTM

Carbon steel:ASTM A234WPB,,A234WPC,A420WPL6,A420WPL3
MSS SP75 WPHY42/46/52/56/60/65/70
Stainless steel:ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, ect.
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5,A420WPL6,
DIN Carbon steel:St37.0,St35.8,St45.8
Stainless steel:1.4301,1.4306,1.4401,1.4571
Alloy steel:1.7335,1.7380,1.0488(1.0566)
JIS Carbon steel:PG370,PT410
Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321
Alloy steel:PA22,PA23,PA24,PA25,PL380
GB

10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,
12CrMo, 12CrMoG, 12Cr1Mo
Surface treatment Transparent oil, rust-proof black oil or hot galvanized
Packing In wooded cases or pallets, or as for clients' requirements
Applications Petroleum, chemical, machinery, boiler,electric power, shipbuilding, papermaking, construction, etc
Certification API CE and ISO 9001:2008
Third part inspect BV,SGS,etc accept
Delivery time 7 after receipt of advanced payment ,have stock ~
special design as your drawing

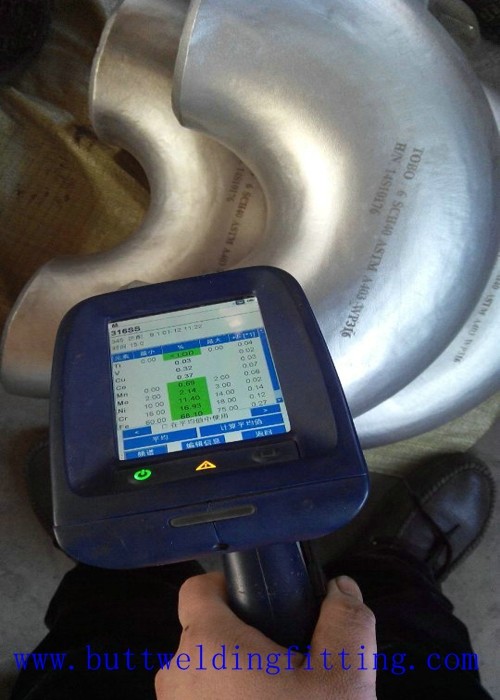

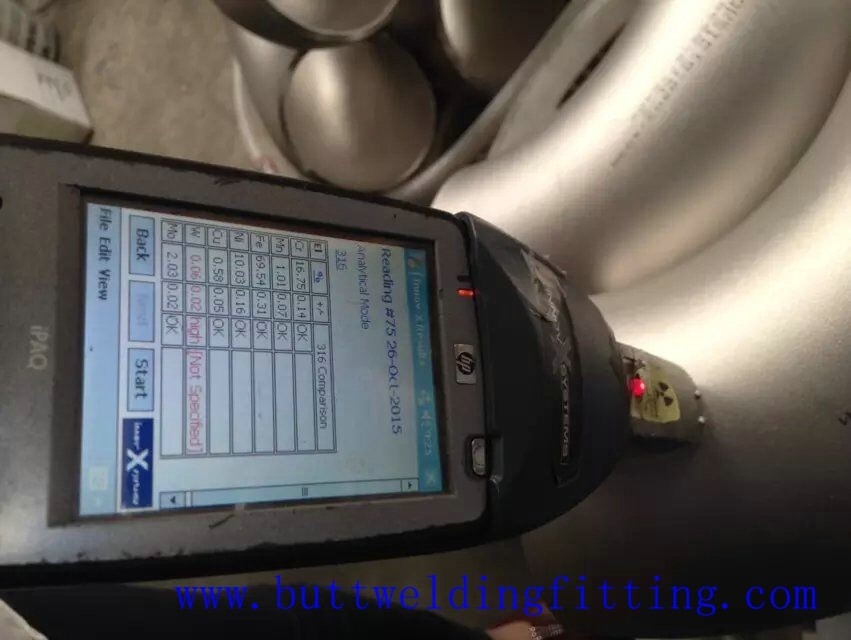

test Direct-reading Spectrograph,Hydrostatic testing machine,
X-ray detector,Ultrasonic flaw detector,Magnetic particle
detector,etc
equipment Press machine ,Bending machine,Pushing Machine,electric bevelling machine Sand-blasting machine,etc


Description:


1. Product Item No.: 001fittings-Cosco Steel

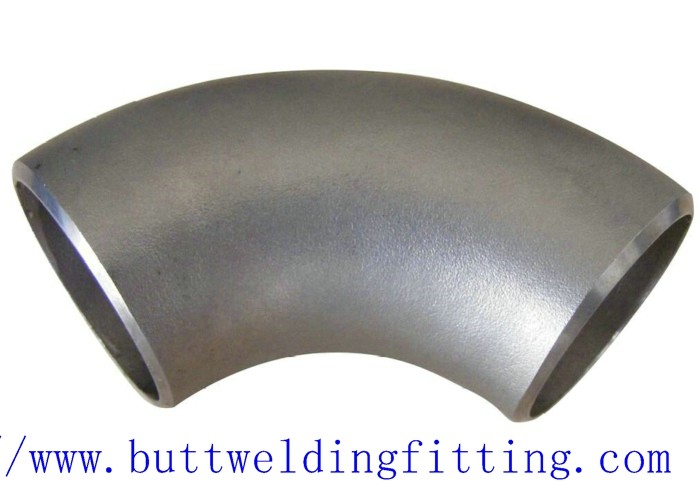

2. Product name: 2205 Stainless Steel 90D LR Elbow

3. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size

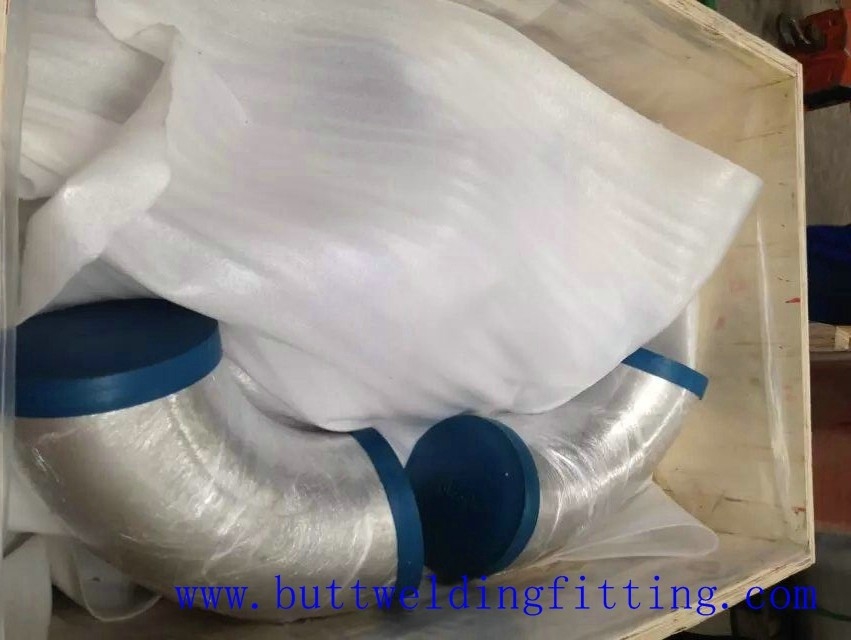

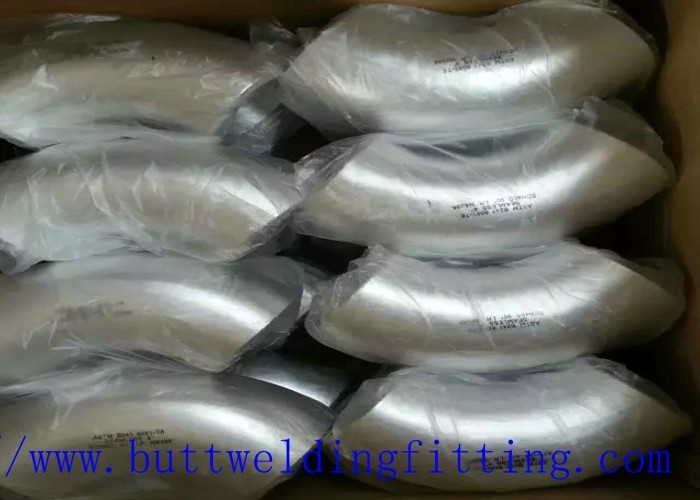

4. Packing: Wooden box or wooden pallet.

5. H.S Code: 73072300

6. Material: Stainless Steel: 304(CF8,1.4301),316 (CF8M,1.4408),2205 etc Alloy Steel: 12Cr1Mov, 10CrMo910, 15CrMo, A335, P22 etc.

7. Standard:
China Standard GB12459-90 etc
U.S.A Standard ASTM A403,ANSI B16.9,ANSI B16.28,ANSI B16.11 etc
Germany Standard KIN2605, DIN2606, DIN2615 etc
Japanese Standard JIS B2311, JIS B2312, JIS B2313 etc.


Applications:

We,this type pipe fittings be widely used in kinds of industries:

a. Paper Making,Waste-water Treatment

b. Chemical Industry and Natural Gas

c. Shipbuilding

d. Electrical equipment

e. Nuclear Energy

f. Construction

g. Petroleum


Specification


Nominal Pipe Size (NPS) Outside Diameter Center-to-Center,O Back-to-Face,K
mm Inch
1/2 21.3 0.84 76 48
3/4 26.7 1.05 76 51
1 33.4 1.32 76 56
11/4 42.2 1.66 95 70
11/2 48.3 1.90 114 83
2 60.3 2.38 152 106
21/2 73.0 2.88 190 132
3 88.9 3.50 229 159
31/2 101.6 4.00 267 184
4 114.3 4.50 305 210
5 141.3 5.56 381 262
6 168.3 6.62 457 313
8 219.1 8.62 610 414
10 273.0 10.75 762 518
12 232.8 12.75 914 619
14 355.6 14.00 1067 711
16 406.4 16.00 1219 813
18 457.0 18.00 1372 914
20 508.0 20.00 1524 1016
22 555.9 22.00 1676 1118
24 610.0 24.00 1829 1219



Our advantage


i. Ultrasonic equipment for thickness inspection

ii. Ultrasonic flaw detecting equipment

iii. Universal material testing equipment

iv. Carbon and sulfur analyzer
