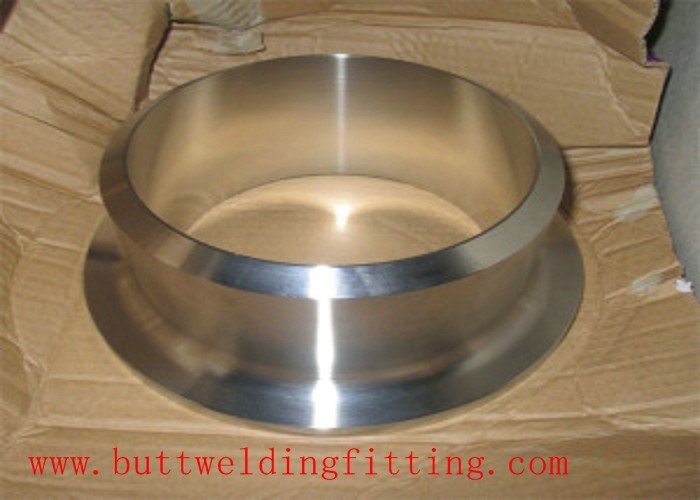

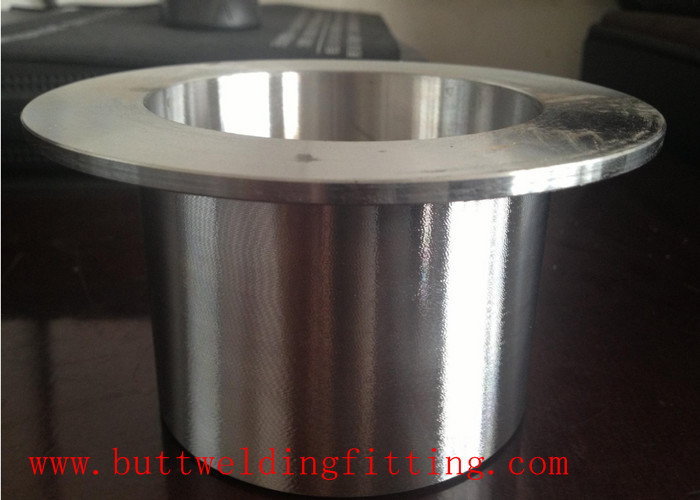

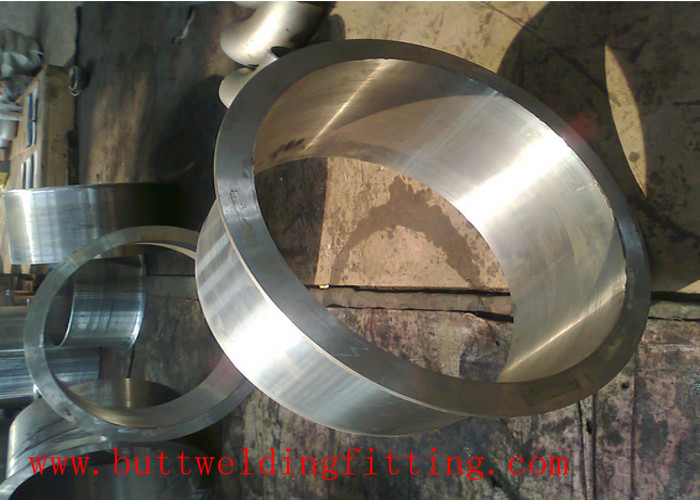

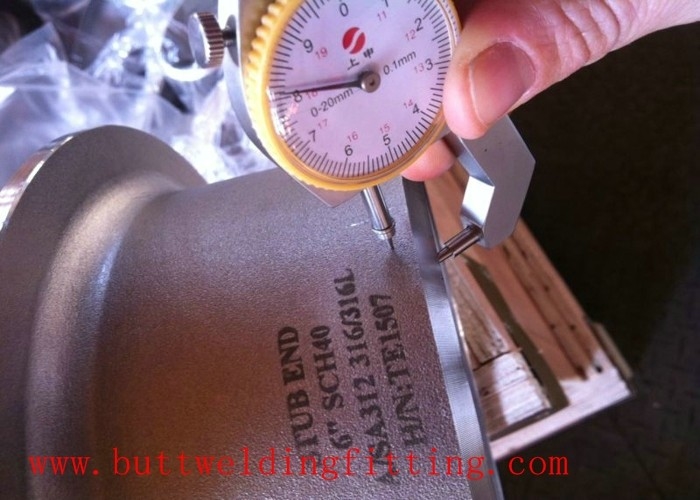

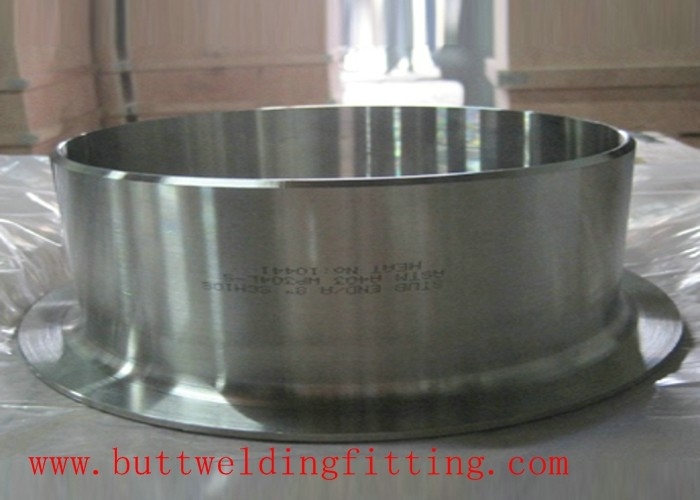

Pressing Stainless Steel Stub Ends with 1/2" - 48" Outside Diameter A403-316L

  • Pressing Stainless Steel Stub Ends with 1/2" - 48" Outside Diameter A403-316L
  • Pressing Stainless Steel Stub Ends with 1/2" - 48" Outside Diameter A403-316L
  • Pressing Stainless Steel Stub Ends with 1/2" - 48" Outside Diameter A403-316L
  • Pressing Stainless Steel Stub Ends with 1/2" - 48" Outside Diameter A403-316L
  • Pressing Stainless Steel Stub Ends with 1/2" - 48" Outside Diameter A403-316L
Place of Origin China,
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number A403-316L
Minimum Order Quantity 100KGS
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time 15days->
Payment Terms T/T, L/C, Western Union,
Supply Ability 1500 tons per month
Product Details
Standard A403-316L Color White, Silver
Outside Diameter 1/2"-- 48" Type Stub End
Highlight

Lap Joint Stub End

,

Stub End Fittings
Leave a Message
Product Description

12 each Stub End in A403-316L S.S. 4" Sch-10s as per MSS SP43

Quick Details

Material:A403 WP 304/304L,321,316/316L,317L,etcTechnics:PressingType:Stub end
Place of Origin:Shanghai, China (Mainland)Model Number:n/aBrand Name:TOBO
Connection:WeldingShape:OtherHead Code:Round
SHAPE::Long Pattern&Short Pattern

Packaging & Delivery

Packaging Details:Plywood Pallets/ Wooden Case Or As Per Your Specification.
Delivery Detail:30 days

BUTT-WELDING PIPE FITTINGS DETAILS
MODELStub end
MATERIAL304/304L,321,316/316L,317L,etc
STANDARDASME/ANSI B16.9 , MSS SP-43, DIN,JPI,etc.
WALL THICKNESSSCH5S~XXS
SIZE1/2"-24"
CONNECTIONButt Welding
SHAPELong Pattern&Short Pattern
CERTIFICATEISO9001,PED.
APPLICATIONPetroleum, gas, chemical, shipbuilding, metallurgy, construction, etc.
PACKAGEPlywood Pallets/ Wooden Case Or As Per Your Specification.
DELIVERY DETAILSAccording to the quantities and specifications of each order.
Normal delivery time is from 30 to 45 days after receiving the deposit.
Customers’ drawings or designs are available.


Material:
Carbon Steel:ASTM A234 WPB /WPC, A420 WPL3/ WPL6 / WPL9,A/SA860 WPHY 42/ 46 / 52 / 56 / 60 /65/70 MSS-SP-75
Alloy Steel : ASTM A234 WP1/ WP5 / WP9 / WP11 /WP12 /WP22/WP91/etc.
Stainless Steel:ASTM A403 WP304/304L/316/316L/317/321/310/347/347H,904 etc.



Standard:
ASTM A234, MSS SP-75 ,ASME B16.9 ,ASME 16.28,DIN 2605, DIN 2615 ,DIN 2616, DIN 2617 ,JIS B2311 ,JIS B2312 ,JIS B2313,etc.



Packaging: Wooden Cases, wooden or steel pallet plastic bag or as per customers requirement.



Applications range:petroleum, smelting, foodstuff, power, papermaking, chemical, medical equipment, aviation, boiler heat, exchanger, gas metallurgy, shipbuilding, construction, etc.



Surface treatment: Transparent oil, rust-proof black oil or hot galvanized or as requested.


Austenitic Stainless SteelDuplex SteelSuper Stainless Steel
ASTM SERIES
A403:
WP304, WP304H, WP304L, WP304N
WP309, WP310S, WP316, WP316H, WP316L, WP316N
WP317, WP317L, WP321, WP321H, WP347, WP347H
WPNIC, WPNIC11, WP348, WP348H, WP700
WP304LN, WP316LN, WP347LN, WP6XN, WP20CB
WP1925, WP1925N, WPS31725, WPS31726, WPS31727
WPS31730, WPS32053, WPS33228, WPS34565, WPS38815
304/304L, 316/316L,317/317L, 321/321H		A815:
WPS31803(UNS S31803)
WPS32750(UNS S32750)
WPS32760(UNS S32760)
WPS32205(UNS S32205),		A403:
N08904(904L)
S31254(254SMO)
EN/DIN SERIES
1.4301(X5CrNi1810), 1.4306(X2CrNi1911),
1.4301H(X5CrNBi1810H), 1.4311(X2CrNiN1810)
1.4845(X12CrNi2521), 1.4401(X5CrNiMo17122)
1.4404(X2CrNiMo171321), 1.4919(X6CrNiMo1713)
1.4406(X2CrNiMoN17122), 1.4571(X6CrNiMoTi17122)
1.4438(X2CrNIMo18164), 1.4449(X5CrNiMo1713)
1.4541(X6CrNiTi1810), 1.4541H(X6CrNiTi1810H)
1.4550(X6CrNiNb1810), 1.4961(X8CrNiNb16-13)		1.4462(X2CrNiMoN22-5-3),
1.4410(X2CrNiMoN25-7-4)
1.4501(X2CrNiMoCuWN25-7-4)		1.4539(X2NiCrMoCu25-20-5)
1.4547(X2NiCrMoCu20-18-7)
ASTM UNS SERIES
A403 S30400, S30409, S30403, S30451, S30900, S31008, S31600, S31609, S31603, S31651, S31700, S31703, S32100
S32109, S34700, S34709, N08800, N08811, N08700, S30453, S31651, S34751, N08367, N08020, N08925, N08925N


Why choose us!
1. We are the specialized supplier of stainless steel materials, can provide the best price!
2. We have more than 30 years experience in exporting products to worldwide countries, can provide the high quality products!
3.  We have three thousand tons of stock in warehouses with abundant capital. Furthermore, we offer charge sales, credit and 7-day 24-hour services.
4. Wide excellent experiences with after-sale service.
5. Every process will be checked by responsible QC which insures every product's quality.
6. Professional packing teams which keep every packing ely.
7. Trial order can be done in very short time.
8. Samples can be provided as your requirements.

Pressing Stainless Steel Stub Ends with 1/2" - 48" Outside Diameter A403-316LPressing Stainless Steel Stub Ends with 1/2" - 48" Outside Diameter A403-316L
Pressing Stainless Steel Stub Ends with 1/2" - 48" Outside Diameter A403-316L
