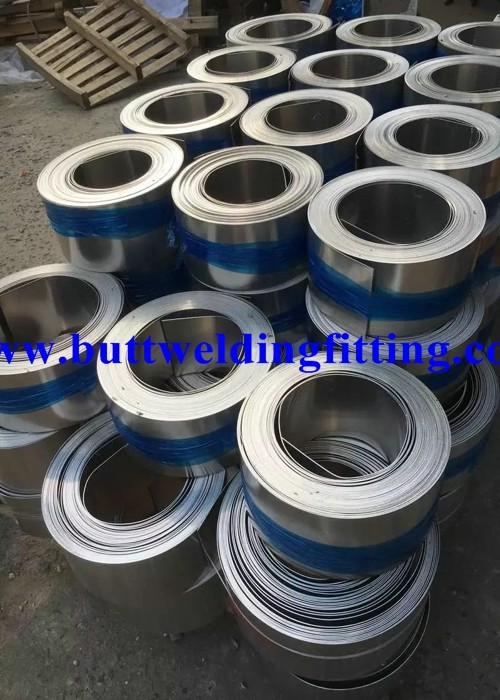

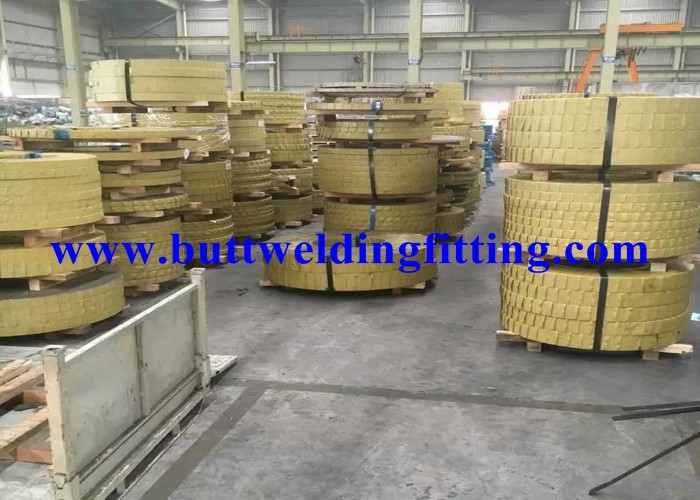

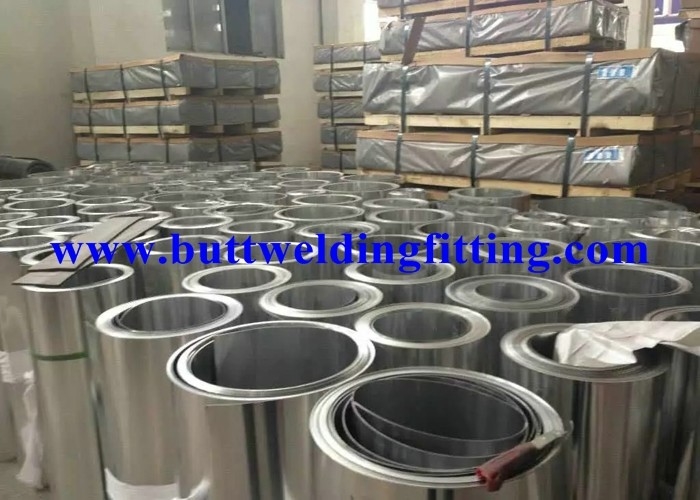

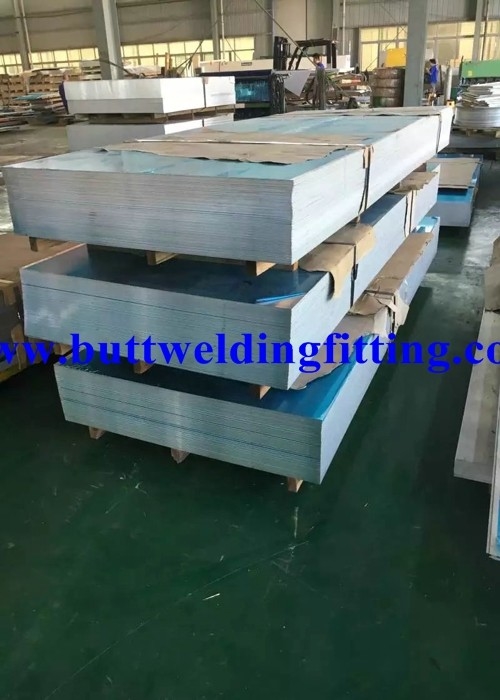

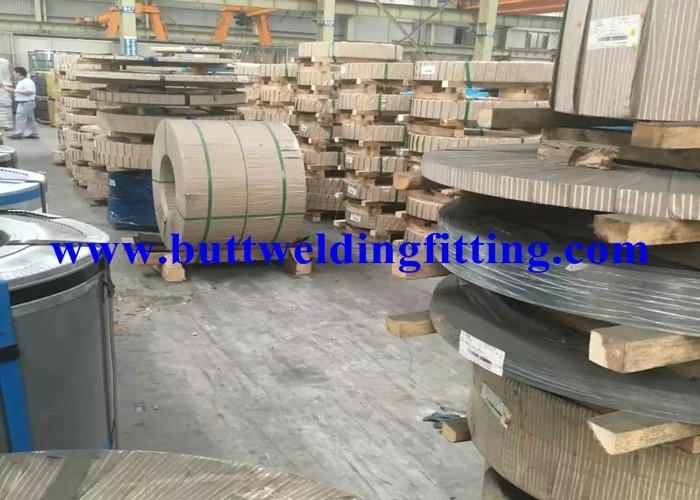

6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006

6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006
6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006 6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006 6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006 6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006 6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006 6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006 6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006 6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006 6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006 6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006 6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006 6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006 6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006 6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006 6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006
Basic Information
Place of Origin: China/Japan/Germany
Brand Name: TOBO/TPCO/TISCO/VALIN/METAL
Certification: ISO/PED/TUV/SGS/LR/BV
Model Number: 6061
Minimum Order Quantity: 1 Ton/Tons neogotiationTrial Order
Price: US $ 1,000 - 3,000 / Ton
Packaging Details: PLY-WOODEN CASE OR PALLET
Delivery Time: 10-100 days depending on quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 Ton/Tons per Week neogotiation
Get Best Price Contact Now
Product Name: Aluminum Plate Product Type: Aluminum Coil
Standard: JIS, AISI, ASTM, GB, DIN Grade: 5000 Series
Thickness: 0.3-350MM Width: 1000mm-3000mm
Application: Marine, Boat Application Length: As Required
Surface: 2B,BA,No1,No4 Quality Assurance: Mill Test Certificate Is Supplied With Shipment
Highlight:

Stainless Steel Coils

,

Stainless Steel Flat Sheets

High Quality Aluminum Sheet / plate 6061 Heat Exchanger Material

Quick Details

Grade:
6061
 Temper:
O-H112
 Type:
Plate, Plate
Application:
Heat exchanger material and industrial fields
 Thickness:
0.05 to 4 mm, 0.05 to 4 mm
 Width:
450 to 1300 mm, 450 to 1300 mm
Surface Treatment:
Coated
 Alloy Or Not:
Is Alloy
 Place of Origin:
Shanghai, China (Mainland)
Brand Name:
METALLI
 Model Number:
AASP 1005
 Length:
500 to 6000 mm
Alloy No:
6061
 Packing:
Best suitable packing way
 Surface:
Mill finish
Standard:
GB/T3880.1-2006
 Certification:
ISO9001:2008 SGS
 Max weight per package:
2 tons

Packaging & Delivery

Packaging Details: To be packed in wooden crate with polythene cover for water protection
Delivery Detail: Shipped in 25 days after payment

high quality aluminum sheet plate 6061

aluminum plate 6061

aluminum sheet

aluminum 6061 t6

Product Description
1. Aluminum alloy number
No. Aluminum Alloy Number
1.1 6061
2. Product size and tolerance
No. Specification Size Tolerance
2.1 Length (mm) 500-6000 ±2
2.2 Width (mm) 450-1300 ±1
2.3 Thickness (mm) 0.05-4 min ±0.005,max ±0.08
3. Chemical composition for some typical alloys
No. Internal
Alloy Number		 AA number Chemical Composition (%)
Si Fe Cu Mn Mg Zn Ti Zr Bi Others Al
Each Total
3.1 1060 1060 0.25 0.35 0.05 0.03 0.03 0.05 0.03     0.03   99.6
3.2 1070 1070 0.2 0.25 0.04 0.03 0.03 0.04 0.03     0.03   99.7
3.3 1100 1100 0.95 0.05-0.2 0.05     0.1     0.05 0.15 RE
3.4 3003 3003 0.6 0.7 0.05-0.2 1-1.5 0.05 0.1       0.05 0.15 RE
3.5 3005 3005 0.6 0.7 0.3 1.0-1.5 0.2-0.6 0.25   Cr 0.1   0.05 0.15 RE
3.6 4004 4004 9.0-10.5 0.8 0.25 0.1 1.0-2.0 0.2       0.05 0.15 RE
3.7 4045 4045 9.0-11.0 0.8 0.3 0.05 0.05 0.1       0.05 0.15 RE
3.8 4047 4047 11.0-13.0 0.8 0.3 0.15 0.05 0.2       0.05 0.15 RE
3.9 4104 4104 9.0-10.5 0.8 0.25 0.1 1.0-2.0 0.2     0.05-0.2 0.05 0.15 RE
3.10 4343 4343 6.8-8.2 0.8 0.25 0.1 0.05 0.2       0.05 0.15 RE
3.11 4343A 4343A 6.8-8.2 0.6 0.1 0.1 0.02 0.1       0.05 0.15 RE
3.12 6060 6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 0.15 0.1 Cr 0.05   0.05 0.15 RE
3.13 6061 6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.25 0.15 Cr 0.04-0.35   0.05 0.5 RE
3.14 6063 6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 Cr 0.1   0.05 0.15 RE
3.15 6A02 6A02 0.5-1.2 0.5 0.2-0.6 0.1-0.35 0.45-0.9 0.2 0.15     0.05 0.15 RE
3.16 7072 7072 0.7 0.1 0.1 0.1 0.1 0.8-1.3       0.05 0.15 RE
3.17 8011 8011 0.5-0.9 0.6-1.0 0.1 0.2 0.05 0.1 0.08 Cr 0.05   0.05 0.15 RE
3.18 4343+1%Zn 4343+1%Zn 9.0-11.0 0.8 0.25 0.1 0.05 0.7-1.3       0.05 0.15 RE
3.19 4045+1%Zn 4045+1%Zn 9.0-11.0 0.8 0.3 0.05 0.05 1.7-1.3       0.05 0.15 RE
3.20 4A13 4343Mod 8.9 0.6 0.2 0.1 0.08-0.2 0.2 0.15     0.05 0.15 RE
4. Mechanical properties for some typical alloys
No. Alloy number Thick.
(mm)		 Temper Yield Strength
Rp0.2(Mpa).
Min		 Tensile Strength
Rm (Mpa)		 Elongation
(%)
A50,Min		 Homogenization treatment Typical usage
4.1 3003 0.08-0.15 O 35 95-135 8 N Fins
4.2 3003 0.16-0.35 O 35 95-135 10 N Fins
4.3 3003 0.15-0.3 H12 90 120-175 0.5 N Fins
4.4 3003 0.06-0.08 H14 125 145-185 0.5 N Fins
4.5 3003 0.081-0.3 H14 125 145-200 0.5 N Fins
4.6 3003 0.06-0.16 H16 160 165-205 0.5 N Fins
4.7 3003 0.2-0.3 H24 125 145-205 6 N Fins
4.8 3003-1 0.35-3.0 O 35 95-135 20 Y Plate
4.9 3003-1 0.40-3.0 H14 125 145-185 3 Y Plate
4.10 3003-1 1.0-3.0 H24 125 145-185 10 Y Plate
4.11 6A02 0.8-4.5 O ≤85 ≤150 20 Y Vacuum plate
4.12 6060 0.8-4.5 O ≤85 ≤150 20 Y Vacuum plate
4.13 6063 0.8-4.5 O ≤85 ≤150 20 Y Vacuum plate
4.14 4343 0.07-3.0 O 35 95-150 8 N Sheet for brazing
4.15 4343 0.07-3.0 H14 120 140-200 0.5 N Sheet for brazing
4.16 4045 0.07-3.0 O 35 95-150 8 N Sheet for brazing
4.17 4045 0.07-3.0 H14 120 140-200 0.5 N Sheet for brazing
4.18 4104 0.07-3.0 O 35 95-150 8 N Sheet for brazing
4.19 4104 0.07-3.0 H14 120 140-200 0.5 N Sheet for brazing
4.20 4A13 0.07-3.0 O 35 95-150 8 N Sheet for brazing
4.21 4A13 0.07-3.0 H14 120 140-200 0.5 N Sheet for brazing
4.22 4047 0.07-3.0 O 35 95-150 8 N Sheet for brazing
4.23 4047 0.07-3.0 H14 120 140-200 0.5 N Sheet for brazing
4.24 3003 0.25-0.35 H24 130 155-205 6 N Fins for air cooler
4.25 3003 0.1-0.2 H14 125 145-185 1 N Fins
4.26 3003 0.1-0.3 O 35 95-135 10 N Fins
4.27 3003 0.3-0.8 H14 125 145-185 2 Y Plate
4.28 3003 0.8-2.5 H14 125 145-185 4 Y Plate
4.29 3003 0.5-1.6 O 35 145-185 20 Y Plate
4.30 3003-1 0.3-1.8 O 35 95-135 20 Y Band
4.31 3003-1 0.5-4.0 O 35 95-135 25 Y Plate
4.32 3005 Mod 0.25-0.6 H24 150 185-235 8 N Long life tube
4.33 6060 0.8-4.5 O ≤85 ≤150 20 Y Vacuum plate
4.34 6063 0.8-4.5 O ≤85 ≤150 20 Y Vacuum plate
4.35 3005 0.8-4.5 O 40 80-120 20 Y Vacuum plate
4.36 3005 0.6-4.5 H22 110 145-195 15 Y Vacuum plate
4.37 1100 0.2-0.3 H24 90 115-155 3 N Fins for air cooler
4.38 6A02 1.0-5.0 O ≤85 ≤150 20 Y/N Plate
5. Surface finish and other properties
No. Item Description
5.1 Surface finish a. The material shall bright finish; b. The material shall be from pinholes and tearing
5.2 Diagonal Variation The sheets shall not have any diagonal outs beyond 0.5mm
5.3 Bend test There shall be no sign of cracking or peeling off effect while longitudinal or transverse or close bends of 180 or angular.



Packaging & Shipping



6. Packing,Shipping and others
No. Item Description
6.1 Packing To be packed in wooden crate with polythene cover for water protection
6.2 Marking Each box to be legibly marked with the name of the manufacturer or supplier, the alloy designation of material,condition,dimensions and weight
6.3 Shipping tools Ship goods by van to departune port then by sea to desitination port
6.4 Quantity variation ±10% variation with order quantity shall be acceptable

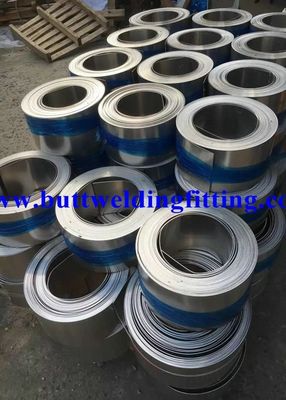

6061 5000 Series Stainless Steel Plate for Heat Exchanger Material GB/T3880.1-2006 0
