ASME B16.9 Alloy Steel Butt Weld Fittings ASTM A234 WP9 SCH40 90 Degree LR SMLS ELBOW

  • ASME B16.9 Alloy Steel Butt Weld Fittings ASTM A234 WP9 SCH40 90 Degree LR SMLS ELBOW
  • ASME B16.9 Alloy Steel Butt Weld Fittings ASTM A234 WP9 SCH40 90 Degree LR SMLS ELBOW
  • ASME B16.9 Alloy Steel Butt Weld Fittings ASTM A234 WP9 SCH40 90 Degree LR SMLS ELBOW
  • ASME B16.9 Alloy Steel Butt Weld Fittings ASTM A234 WP9 SCH40 90 Degree LR SMLS ELBOW
Place of Origin CHINA
Brand Name TOBO
Certification PED, ISO9001:2008
Model Number ASTM A234 WP9
Minimum Order Quantity 3PCS
Price Negotiation
Packaging Details Ply-Wooden Cases.
Delivery Time Sand in rolling, Sand Blasting, Annealing & Pickling
Payment Terms 30%T/T in advance, the balance paid before the shipment.
Supply Ability More than 20 containers per month
Product Details
Material Carbon Steel Standard ANSI/ASME,DIN,EN,JIS,GOST Etc
Connection Welding Technique Forged
Product Name Carbon Steel Pipe Fitting Product Type Elbow, Long And Short
Head Code Round
Highlight

butt welded pipe fittings

,

industrial pipe fittings
Leave a Message
Product Description

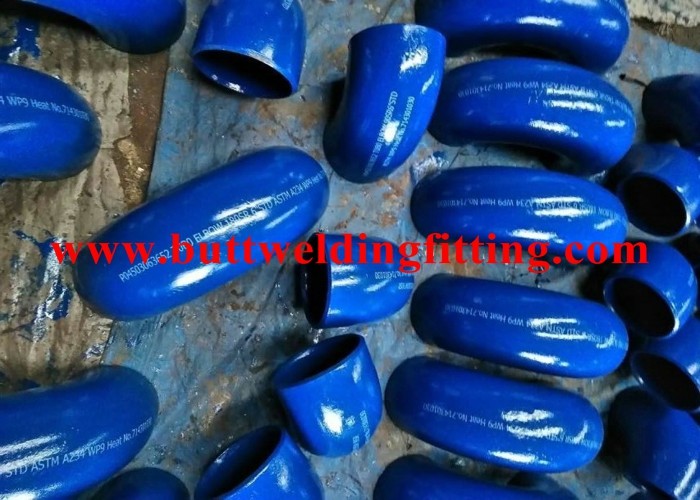

ASME B16.9 Alloy Steel ASTM A234 WP9 SCH40 90Degree LR SMLS ELBOW





Specifications

Material:

Carbon Steel

Technics:

intermediate frequency

Type:

Elbow

Place of Origin:

China (Mainland)

Model Number:

NPS 1/2"-120"(DN15-3000)

Brand Name:

TOBO

Connection:

Welding

Shape:

Equal

Head Code:

ROUND

oil:

rust-proof

galvenzicing:

hot/cold
Packaging & Delivery

Packaging Details:

wooden cases/palets/nylon bags/according to the customers' requirements.

Delivery Detail:

within 20 days usually/depending on quantity

Specifications

1) Type: A234 WPB STD 90D SMLS ELBOW B16.9
2) Size: NPS 1/2"-120"(DN15-3000)
3) Varieties: SGP, STD, SCH40,

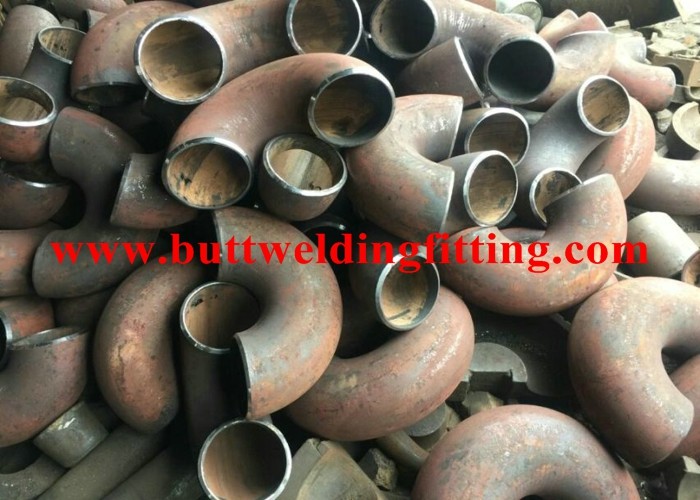

PRODUCT TYPE A234 WPB STD 90D SMLS ELBOW B16.9 SR,180 degree sr elbow,short radious elbow(SR elbow),seamless elbow, butt welding elbow, steel elbow, carbon steel elbow(CS elbow), mild steel elbow(MS elbow), alloy steel elbow(AS elbow), stainless steel elbow(SS elbow), ( 15deg, 30deg, 45deg, 90deg, 180deg)
SIZE
 		 NPS1/2”-120”(DN15-3000)
WALL THICKNESS SCH5S/10S, SCH20/40/80/160, STD/XS/XXS, SGP…….
MATERIAL carbon steel ASTM A234 GR WPB , ST37.2 , ST35.8……
alloy steel A234 WP5/WP9/WP11/WP22/WP91, A420 WPL6, A860 WHPY 42/52/60/65/70/80……
stainless steel A403 WP304/TP304 , WP304L/TP304L , WP316/TP316 , WP316L/TP316L, WP321/TP321 , WP310/TP310…..
STANDARD ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/DIN2605 /GB-12459/GB-T13401 etc…

ASME B16.9 Alloy Steel Butt Weld Fittings ASTM A234 WP9 SCH40 90 Degree LR SMLS ELBOW





Inspection & Test
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material

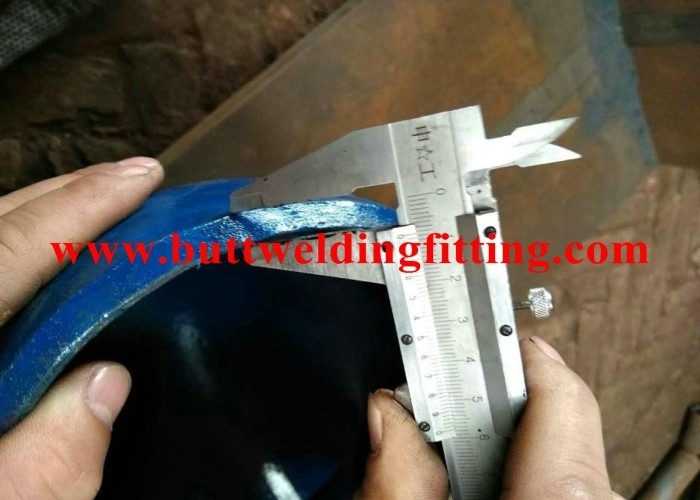

2.100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6.Straightness Test (optional)
7.Roughness Test (optional)
8.Intergranular Corrosion Test(optional)
9.Impact Test (optional)
10.Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.
