Monel Alloy 400 / NO4400 K500/NO5 Size 1/2-48inch Butt Weld Flanges Forged Steel

Monel Alloy 400 / NO4400 K500/NO5 Size 1/2-48inch Butt Weld Flanges Forged Steel
Monel Alloy 400 / NO4400 K500/NO5 Size 1/2-48inch Butt Weld Flanges Forged Steel Monel Alloy 400 / NO4400 K500/NO5 Size 1/2-48inch Butt Weld Flanges Forged Steel Monel Alloy 400 / NO4400 K500/NO5 Size 1/2-48inch Butt Weld Flanges Forged Steel Monel Alloy 400 / NO4400 K500/NO5 Size 1/2-48inch Butt Weld Flanges Forged Steel Monel Alloy 400 / NO4400 K500/NO5 Size 1/2-48inch Butt Weld Flanges Forged Steel Monel Alloy 400 / NO4400 K500/NO5 Size 1/2-48inch Butt Weld Flanges Forged Steel Monel Alloy 400 / NO4400 K500/NO5 Size 1/2-48inch Butt Weld Flanges Forged Steel Monel Alloy 400 / NO4400 K500/NO5 Size 1/2-48inch Butt Weld Flanges Forged Steel Monel Alloy 400 / NO4400 K500/NO5 Size 1/2-48inch Butt Weld Flanges Forged Steel Monel Alloy 400 / NO4400 K500/NO5 Size 1/2-48inch Butt Weld Flanges Forged Steel Monel Alloy 400 / NO4400 K500/NO5 Size 1/2-48inch Butt Weld Flanges Forged Steel Monel Alloy 400 / NO4400 K500/NO5 Size 1/2-48inch Butt Weld Flanges Forged Steel
Basic Information
Place of Origin: China
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: Hastelloy Steel Flange
Minimum Order Quantity: 1PC
Price: USD negotiation
Packaging Details: wooden case
Delivery Time: 10-100 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs per month
Get Best Price Contact Now
Material: ASTM AB564 Standard: DIN,EN,ASTM,BS,JIS,GB,etc.
DN: 15-1500 Size: 1/2-48inch
Type: WN,BL,SO
Highlight:

forged fittings and flanges

,

butt weld flanges

Forged Steel Flanges Steel Flange Monel Alloy 400 /NO4400, K500/NO5 Size 1/2-48inch

1. Hastelloy Steel flange, ASTM AB564 , Hastelloy Steel Flange C276/ NO10276 , Monel Alloy 400 /NO4400, K500/NO5500
2.sch5s-schxxs
3.ISO9001,ISO9000


4.Market:America,Africa,Middle East,Southeast of Asia



flangeType

Steel Flange, Inconel Alloy Steel Flange, ASTM AB564 , NO6600/ Alloy 600, NO6625/ Alloy 625, Alloy 690, Alloy 718
Standard ASME/ANSI B16.5
Size 1/2’’~60’’
Pressure Rate 150lb to 2500lb
Manufacturing process Push, Press, Forge, Cast, etc.
Material

Inconel Alloy Steel Flange
Carbon steel ASTM A 105
Allloy steel flange

ASTM A182 F5; F11;F22;F91;F51

ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8
Stainless Steel flange

ASTM A182 F304/304H/304L

ASTM A182 F316/316H/316L

ASTM A182 F321/321H

ASTM A182 F347/347H
Nickel Alloys Flanges Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys Flange

ASTM AB564 , NO6600/ Alloy 600, NO6625/ Alloy 625, Alloy 690, Alloy 718
Inconel Alloy Steel Flange

ASTM AB564 ,NO8800/ Alloy800, NO8810/ Alloy 800H, NO8811/Alloy 800HT
Hastelloy Steel Flange ASTM AB564 , NO6600/ Alloy 600, NO6625/ Alloy 625, Alloy 690, Alloy 718
Manufacture Standard ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FCA Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.



Description:

ASTM AB564 , NO6600/ Alloy 600, NO6625/ Alloy 625, Alloy 690, Alloy 718

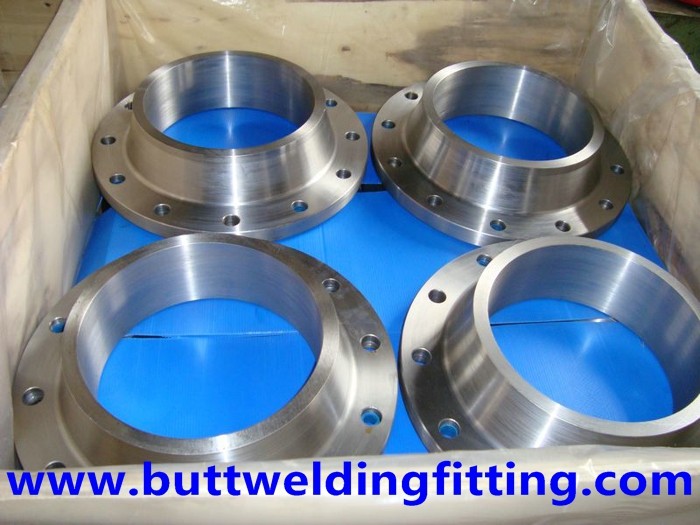

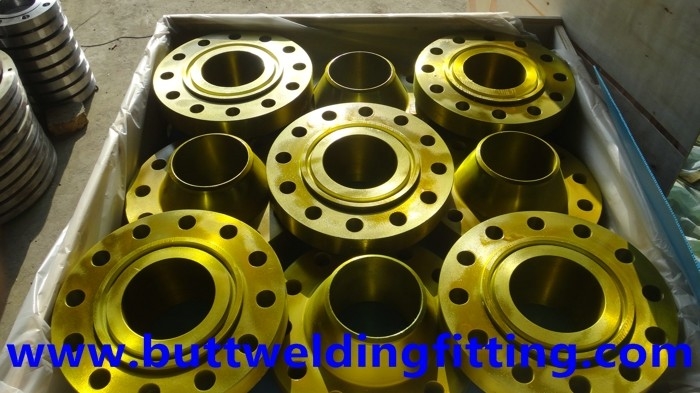

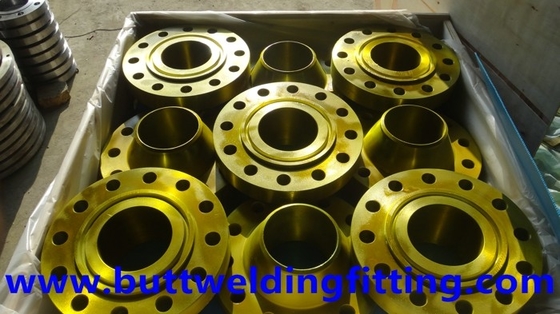

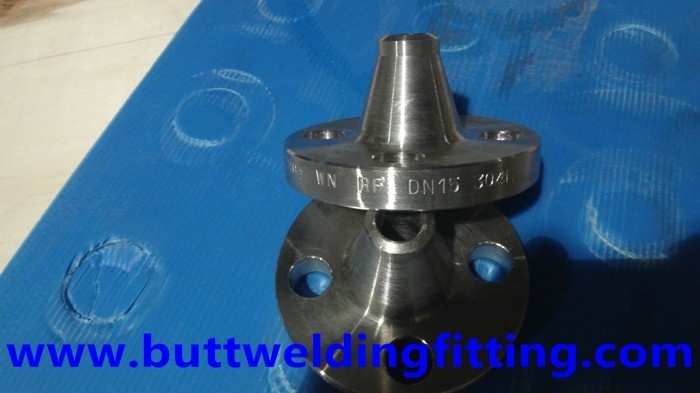

Weld Neck Flanges


Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications.

We are a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck flanges, forged flanges are normally used for high-pressure, cold or hot temperature.
