Place of Origin: | CHINA |
---|---|
Brand Name: | TOBO |
Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
Minimum Order Quantity: | 3PCS |
Price: | Negotiation |
Packaging Details: | PLY-WOODEN CASE OR PALLET |
Delivery Time: | 15DAYS |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 9980000PCS Per Month |
Model Number: | 1/2"-72" | Type: | Sweepolet |
---|---|---|---|
Surface Treatment: | Polishing | Head Code: | Round |
End Treatment: | PE/BE | Technics: | Cold Formed |
Connection: | Welding | Application: | Industry ,Oil, Exhaust |
High Light: | SS Stub End,Stub End Fittings |
Butt Welding Stainless Steel Lap Joint Stub Ends Cold Formed For Industry
Technics: |
cold formed
|
Place of Origin: |
Shanghai, China (Mainland)
|
Model Number: |
1/2"-72"
|
Brand Name: |
TOBO
|
Connection: |
Welding
|
Shape: |
Equal
|
Material: |
Carbon Steel
|
Type: |
sweepolet
|
Surface treatment: |
polishing
|
Head Code: |
round
|
Application: |
Industry ,Oil, exhaust
|
End treatment: |
PE/BE
|

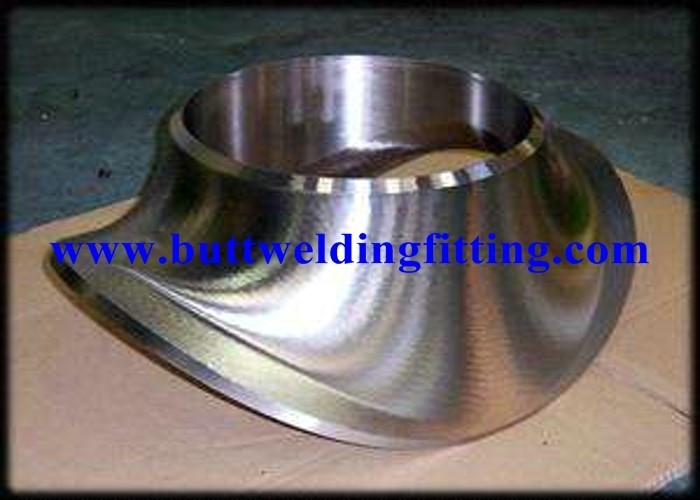

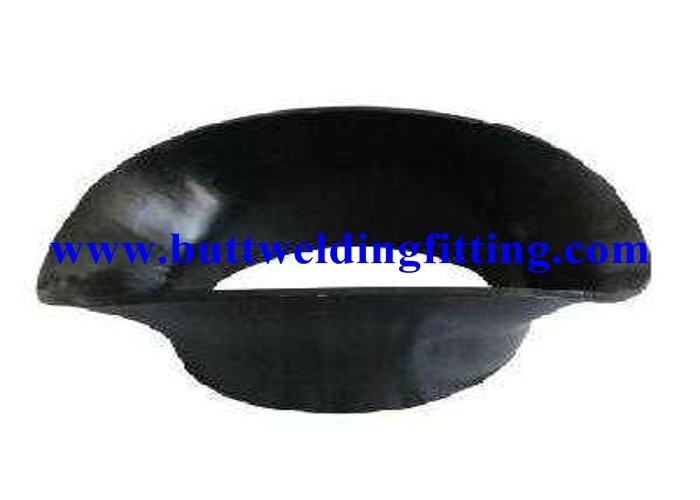

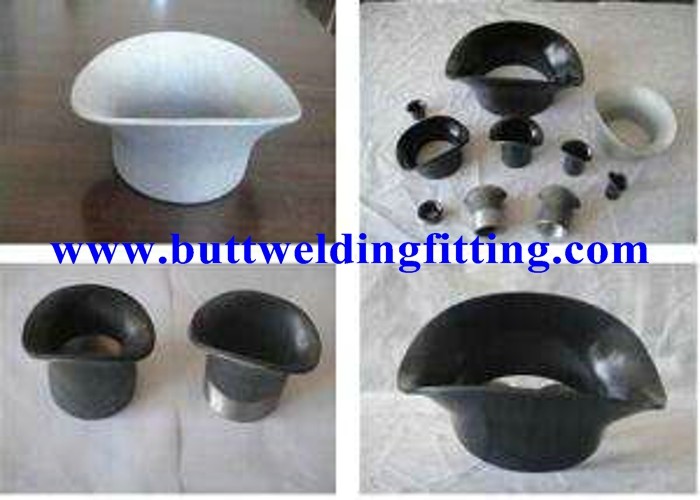

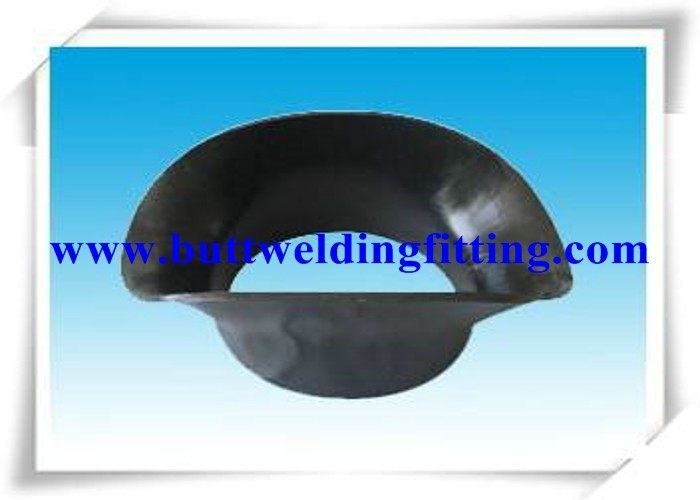

Saddle previously is the ventilation ducts 'crotch tee', its shaped like pants, there Equal and unequal diameter, the formal name is "tube tapered pants tee." There is no standard size, to be based on three tube spacing center line of the front and graphic design draw graphics, Lofting produced, lofting a certain degree of difficulty. Sheet metal is engaging, steel welding.
Size range: 1/2 to 72 inches
Bending, squeezing, pressing, forging, machining and more
DN | d1 | s | h | kg | |
. | 20 | 26.9 | 2.3 | 30 | 0.06 |
. | 25 | 33.7 | 2.6 | 30 | 0.09 |
. | 32 | 42.4 | 2.6 | 35 | 0.13 |
. | 40 | 48.3 | 2.6 | 40 | 0.21 |
. | 50 | 60.3 | 2.9 | 45 | 0.27 |
. | 65 | 76.1 | 2.9 | 50 | 0.45 |
. | 80 | 88.9 | 3.2 | 60 | 0.7 |
. | 100 | 114.3 | 3.6 | 65 | 1.2 |
. | 125 | 139.7 | 4 | 85 | 2.1 |
. | 150 | 168.3 | 4.5 | 100 | 2.9 |
. | 200 | 219.1 | 6.3 | 135 | 6.4 |
. | 250 | 273 | 6.3 | 150 | 9.8 |
. | 300 | 323.9 | 7.1 | 175 | 17.2 |
