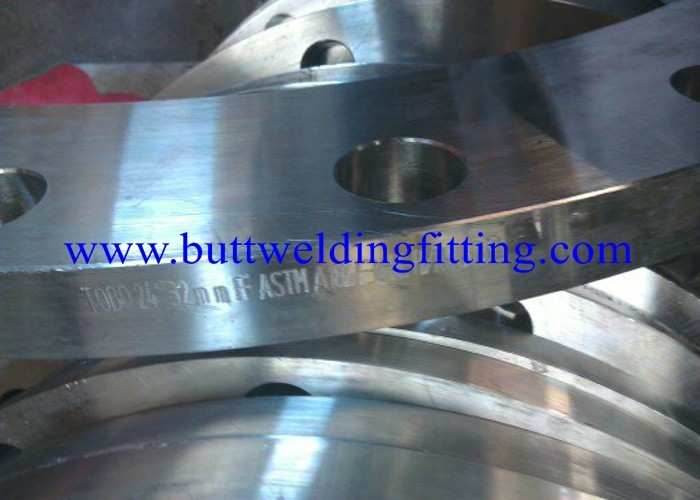

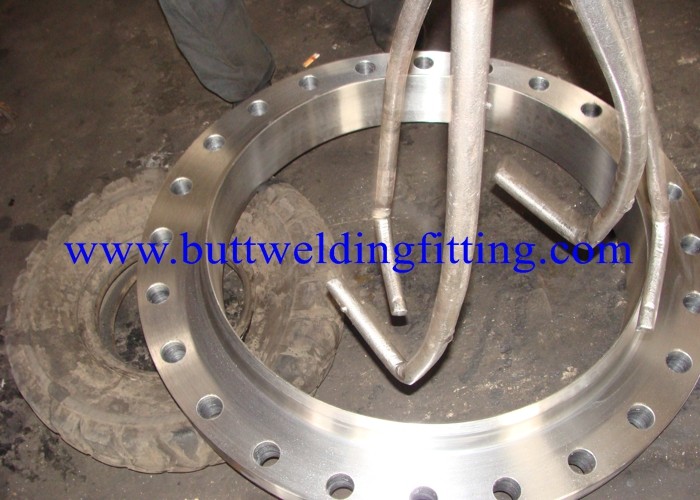

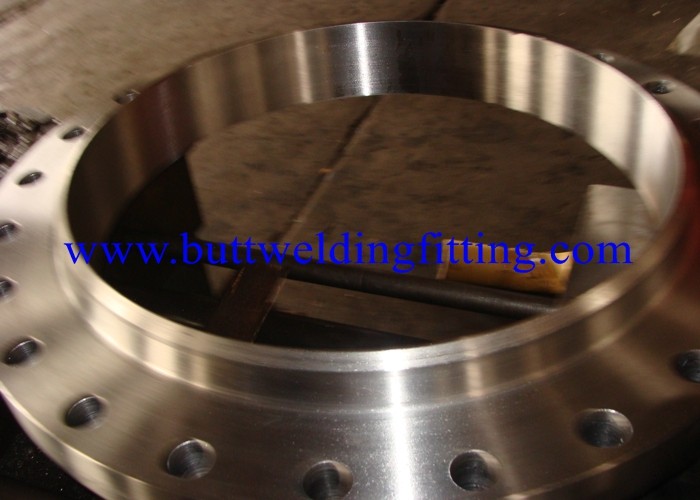

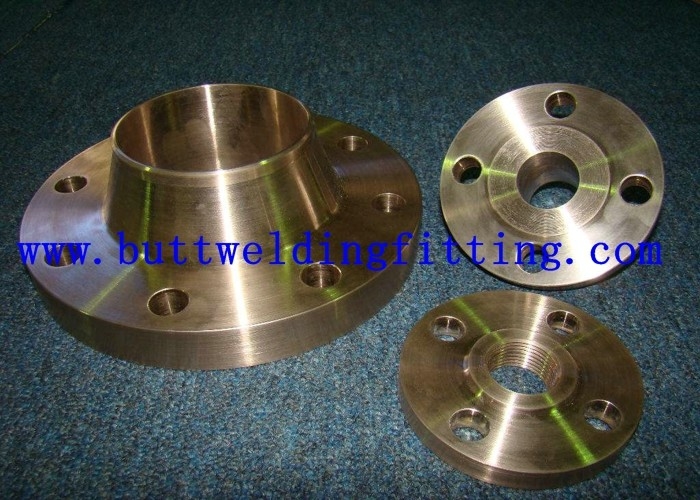

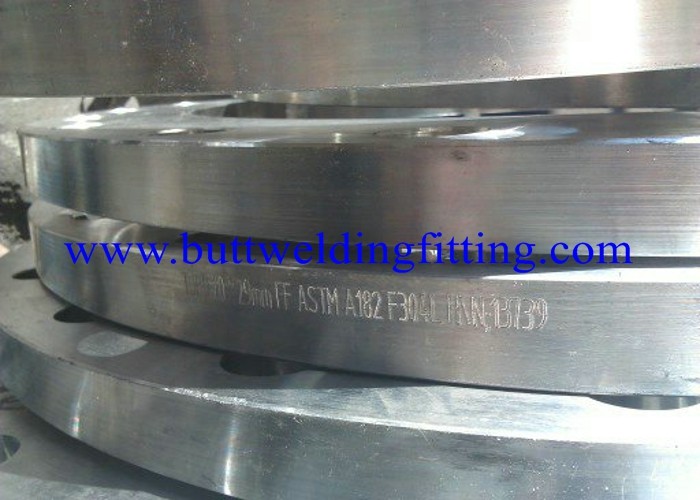

Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection

Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection
Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection
Basic Information
Place of Origin: China
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: 31254 1.4547 254 SMO
Minimum Order Quantity: 1pc
Price: US $ 10 - 100 / Kilogram
Packaging Details: Seaworthy wooden cases or pallets tied by steel band or as per client's requirements
Delivery Time: 30 days After Receiving the 30% Prepayment by T/T or LC
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Metric Ton/Metric Tons per Month
Get Best Price Contact Now
Type: Plate Flange OD: 9.5 To 219mm
Class Rating: 150#~2500# Facing: RF(raised Face);FF(flat Face);RTJ(ring Type Joint);RJ(ring Joint Face) TG(tongue And Groove Face);MFM(male And Female Face)
Manufacturing Process: Push, Press, Forge, Cast, Etc. Packing: Wooden Cases, Pallets, Nylon Bags Or According To The Customers' Requirements
MOQ: 1pcs Delivery Time: 10-100 Days Depending On Quantity
Payment Terms: L/C,T/T Shipment: FOB Tianjin/Shanghai, CFR, CIF Etc
Application: Pipeline And Valves Connection Surface Treatment: Pickled,2B,No.4,BA, Hairline, Mirror
Highlight:

forgings flanges and fittings

,

butt weld flanges

DIN 2633 PN16 WELDING NECK FLANGE WNRF Class 150 / Class300 / Class900



Specifications

Size:

Schedule DN or as you required

Material:

Stainless Steel

Standard:

ASTM, ASME, DIN, EN, BS,ISO, JIS,GB etc

Place of Origin:

Shanghai, China (Mainland)

Model Number:

Forged Flange

Standard or Nonstandard:

Standard

Product name:

DIN 2633 PN16 WELDING NECK FLANGE WNRF Class 150 / Class300 / Class900

Type:

Forged Flange

Surface treatment:

Pickled,2B,No.4,BA, Hairline, Mirror

Technique:

ERW

Application:

Application: motor,construction, oil, medicine, food...

Trade term:

FOB,CIF,CFR,EXW

Size range:

OD 9.5 to 219mm WT 0.25mm to 3mm

MOQ:

500kg

Sample:

Yes,free for frequenter customers
Packaging & Delivery

Packaging Details:

1. Wooden Pallet
2. Anti-wet woven bag
3. as required

Delivery Detail:

7-10 days,according to the final quantity

Flange Dimensions & Approximate Masses
Germany standard flange DIN 2633 welding neck flanges; nominal pressure 16
Vorschweißflansche DIN 2633 Nenndruck 16
Brides à souder à collerette DIN 2633: pression nominale 16
Pipe Flange Neck Raised face Screws Weight
(7,85 Kg/dm3)
Rated d1 D b k h1 d3 s r h2 d4 f Holes Thread d2 Kg
Diameter ISO Series DIN Series
15 - 20 95 14 65 35 30 2 4 6 45 2 4 M 12 14 0,648
21,3 - 32
20 - 25 105 16 75 38 38 2,3 4 6 58 2 4 M 12 14 0,952
26,9 - 40
25 - 30 115 16 85 38 42 2,6 4 6 68 2 4 M 12 14 1,14
33,7 - 45
32 - 38 140 16 100 40 52 2,6 6 6 78 2 4 M 16 18 1,69
42,4 - 56
40 - 44,5 150 16 110 42 60 2,6 6 7 88 3 4 M 16 18 1,86
48,3 - 64
50 - 57 165 18 125 45 72 2,9 6 8 102 3 4 M 16 18 2,53
60,3 - 75
65 76,1 - 185 18 145 45 90 2,9 6 10 122 3 4 M 16 18 3,06
80 88,9 - 200 20 160 50 105 3,2 8 10 138 3 8 M 16 18 3,7
100 - 108 220 20 180 52 125 3,6 8 12 158 3 8 M 16 18 4,62
114,3 - 131
125 - 133 250 22 210 55 150 4 8 12 188 3 8 M 16 18 6,3
139,7 - 156
150 - 159 285 22 240 55 175 4,5 10 12 212 3 8 M 20 22 7,75
168,3 - 184
(175) 193,7 - 315 24 270 60 210 5,4 10 12 242 3 8 M 20 22 9,85
200 219,1 - 340 24 295 62 235 5,9 10 16 268 3 12 M 20 22 11
250 - 267 405 26 355 70 285 6,3 12 16 320 3 12 M 24 26 15,6
273 - 292
300 323,9 - 460 28 410 78 344 7,1 12 16 378 4 12 M 24 26 22
350 355,6 - 520 30 470 82 390 8 12 16 438 4 16 M 24 26 31,2
- 368 28,8
400 406,4 - 580 32 525 85 445 8 12 16 490 4 16 M 27 30 39,3
- 419 36,3
(450) 457 - 640 34 585 85 490 8 12 16 550 4 20 M 27 30 44,3
500 508 - 715 34 650 90 548 8 12 16 610 4 20 M 30 33 61
600 610 - 840 36 770 95 652 8,8 12 18 725 5 20 M 33 36 75,4
700 711 - 910 36 840 100 755 8,8 12 18 795 5 24 M 33 36 77
800 813 - 1025 38 950 105 855 10 12 20 900 5 24 M 36 39 101
900 914 - 1125 40 1050 110 955 10 12 20 1000 5 28 M 36 39 122
1000 1016 - 1255 42 1170 120 1058 10 16 22 1115 5 28 M 39 42 162
NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696

Production Capacity & Purchase Details

1. Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.
2. Material Carbon Steel: RST37.2, C22.8, S235JR, ST37, P235GH, P245GH, P250GH, ASTM A105
3. Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.
4. Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.
5. Monthly Output: 3000 tons per Month.
6. Delivery Terms: CIF, CFR, FOB, EXW.
7. Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
8. Minimum Order Quantity: 1Ton or 100Pcs.
9. Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.
10. Find More Requirements In Flanges Market.

 Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection 0Stainless Steel 316L WNRF Welding Neck Flanges DN100 Pn16 Class 150 For Pipe Collection 1
