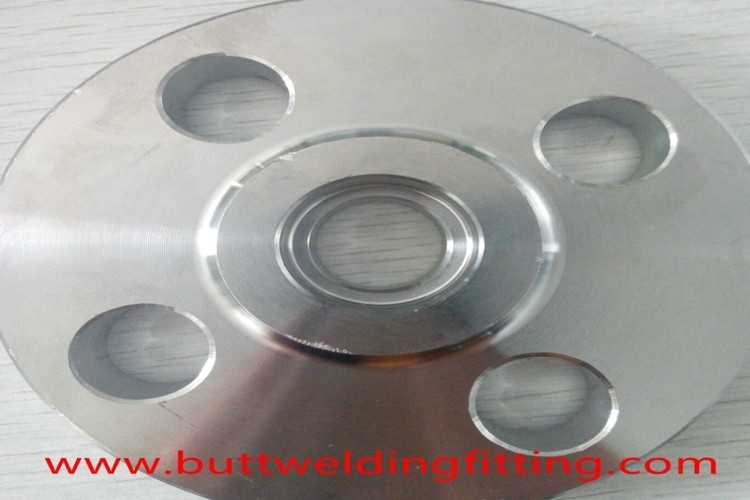

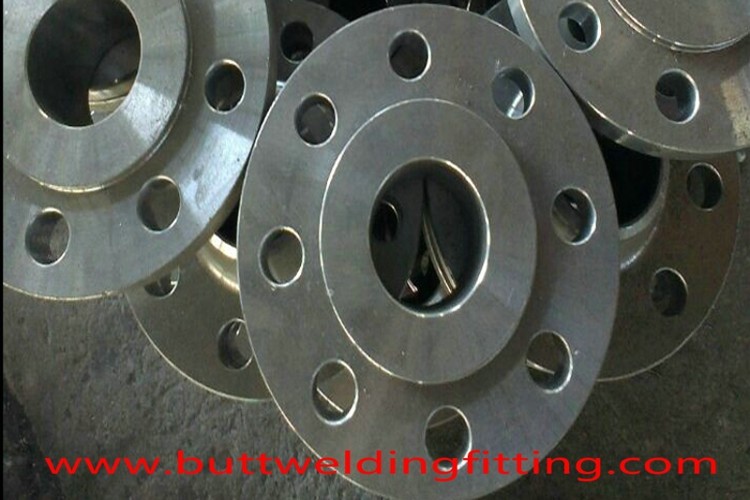

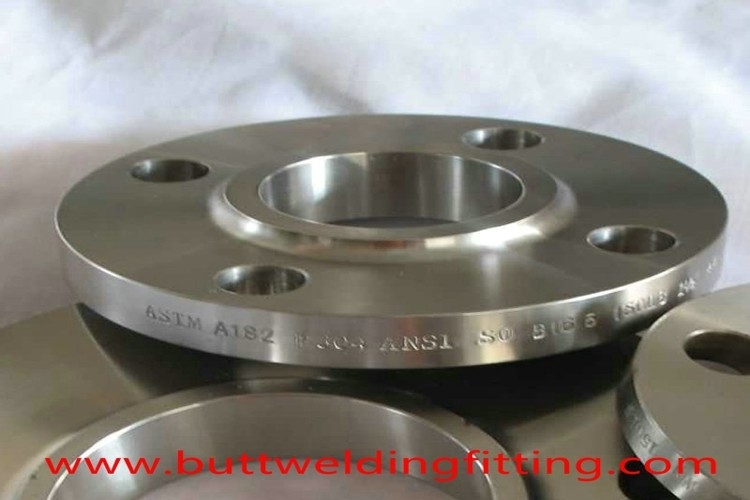

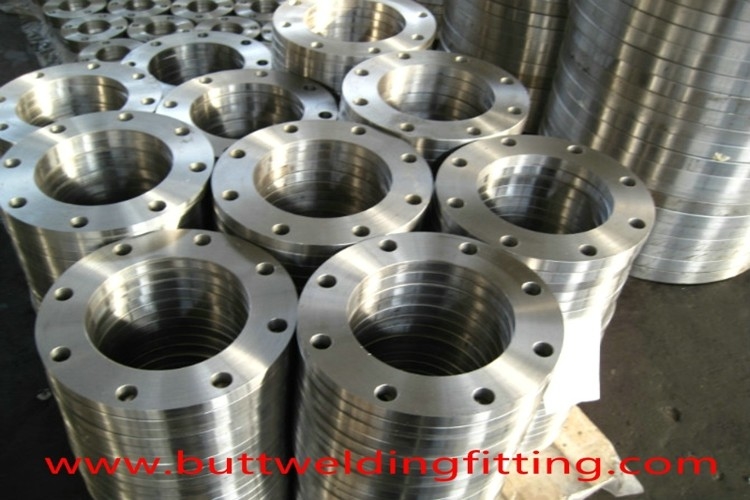

WN FLANGE ASTM A105 ASME B16.5, SCH 10, RF, CL.300 NPS 22” Forged Fittings And Flanges

  • WN FLANGE ASTM A105 ASME B16.5, SCH 10, RF, CL.300 NPS 22” Forged Fittings And Flanges
  • WN FLANGE ASTM A105 ASME B16.5, SCH 10, RF, CL.300 NPS 22” Forged Fittings And Flanges
  • WN FLANGE ASTM A105 ASME B16.5, SCH 10, RF, CL.300 NPS 22” Forged Fittings And Flanges
  • WN FLANGE ASTM A105 ASME B16.5, SCH 10, RF, CL.300 NPS 22” Forged Fittings And Flanges
  • WN FLANGE ASTM A105 ASME B16.5, SCH 10, RF, CL.300 NPS 22” Forged Fittings And Flanges
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number TOBO040
Minimum Order Quantity 1PC
Price Negotiation
Packaging Details In wooden case, pallets or as per customers’ requirement
Delivery Time 15 working days
Supply Ability 100000PC/MONTH
Product Details
Product Name Pipe Product Type WN FLANGE
Size 1/2’’-60’’ DN15-DN1500 15-1500
Pressure Rate 150LB To 2500LB Payment Terms T/T
Standard ASME B16.5 Delivery Time 10-100 Working Days After Received Your Payment
Highlight

forgings flanges and fittings

,

forged fittings and flanges
Leave a Message
Product Description

Product Description



Specifications



1.Stainless steel flange


2.sch5s-schxxs


3.ISO9001,ISO9000


4.Market:America,Africa,Middle East,Southeast of Asia





Weld Neck Flanges


Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications.

We are a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck flanges, forged flanges are normally used for high-pressure, cold or hot temperature.



FlangeType Steel Flange, Inconel Alloy Steel Flange, ASTM AB564 , NO6600/ Alloy 600, NO6625/ Alloy 625, Alloy 690, Alloy 718
Standard ASME/ANSI B16.5
Size 1/2’’~60’’
Pressure Rate 150lb to 2500lb
Manufacturing process Push, Press, Forge, Cast, etc.
Material Inconel Alloy Steel Flange
Carbon steel ASTM A 105

Allloy steel flange



ASTM A182 F5; F11;F22;F91;F51

ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8

Stainless Steel flange



ASTM A182 F304/304H/304L

ASTM A182 F316/316H/316L

ASTM A182 F321/321H

ASTM A182 F347/347H

Nickel Alloys Flanges



 Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys Flange



ASTM AB564 , NO6600/ Alloy 600, NO6625/ Alloy 625, Alloy 690, Alloy 718


Inconel Alloy Steel Flange

ASTM AB564 ,NO8800/ Alloy800, NO8810/ Alloy 800H, NO8811/Alloy 800HT


Hastelloy Steel Flange ASTM AB564 , NO6600/ Alloy 600, NO6625/ Alloy 625, Alloy 690, Alloy 718
Manufacture Standard ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FCA Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.

WN FLANGE ASTM A105 ASME B16.5, SCH 10, RF, CL.300 NPS 22” Forged Fittings And Flanges



Why Choosing Metal Industrial:

-Sufficient Forging, Heating, Machining Equipment
-In-house Inspection Instruments for Quality Controlling
-Competitive Price & High Quality Assurance
-Fast, Effective and Efficient Services
-Directly supplier of Metallurgical Equipment
-Experienced Professinonals on Communications





Our Company

We are one of the Professional manufacturers Exporter Pipeline products in China .Our company was established in 1998, the plant covers 550, 000 square meters and a construction area of 6,8,000square meters, existing 260 workers and 45 technicians.





We have five branch factories which can supply the best quality pipes, tubes, fittings flanges and related accessories. Now, it owns a number of advanced pipe production equipments, metal, forging, machining, cold forming, hot extrusion, such as heat treatment process, producing 60, 000 tons of pipe fittings. Company with a variety of detection devices, such as nondestructive testing, chemical analysis, metallographic examination, physical experiments. The technical is very strength, our main products contain fittingsforged socket welding fittings and threaded fittings, pipe weld and the materials of the products contain stainless steel ,duplex-stainless steel alloy steel.





In addition, we are authorized by more than 120 top-class mills from South Korea,Japan and China like JFE,SUMITOMO,POSCO,BAOSTEEL, TISCO,LISCO,.TPCO,HENGYANG VALIN and so on.

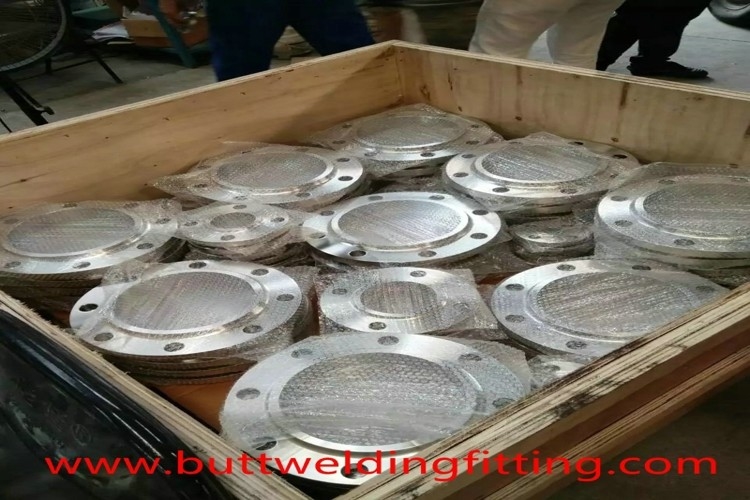

Packing&Delivery



Packing Details :In wooden case, pallets or as per customers’ requirement
Delivery Details : 7-15 days after the PO





WN FLANGE ASTM A105 ASME B16.5, SCH 10, RF, CL.300 NPS 22” Forged Fittings And Flanges
