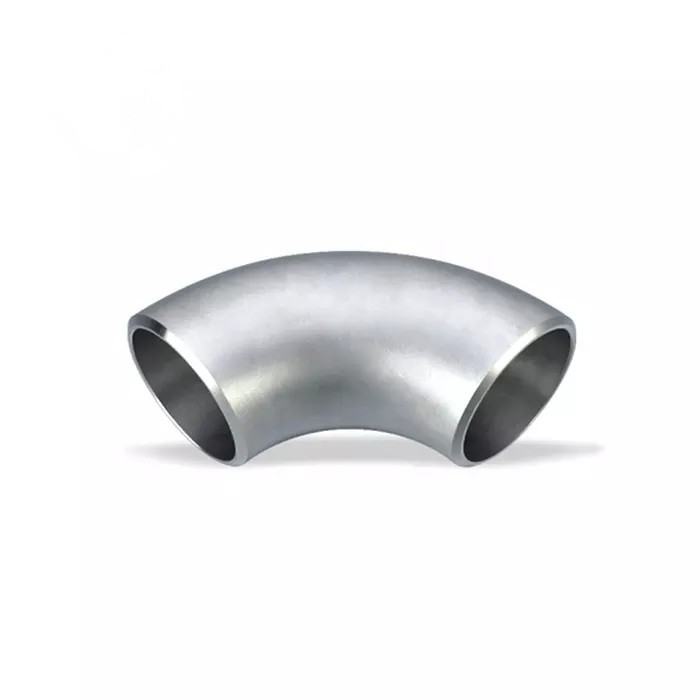

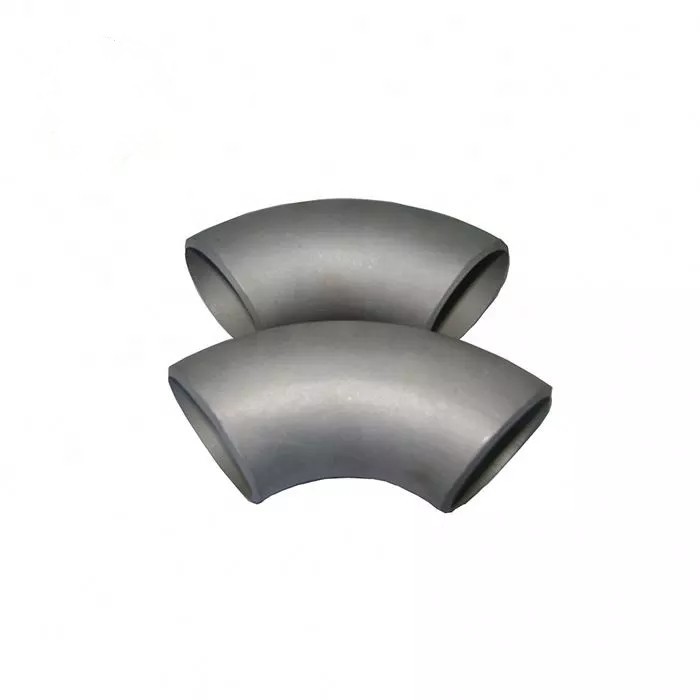

NPT Threaded 304 Stainless Steel 90 Degree Elbow Pipe Fitting

NPT Threaded 304 Stainless Steel 90 Degree Elbow Pipe Fitting

The NPT threaded 304 stainless steel 90 degree elbow is a precision-engineered pipe fitting designed to change flow direction in threaded piping systems. Manufactured through investment casting in accordance with ASTM A351 CF8 specifications, this elbow fitting delivers reliable leak-tight performance with Class 150 pressure rating. The 304 stainless steel material provides excellent resistance to oxidation and corrosion in freshwater, municipal, and light chemical environments, making this threaded elbow a preferred choice across plumbing, water treatment, food processing, and general industrial fluid handling applications.

Each NPT threaded elbow undergoes 100% dimensional inspection to verify compliance with ANSI B1.20.1 thread standards. The 90-degree configuration allows for efficient pipe routing around obstacles and through confined spaces. The investment casting process ensures uniform wall thickness and smooth internal bore surfaces, which minimize turbulence and pressure drop across the elbow fitting. For installers and system designers seeking a dependable threaded connection solution, this 304 stainless steel elbow combines material integrity with precision manufacturing.

Technical Specifications

Key Advantages and Application Areas

• Reliable Threaded Seal: NPT tapered threads create a progressively tightening mechanical seal when properly assembled with thread sealant or PTFE tape, ensuring leak-free operation under rated pressure conditions.
• Versatile Fluid Compatibility: 304 stainless steel withstands water, steam, mild acids, alkaline solutions, food-grade fluids, and general industrial media without degradation or contamination.
• Easy On-Site Installation: Threaded connections eliminate the need for welding equipment or specialized skills, reducing installation time and labor costs for field assembly and maintenance operations.
• Plumbing and HVAC Systems: Ideal for commercial and residential plumbing networks, hydronic heating loops, chilled water circuits, and compressed air distribution systems requiring threaded joinery.
• Water Treatment Facilities: Suitable for reverse osmosis feed lines, filtration skids, chemical dosing panels, and process water distribution where NPT connections and corrosion resistance are both required.
• Food and Beverage Processing: Meets sanitary requirements for product contact surfaces in dairy, brewery, beverage, and food manufacturing piping with easy disassembly for CIP cleaning protocols.
• Industrial Fluid Transfer: Compatible with lubricating oil, hydraulic fluid, coolant, and non-aggressive chemical transfer lines in manufacturing plants and processing facilities.
• Marine Auxiliary Systems: Suitable for freshwater, bilge, ballast water, and deck wash piping on vessels where 304 stainless provides adequate pitting resistance in above-deck environments.

Frequently Asked Questions

Q: What is the difference between NPT and BSP threaded elbow fittings?

A: NPT (National Pipe Taper) threads feature a 60-degree thread angle with tapered profile per ANSI B1.20.1, creating a pressure-tight seal through thread deformation. BSP (British Standard Pipe) threads use a 55-degree angle with either parallel or tapered variants per ISO 7/1. NPT is the dominant standard in North America, while BSP prevails in Europe, Asia, and Commonwealth markets. These two thread standards are not interchangeable, and using the correct matching threaded elbow prevents galling and leakage. Our NPT threaded elbow fittings are manufactured to exact ANSI tolerances for reliable cross-compatibility with standard NPT nipples, couplings, and valves.

Q: Can this 304 stainless steel threaded elbow be used for high-temperature steam applications?

A: Yes, the 304 stainless steel threaded elbow is rated for continuous service up to 538°C (1000°F), making it suitable for saturated steam lines within its Class 150 pressure-temperature rating envelope. However, for steam systems operating above 200 psi or with frequent thermal cycling, we recommend considering our 316 stainless steel variants for enhanced creep resistance and chloride stress corrosion cracking immunity. Thread sealant selection is critical for steam applications; graphite-based compounds or high-temperature PTFE tapes rated above 260°C are recommended to maintain seal integrity under thermal expansion and contraction cycles.

Q: What thread sealant or installation procedure do you recommend for NPT threaded connections?

A: We recommend applying 2-3 wraps of PTFE thread seal tape (wrapped clockwise when viewed from the thread end) or a suitable anaerobic pipe thread sealant to the male NPT threads before assembly. Hand-tighten the connection, then apply 1.5 to 2 additional turns with a wrench until snug. Avoid over-tightening, which can cause galling on stainless steel threads or crack the casting. For critical applications, a hydrostatic pressure test at 1.5 times the working pressure should be performed after installation to verify seal integrity. Never use thread sealant on female threads as this can interfere with proper engagement.
