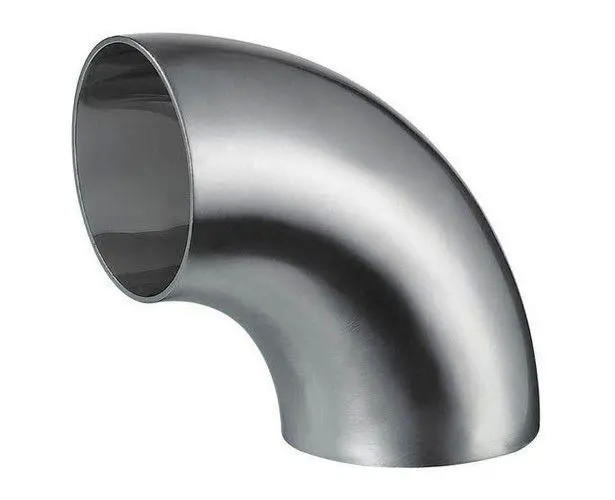

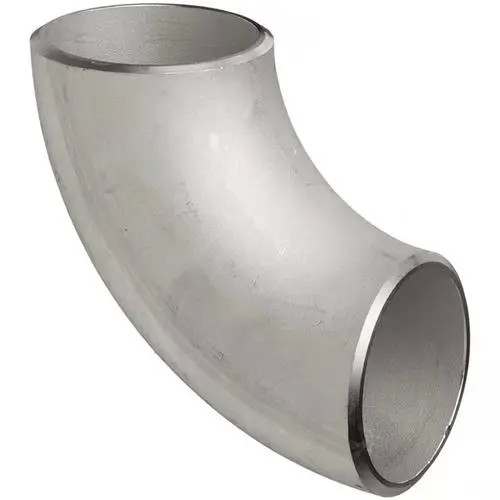

6000LBS High Pressure Forged Stainless Steel Elbow Pipe Fitting

6000LBS High Pressure Forged Stainless Steel Elbow Pipe Fitting

The 6000LBS high pressure forged stainless steel elbow represents the pinnacle of pressure capability in threaded and socket weld fitting design. Manufactured from ASTM A182 F316 stainless steel using closed-die forging technology, this elbow fitting withstands extraordinary operating pressures up to 6000 pounds per square inch at ambient temperature. The forging process aligns the material grain structure along the fitting contour, eliminating the porosity and internal defects commonly found in cast fittings. This metallurgical advantage translates directly into superior fatigue resistance and reliable long-term performance under cyclic pressure loading conditions encountered in hydraulic power units, offshore christmas trees, high-pressure chemical injection skids, and deep-water manifold systems.

Each high pressure elbow socket weld end is precision-machined to ASME B16.11 dimensional tolerances, ensuring consistent fit-up with schedule 80 and schedule 160 pipe. The 316 stainless steel grade, containing 2-3% molybdenum, provides substantially enhanced resistance to chloride-induced pitting and crevice corrosion compared to 304, making this forged elbow the definitive choice for marine, offshore, and coastal industrial environments. Rigorous quality control includes PMI (Positive Material Identification) testing on every heat lot, hydrostatic shell testing at 1.5 times rated pressure, and liquid penetrant examination of critical surfaces per ASME Section V requirements to detect any surface discontinuities that could compromise pressure integrity.

Technical Specifications

Key Advantages and Application Areas

• Exceptional Pressure Capacity: 6000LBS rating enables deployment in ultra-high-pressure hydraulic circuits, wellhead control lines, and subsea manifold piping where standard Class 3000 fittings would be undersized for the operating envelope.
• Closed-Die Forging Integrity: The forged grain flow follows the elbow contour, providing up to 30% higher fatigue strength compared to investment cast equivalents and virtually eliminating the risk of internal porosity-related leakage paths.
• 316 Molybdenum-Enhanced Corrosion Protection: The 2-3% molybdenum content in 316 stainless steel imparts critical resistance to pitting corrosion in chloride-containing environments, including seawater spray zones, chemical processing areas, and coastal industrial facilities.
• Hydraulic Power Units: Essential for connecting high-pressure pump discharge lines to accumulator banks, directional control valve manifolds, and intensifier circuits operating at pressures exceeding 350 bar (5000 psi).
• Offshore Oil and Gas Platforms: Deployed in topside process piping, chemical injection systems, hydraulic control umbilicals, and wellhead instrumentation tubing where 316 stainless steel meets NORSOK M-650 material qualification requirements.
• High-Pressure Chemical Injection: Suitable for methanol, corrosion inhibitor, and scale inhibitor injection lines operating at pressures up to 6000 psi in refinery and petrochemical process units.
• Deep-Water Subsea Systems: Compatible with super duplex and 316 stainless steel subsea piping in manifold pods, pipeline end terminations (PLETs), and flowline connection systems rated for water depths exceeding 3000 meters.
• Hydrostatic Test Rigs: Used in pressure testing manifold assemblies for valves, actuators, and downhole tools where the fitting itself must exceed the test pressure rating of the equipment under evaluation.

Frequently Asked Questions

Q: What is the difference between 3000LBS and 6000LBS pressure ratings for forged socket weld elbows?

A: The 6000LBS designation indicates the fitting is rated for 6000 psi maximum cold working pressure (CWP) at ambient temperature, which is double the 3000LBS rating. This higher rating is achieved through increased wall thickness, enhanced forging reduction ratios, and more stringent non-destructive examination requirements. A 6000LBS socket weld elbow can be visually distinguished from 3000LBS by its noticeably heavier wall section and larger socket depth. When selecting between the two, the system design pressure, safety factor requirements per ASME B31.3 Process Piping code, and the pipe schedule (Sch 160 or XXS for 6000LBS service) must all be considered together. The 6000LBS forged stainless steel elbow is the standard choice for high-pressure hydraulic systems where peak operating pressures regularly exceed 3000 psi.

Q: How does the socket weld connection ensure leak-tight performance under 6000 psi conditions?

A: The socket weld joint creates a fillet weld between the pipe OD and the socket hub of the elbow fitting. The 1/16-inch (1.6 mm) gap between the pipe end and the socket bottom allows for thermal expansion of the pipe during welding without creating a crack-initiating stress riser. The resulting circumferential fillet weld provides full-penetration sealing with strength exceeding the pipe burst pressure. Post-weld liquid penetrant examination per ASME Section V Article 6 is performed on all socket weld connections in our facility to verify the absence of surface cracks, porosity, or lack-of-fusion defects. For sour service applications in H2S-containing environments, we apply NACE MR0175/ISO 15156 hardness-controlled welding procedures to prevent sulfide stress cracking in the heat-affected zone of this high pressure elbow fitting.

Q: Can this 6000LBS forged elbow be supplied with full material traceability and third-party inspection?

A: Absolutely. Every forged stainless steel elbow is supplied with an EN 10204 Type 3.1 material test report documenting chemical composition, mechanical properties (tensile strength, yield strength, elongation, reduction of area), and Charpy V-notch impact values at specified test temperatures. Full heat lot traceability is maintained from the original steel mill certificate through forging, heat treatment, machining, and final inspection stages. We welcome third-party inspection agencies including Bureau Veritas, DNV, Lloyd's Register, SGS, and TUV to witness hydrostatic testing, PMI verification, dimensional checks, and NDE procedures at our facility. Additional NDE options including radiographic examination (RT) and ultrasonic testing (UT) can be performed upon request for critical-service forged elbow applications.
