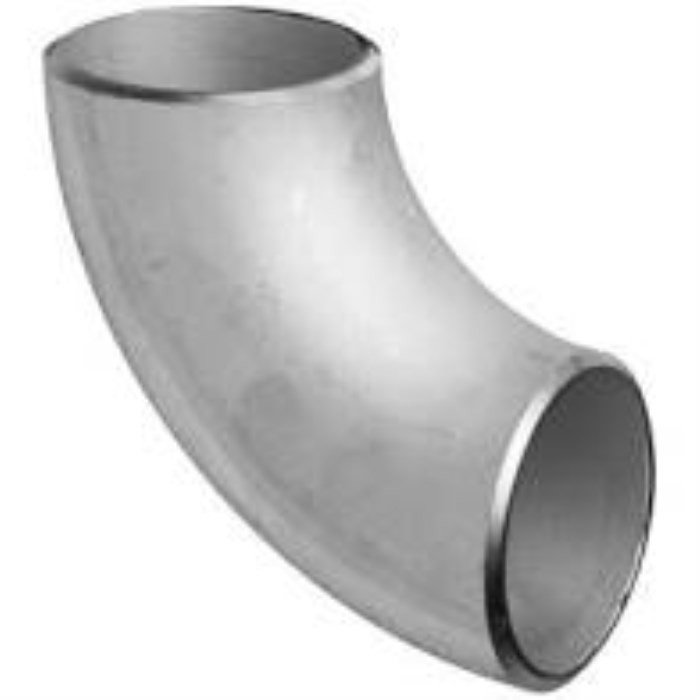

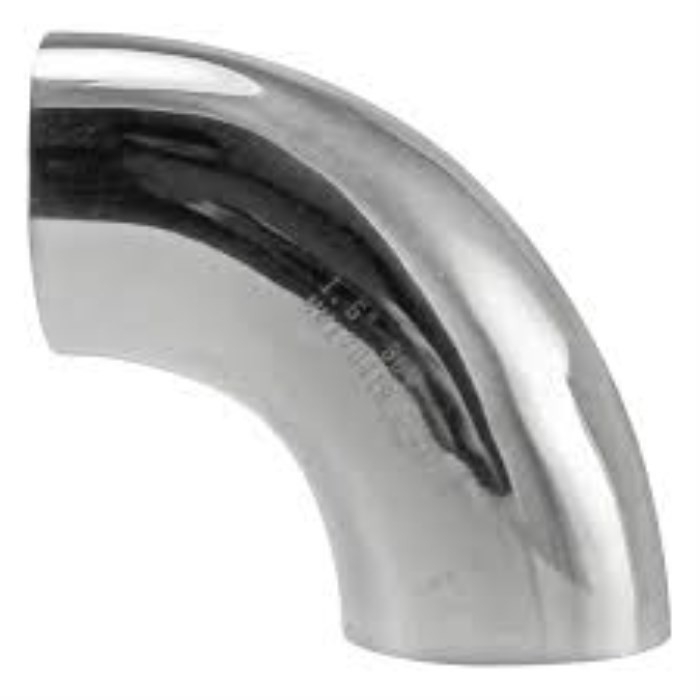

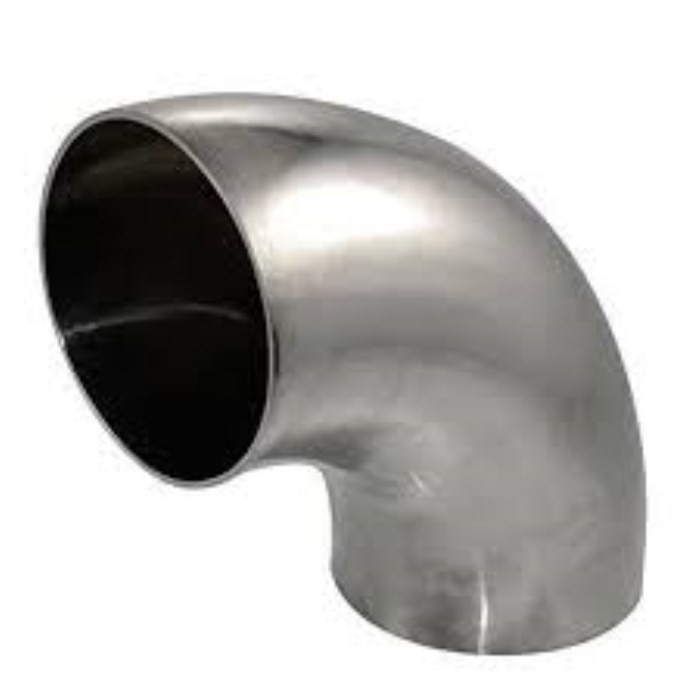

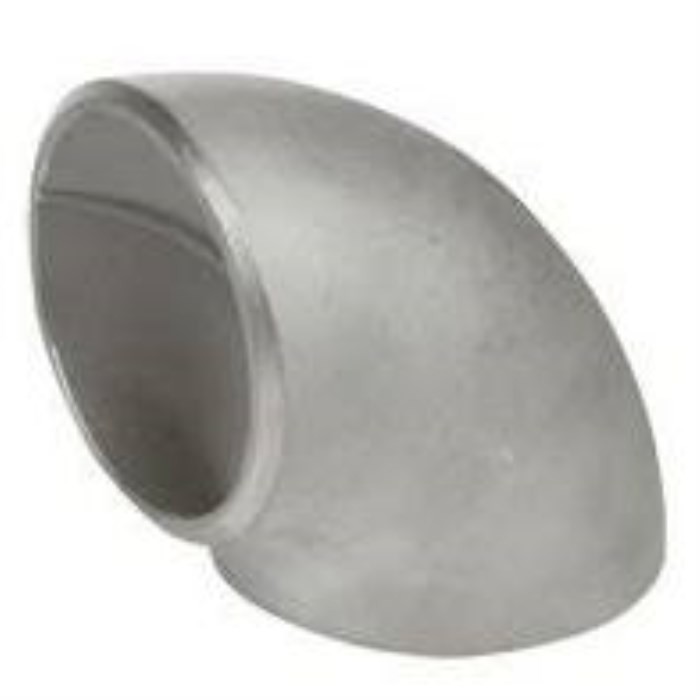

Hydraulic Fluid Control Stainless Steel Elbow

  • Hydraulic Fluid Control Stainless Steel Elbow
  • Hydraulic Fluid Control Stainless Steel Elbow
  • Hydraulic Fluid Control Stainless Steel Elbow
  • Hydraulic Fluid Control Stainless Steel Elbow
  • Hydraulic Fluid Control Stainless Steel Elbow
Place of Origin Zhejiang, China
Brand Name SMLSCO
Certification ISO 9001:2015, PED
Model Number SS-EB-HYD316L
Minimum Order Quantity 50 Pieces
Price USD 5.5-40 / Piece
Packaging Details Wooden case with anti-rust protection
Delivery Time 5 working days for stock, 15-25 days for production
Payment Terms T/T,L/C,Western Union
Supply Ability 20000 Pieces per Month
Product Details
Product Name Hydraulic Fluid Control Stainless Steel Elbow Application Hydraulic, Pneumatic And Steam Systems
Material Grade 316L Stainless Steel Media Hydraulic Oil, Water Glycol, Steam
Pressure Rating Class 300 / 3000 LBS Connection Type Butt Weld / Threaded
Size Range DN15 - DN300 Standard ASME B16.9 / ASTM A403
Highlight

Hydraulic Fluid Control Elbow

,

Steam Process Pipe Fitting

,

316L Fluid Power Elbow
Leave a Message
Product Description
Hydraulic Fluid Control Stainless Steel Elbow

This hydraulic fluid control stainless steel elbow is designed for fluid power systems that cannot tolerate internal leakage or contamination. The hydraulic stainless steel elbow offers a smooth bore that keeps pressure drop low, so the fluid control pipe fitting supports responsive hydraulic circuits.

Built for fluid control skids and manifolds, this stainless steel elbow in 316L resists hydraulic oil, water glycol and steam media. The result is a fluid control pipe fitting that serves pneumatic, hydraulic and process fluid systems with reliable flow.

Product Specifications
Parameter Value
Material Stainless Steel 316L
Application Hydraulic and fluid control systems
Standard ASME B16.9 / ASTM A403
Connection Butt Weld / Threaded
Size Range DN15 - DN300
Surface Pickled
Media Hydraulic oil, water glycol, steam
Test Hydrostatic and PMI
Pressure Rating Class 300 / 3000 LBS
Packing Wooden case
Key Advantages
  • Smooth bore keeps pressure drop low in fluid control loops
  • Resists hydraulic oil, water glycol and steam media
  • 316L body suits both hydraulic and pneumatic systems
  • Stable bore supports precise flow control
  • Hydrostatic tested for fluid power integrity
  • Fits skids, manifolds and power units
Applications
  • Hydraulic power units
  • Pneumatic and fluid control skids
  • Steam and condensate manifolds
  • Machine tool hydraulic circuits
  • Mobile equipment fluid power
  • Process fluid distribution
Frequently Asked Questions
Is this elbow suitable for hydraulic fluid control systems?
Yes. The hydraulic stainless steel elbow is made for fluid control loops, and its smooth bore keeps the fluid control pipe fitting performing in hydraulic and pneumatic systems.
Which media suit this fluid control pipe fitting?
This stainless steel elbow handles hydraulic oil, water glycol and steam, making the fluid control pipe fitting adaptable to fluid power and process duty.
What pressure rating is offered?
The hydraulic stainless steel elbow is available in Class 300 and 3000 LBS, so the fluid control pipe fitting can match your working pressure.
Can it be used in steam service?
Yes. Steam is one supported medium, and the stainless steel elbow is hydrostatically tested so the fluid control pipe fitting is dependable in condensate and steam lines.

For distributors and OEM buyers, this stainless steel elbow can be supplied in repeat quantities with consistent material and matched tolerances, so reordering the same hydraulic fluid control specification stays predictable. Our engineers review every inquiry and confirm the stainless steel elbow drawing before production begins, which keeps each run aligned to ASME B16.9 / ASTM A403 and to the agreed hydraulic fluid control requirement.

Quality Assurance

Quality is controlled at every stage of producing this stainless steel elbow. From incoming inspection of the Stainless Steel 316L through forming and final testing, each step is recorded so the stainless steel elbow you receive can be traced back to its heat number. Before packing, the stainless steel elbow is dimensionally checked and put through Hydrostatic and PMI, and a mill test certificate travels with every shipment of the stainless steel elbow. This disciplined hydraulic fluid control process is why buyers return to us for dependable stainless steel elbow.

Packing and Service

Each stainless steel elbow is protected for ocean freight and packed to keep edges and seal faces intact in transit. We support OEM marks, custom sizes and mixed containers, and our export team replies with a hydraulic fluid control stainless steel elbow quotation, lead time and packing plan within one working day. Sampling is available so you can approve the stainless steel elbow before placing a bulk order.

How is quality controlled for this stainless steel elbow?
The stainless steel elbow is inspected from raw material through final Hydrostatic and PMI, and the hydraulic fluid control process is documented so the stainless steel elbow can be traced to its heat number before shipment.
What documents accompany this stainless steel elbow?
Every stainless steel elbow ships with a mill test certificate and inspection report, giving buyers the traceability expected of a hydraulic fluid control stainless steel elbow for Hydraulic and fluid control systems.

For hydraulic and fluid control projects, send your media and pressure and we will quote this hydraulic stainless steel elbow with the right rating.
