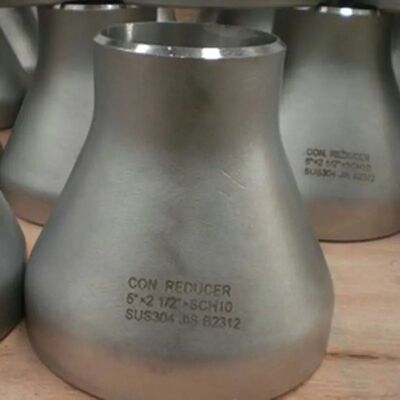

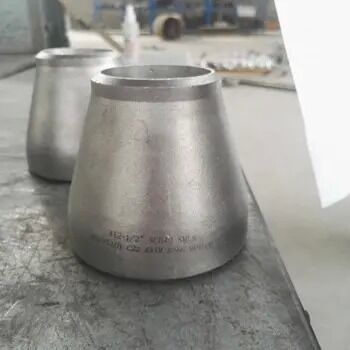

Butt Weld Seamless Stainless Steel Reducer ASME B16.9 Pipe Fitting

Butt Weld Seamless Stainless Steel Reducer ASME B16.9 Pipe Fitting

1. Product Description

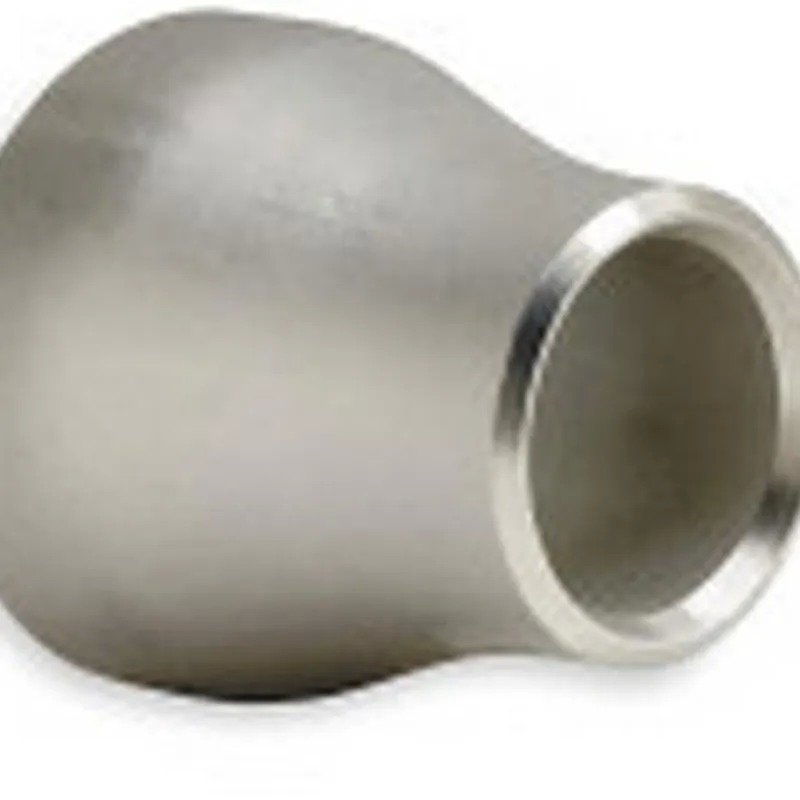

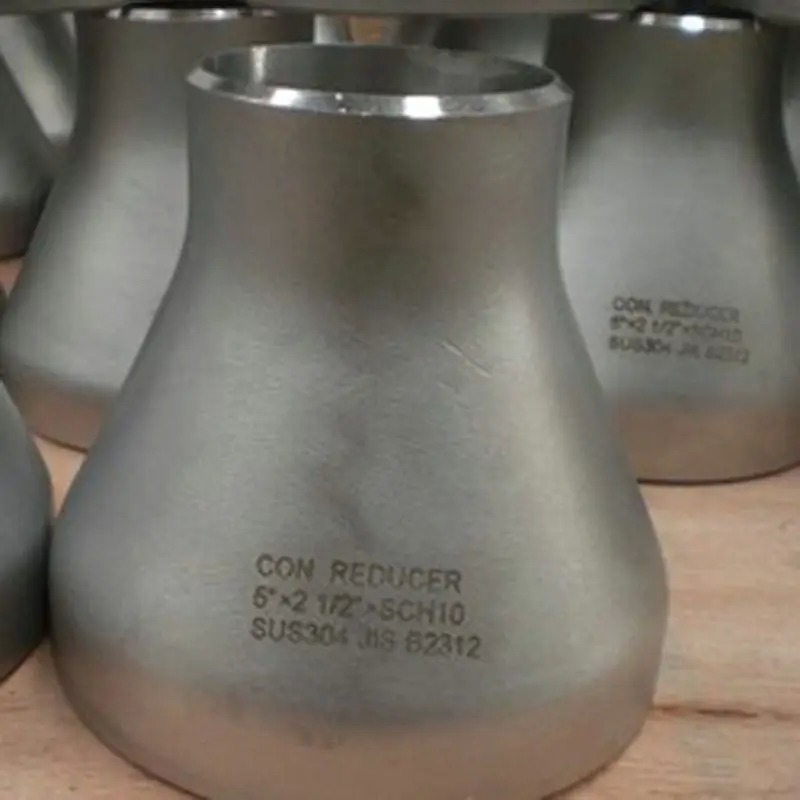

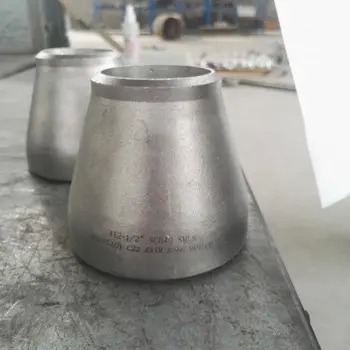

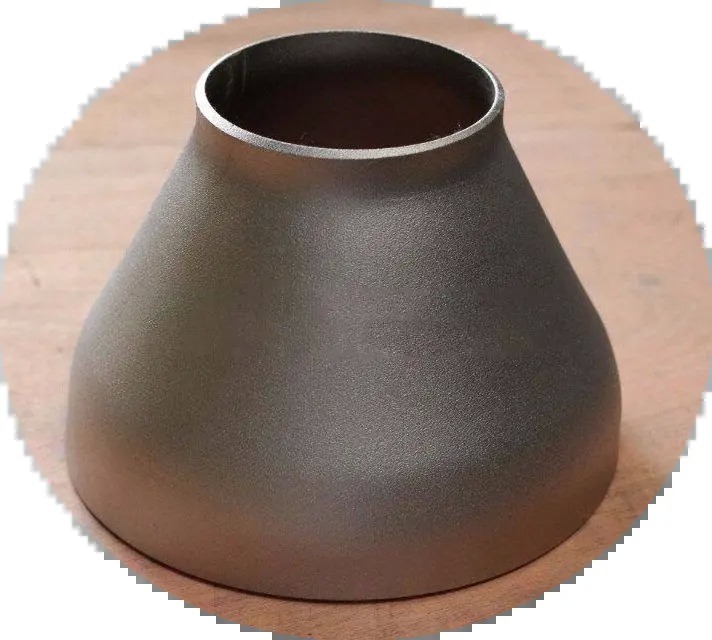

A Stainless Steel Reducer (also called a reducing coupling or reducer fitting) is a piping component used to connect two pipe sections of different diameters. It is available in two geometric configurations: concentric reducers and eccentric reducers. A concentric reducer is a symmetrical cone with both ends sharing the same centreline. An eccentric reducer has one flat side and offset centrelines, and can be supplied in Bottom-of-Pipe (BOP) or Top-of-Pipe (TOP) orientation. Common materials include 304, 304L, 316, 316L, 321, and duplex stainless steels. Reducers are manufactured by reducing, expanding, or stamping processes and are available with butt-weld, threaded, socket-weld, press-fit, or clamp-on end connections.

2. Applications

Stainless steel reducers are used wherever a reliable transition between different pipe sizes is required, including:

• Oil & gas / petrochemical: gathering lines, refinery and process piping;

• Chemical processing: corrosive media and process liquid lines;

• Water treatment & potable water: supply networks, wastewater, desalination;

• Food, beverage & pharmaceutical: hygienic piping requiring smooth, cleanable interiors;

• Power generation & shipbuilding: steam, cooling water, and compressed-air systems;

• HVAC: chilled water, hot water, and steam distribution;

• Pump suction and discharge piping: eccentric reducers are preferred at pump suctions to prevent cavitation; concentric reducers are common on discharge or vertical runs.

3. Advantages

• Superior corrosion resistance: stainless steel grades, particularly 316/316L, resist moisture, chemicals, and frequent cleaning, extending service life.

• High strength and pressure capability: suitable for demanding industrial pressure and mechanical loads.

• Hygienic design: polished interior surfaces minimise bacteria growth and residue buildup, meeting food and pharmaceutical sanitation requirements.

• Optimised flow: precise reducing geometry promotes smooth fluid transition and reduces turbulence and pressure drop.

• Installation flexibility: available with butt-weld, press, threaded, or clamp connections; press-fit systems enable flameless, rapid installation.

• Wide size range and customisability: sizes from DN15 to DN2000, schedules from SCH5S to XXS, with options for material, end type, and surface finish.

4. Functions

The primary function of a stainless steel reducer is to provide a smooth, reliable transition between different pipe diameters. Concentric reducers maintain centreline alignment and are suited to vertical piping, gas/steam lines, and inline assemblies where symmetrical flow is desired. Eccentric reducers, with one flat side, prevent air-pocket formation, facilitate gravity drainage, and reduce solids settling in horizontal liquid lines, making them essential for pump suction piping and slurry service. Together, both types ensure diameter compatibility, controlled flow distribution, and protection of downstream equipment such as pumps, valves, and instruments.

5. Key Specifications

FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
