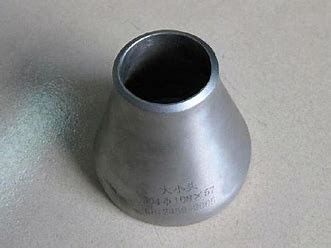

Forged Stainless Steel Concentric Eccentric Reducer ASME B16.9 Fitting

  • Forged Stainless Steel Concentric Eccentric Reducer ASME B16.9 Fitting
  • Forged Stainless Steel Concentric Eccentric Reducer ASME B16.9 Fitting
  • Forged Stainless Steel Concentric Eccentric Reducer ASME B16.9 Fitting
  • Forged Stainless Steel Concentric Eccentric Reducer ASME B16.9 Fitting
  • Forged Stainless Steel Concentric Eccentric Reducer ASME B16.9 Fitting
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Stainless Steel Reducer
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10 Ton
Product Details
Product Name Stainless Steel Reducer Payment T/T, L/C, Western Union,
Test X-Ray Test, Hydro Test, UT Test Email Andyhuang@cnjdgy.com
Connectiontype Butt Welded Type Reducer
Steel Grade Stainless Steel 304/316L,X5CrNi18-20 Max Temp 400°F
Body Material Stainless Steel Pipe SS316 Service Temperature Minus 196 C
Durability Excellent Manufacturing Process Push, Press, Forge, Cast, Etc.
Head Code Circle Endconnection Butt Weld Ends
Productname Stainless Steel Reducer Pressurerating Class 150 To Class 3000
Leave a Message
Product Description

Forged Stainless Steel Concentric Eccentric Reducer ASME B16.9 Fitting



1. Product Description

A Stainless Steel Elbow is a piping fitting used to change the direction of a pipeline, commonly available in 45°, 90°, and 180° angles. It is classified by bending radius into long-radius elbows (R=1.5D) and short-radius elbows (R=1.0D), and by connection type into butt-weld, threaded, socket-weld, press-fit, and clamp-on elbows. Typical materials include 304, 304L, 316, 316L, 321, and duplex stainless steels. Elbows are manufactured by hot-pushing, stamping, or forging and are widely used in corrosion-resistant, pressure-retaining, and hygienic piping systems.

2. Applications

Stainless steel elbows are used for pipeline direction changes in oil & gas, chemical processing, water treatment, food & beverage, pharmaceutical, power generation, shipbuilding, and HVAC industries. 90° elbows provide right-angle turns; 45° elbows provide gradual turns with lower pressure loss; 180° elbows are used for return bends and heat-exchanger connections. Hygienic elbows are common in food, dairy, and pharmaceutical lines requiring cleanable, dead-leg-free turns; butt-weld elbows suit high-pressure/high-temperature industrial piping; press-fit elbows are used in thin-wall stainless steel water piping systems.

3. Advantages

  • Excellent corrosion resistance: stainless steel resists water, chemicals, and cleaning agents, extending service life.

  • High pressure capability: butt-weld and forged elbows withstand high internal pressures for demanding industrial service.

  • Low flow resistance: long-radius elbows provide gradual transition, reducing turbulence and pressure drop.

  • Hygienic performance: polished interiors are smooth and free of dead legs, meeting food and pharmaceutical sanitation requirements.

  • Flexible installation: butt-weld, threaded, socket-weld, press-fit, and clamp connections are available; press systems enable flameless installation.

  • Wide size range: DN15–DN1200, schedules SCH5S–XXS, with custom angles and radii available.

4. Functions

The primary function of a stainless steel elbow is to change pipeline direction, allowing the piping system to follow equipment layout, building structure, and process routing. 90° elbows provide right-angle turns; 45° elbows provide gradual turns with reduced local resistance; 180° elbows are used for return bends. Long-radius elbows are used where pressure drop is critical, while short-radius elbows suit space-constrained installations. Elbows also serve to connect pipe sections, distribute stress, and guide smooth fluid turning.

Forged Stainless Steel Concentric Eccentric Reducer ASME B16.9 Fitting

5. Key Specifications

Parameter Typical Range / Description
Material 304, 304L, 316, 316L, 321, 310S, Duplex 2205, 904L, etc.
Angle 45°, 90°, 180° (custom angles available)
Bending Radius Long radius R=1.5D; Short radius R=1.0D
Standards GB/T 12459, GB/T 13401, ASME B16.9, ASTM A403, EN 10253-3, JIS B2311/2313, DIN 2605, etc.
Nominal Size Seamless: 1/2″–24″ (DN15–DN600); fabricated: up to 48″ (DN1200)
Wall Thickness / Schedule SCH5S, SCH10S, SCH20, SCH30, SCH40, SCH60, SCH80, SCH100, SCH120, SCH140, SCH160, XXS
Pressure Rating Typically Class 150–Class 900; press systems around 10–16 bar; butt-weld rating governed by end wall thickness
Connection Type Butt-weld (BW), threaded (NPT/BSP), socket-weld, press-fit, clamp/quick-connect, flanged
Surface Finish Pickled & passivated, mirror-polished ID/OD, matt, sand-blasted
End Configuration Bevel end, plain end, threaded end, press end



FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
