ASME B16.11 SW 90 Degree Stainless Steel Elbow ASTM SA234 WPB Elbows

China ASME B16.11 SW 90 Degree Stainless Steel Elbow ASTM SA234 WPB Elbows supplier
ASME B16.11 SW 90 Degree Stainless Steel Elbow ASTM SA234 WPB Elbows supplier ASME B16.11 SW 90 Degree Stainless Steel Elbow ASTM SA234 WPB Elbows supplier ASME B16.11 SW 90 Degree Stainless Steel Elbow ASTM SA234 WPB Elbows supplier ASME B16.11 SW 90 Degree Stainless Steel Elbow ASTM SA234 WPB Elbows supplier ASME B16.11 SW 90 Degree Stainless Steel Elbow ASTM SA234 WPB Elbows supplier

Large Image :  ASME B16.11 SW 90 Degree Stainless Steel Elbow ASTM SA234 WPB Elbows

Product Details:

Place of Origin: CHINA INDIA
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: ASTM A 234 GRADE WPB-W

Payment & Shipping Terms:

Minimum Order Quantity: 0.5-1 tons
Price: negotiable

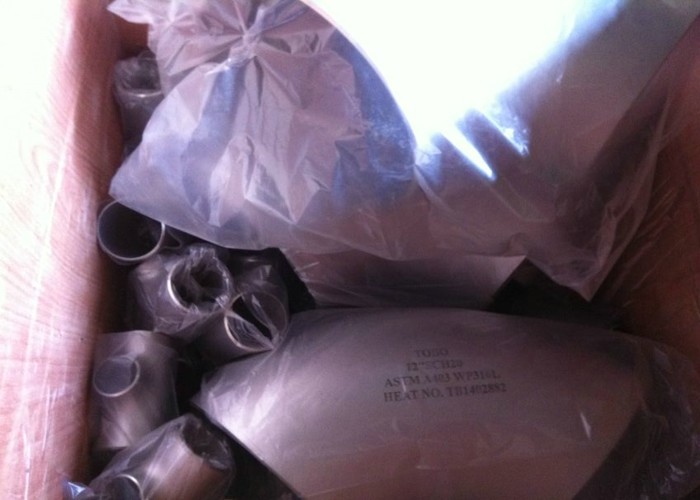

Packaging Details: in plastic bags then in bundles
Delivery Time: According to the qty
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 7500 tons per year
Contact Now
Detailed Product Description
Color: White Silver Gold Types:: ASTM A 234 GRADE WPB-W ELBOW
Material Grade: API 5L ASTM A106 Outer Diameter: 20mm - 610mm

ELBOW DIAMETER 90 ° CARBON STEEL 38 THICKNESS.ASTM A 234 GRADE WPB-W​

Brand Name: TOBO
Model Number: ELBOW DIAMETER 90 ° CARBON STEEL 38 THICKNESS.ASTM A 234 GRADE WPB-W.
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin: China





Product Name ASME B16.11 SW 45 Degree Elbow Product Type Stainelss Steel Pipe Fittings
Size 1/2" to 72" Material Carbon Steel
Material Grrade ASTM SA234 WPB Type Elbow
Standard ASME B16.19 Min.Order: 10 Piece/Pieces
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc



Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 3,0000pcs per month
Delivery Time: 10-100 days depending on quantity

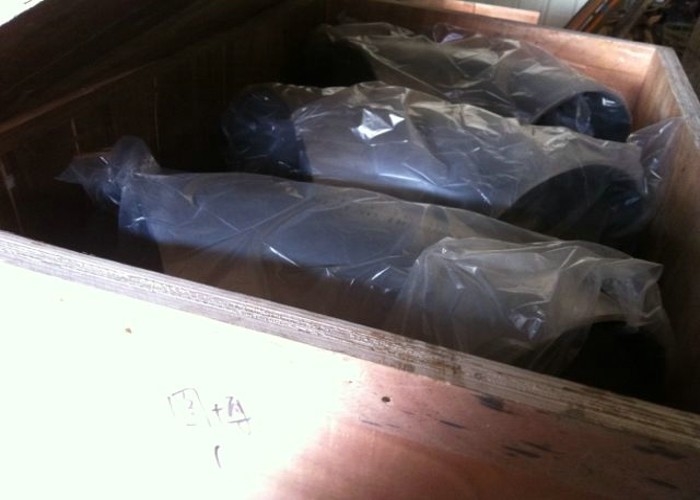

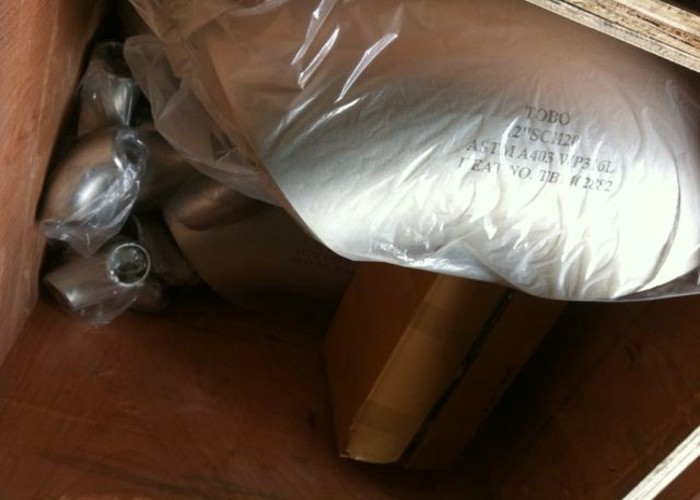

Packaging Details: PLY-WOODEN CASE OR PALLET



ASTM SA234 WPB Carbon Steel LONG RADIUS Seamless Steel ELBOW



PIPE ELBOW - LONG RADIUS (LR) ELBOW, SHORT RADIUS (SR) ELBOW



MANUFACTURER/EXPORTER IN CHINA | ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43



LONG/SHORT RADIUS ELBOWS - 90° ELBOW, 45° ELBOW, 180° ELBOW




Item Definition

An elbow is a pipe fitting which is used as a connection point between two lengths of pipes to produce a change in the direction of flow in the pipe, usually at an angle of 90°, 45° or 180°. Elbows are also commonly referred as bends, and are available in a range of materials such as stainless steel, carbon steel, alloy steel, nickel alloys, duplex, and cupro nickel.



Also known as 90° bends, 90° elbows are manufactured as SR (Short Radius) elbows and LR (Long Radius) elbows. 45° elbows are typically made as LR (Long Radius) elbows.



LR and SR

TOBO is a leading manufacturer and supplier of short radius and long radius elbows.

The long radius elbows have a center to end distance that is 1.5 times the NPS in inches (R=1.5D), while the short radius is equal to the NPS in inches (R=1.0D).

Short radius elbows are generally used in tight areas, and long radius elbows are used when space is available and flow is more critical.

We can also manufacture and supply carbon steel elbows and stainless steel elbows in non-standard size angles such as 60°, 100°, 120° or 150°.



Ends

The ends may be machined for butt welding, threaded (usually female), or socketed, etc. When the two ends differ in size, the fitting is called a reducing elbow or reducer elbow.



Butt welded Pipe Elbow Production Range

Outside Diameter



Seamless Elbow ( 1/2″40″), ERW / Welded / Fabricated Elbow (1/2″72″)

Wall Thickness



3mm - 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Bending Radius



R=1D - 10D, 15D, 20D

Product's Angle



5° - 180° Elbows, 90° and 45° Long Radius Elbows, 180° Long Radius Returns, Short Radius Elbows and Returns

Value Added Services



Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering

Production Grades



Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel



Manufacturing Standards



ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43

DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN: EN10253-1, EN10253-2



ASTM A403 /ASME SA403 - Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings



ASME B16.9 - Factory-Made Wrought Fittings Butt welding



ASME B16.25- Butt welding Ends



ASME B16.28- Wrought Steel Short Radius Elbows and Butt welding Returns



MSS SP-43 - Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Pipe Elbow

Material Grade



Stainless Steel Elbow; ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L



Carbon Steel Elbow: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.



Low Temperature Carbon Steel Elbow: ASTM A420 WPL3, A420 WPL6



Alloy Steel Elbow: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91



Duplex Steel Elbow: ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462



Nickel Alloy Elbow: ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
