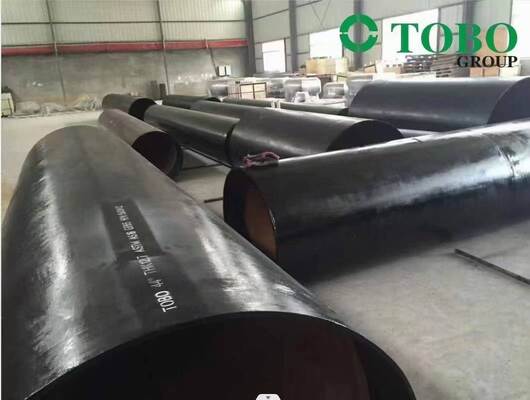

API 5L Gr.B Seamless Carbon Steel Pipe Sch40 Black Coating for Pipeline

API 5L pipes run through the entire upstream‑midstream‑downstream chain of the oil and gas industry. In extraction operations, they serve as wellhead high‑pressure gas gathering lines, water/polymer injection lines, and produced fluid multiphase pipelines, withstanding corrosive media and cyclic loads carried by downhole fluids. In long‑distance transmission, they carry the core conveying function of national trunk pipeline networks, cross‑provincial interconnects, and subsea pipelines, while also functioning as process piping within compressor stations, valve chambers, and metering stations to connect compressors, heat exchangers, and filter separators. In refining and terminal segments, they are applied in feed and effluent lines for atmospheric/vacuum distillation, catalytic cracking, and hydrocracking units, as well as distribution branches at product depots and city gate stations. Beyond oil and gas, API 5L pipes are extensively cross‑applied in urban high‑pressure gas grids, long‑distance water diversion projects, mine tailings transportation, power plant circulating cooling water systems, and as load‑bearing members in offshore jacket platforms, bridge piles, and large‑span steel plant structures, fully demonstrating the multi‑functional nature of industrial steel pipes.

3. Product Advantages

• Grade Selection Aligned with Engineering Demands: Grade B and X42 suit low‑pressure, normal‑temperature general transmission; X52 through X60 achieve the optimal balance between cost‑effectiveness and mechanical performance, making them the preferred choice for onshore medium‑pressure lines; X65 and X70 combine high strength with high crack‑arrest toughness, representing the standard configuration for high‑pressure, large‑diameter long‑haul trunk lines; X80 and above support wall thickness reduction and weight saving through higher strength, offering feasible solutions for deepwater and arctic projects. The chemical composition and rolling processes for each grade are specifically optimized for service environments, achieving both safety and economy.

• Process Selection Matched to Diameter and Pressure: Small diameters (≤DN600) preferably adopt seamless or ERW processes, leveraging high dimensional accuracy and cost advantages to meet city gas and station piping needs; medium‑to‑large diameters (DN400–DN1400) for trunk lines are dominated by LSAW, leveraging its inherent advantage of shorter longitudinal welds and lower defect probability; extra‑large diameters (≥DN1000) with lower pressure ratings for water transmission or low‑stress gas lines select SSAW, enabling high‑flow transmission at lower material and fabrication costs. This diameter‑and‑pressure‑based grading strategy has been widely adopted by global engineering contractors.

• Full‑Process Quality Control and Traceability: From ladle refining (LF/VD) and continuous casting electromagnetic stirring in steelmaking, to thermo‑mechanical controlled rolling (TMCP) in the rolling stage, and then to pipe forming, welding, expanding, and heat treatment, every critical step is subject to on‑line monitoring and parameter recording. Finished pipes are uniquely linked to material lot numbers and process data via end markings and electronic mill test certificates, enabling precise backtracking to coil batches, welding parameters, and inspection results for any pipe segment during the operational period.

• Specialized Certification for Harsh Environments: For sour oil and gas fields containing H₂S, pipes can be supplied with HIC and SSC test validation, with hardness strictly limited to ≤250 HV10 and sulfur content reduced to below 0.002%. For arctic regions, grain refinement and quenching‑tempering heat treatment ensure impact energy compliance at –45℃. For subsea pipelines, additional flattening and guided bend tests are required to verify plastic deformation capacity, with pipe end dimensional tolerances tightened to half of those for ordinary onshore pipes.

• Lifecycle Cost Advantages: High geometric precision reduces on‑site fit‑up and weld repair hours; controlled carbon equivalent lowers preheating temperature requirements, saving welding energy and consumables; uniform wall thickness distribution allows thinner walls under the same design pressure, reducing steel consumption; good compatibility with long‑life anti‑corrosion coatings such as FBE and 3LPE, coupled with cathodic protection, yields a design life of no less than 50 years, significantly reducing maintenance and replacement costs during the operational phase.

​

4.​Key Product Parameters

FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
