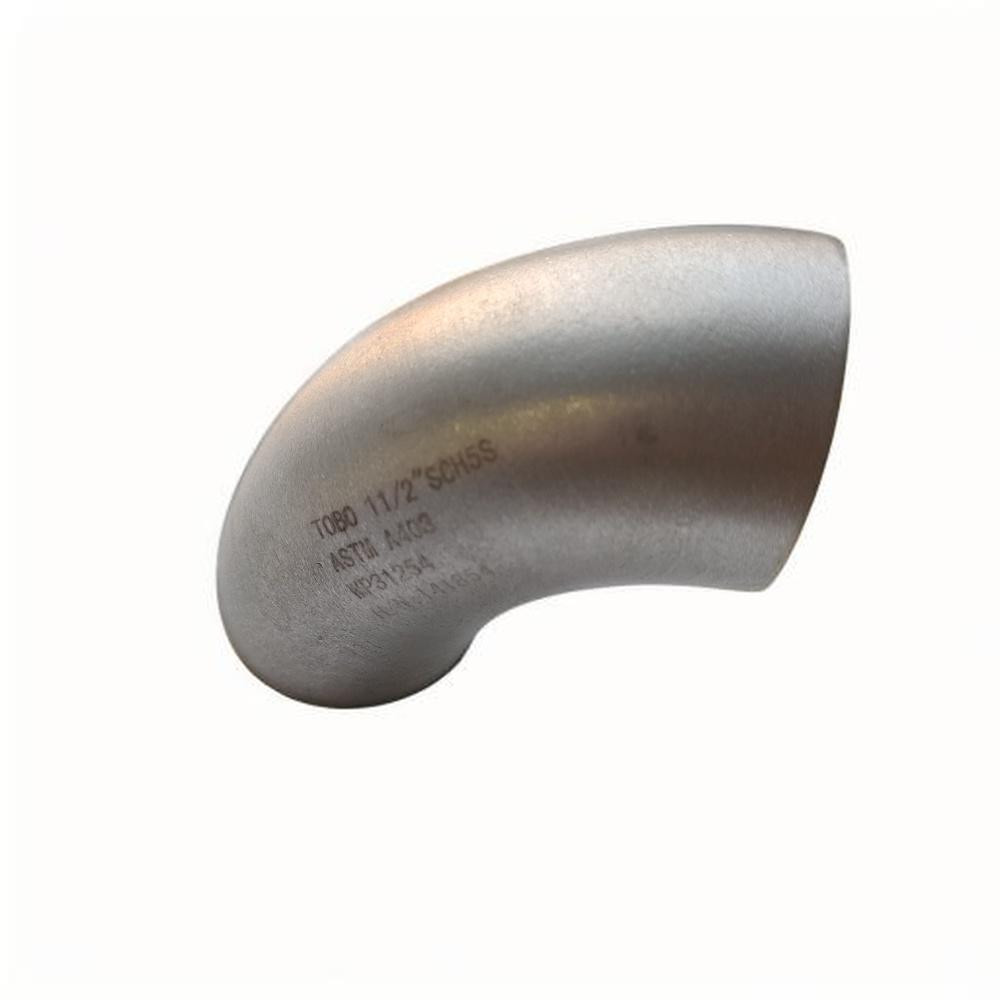

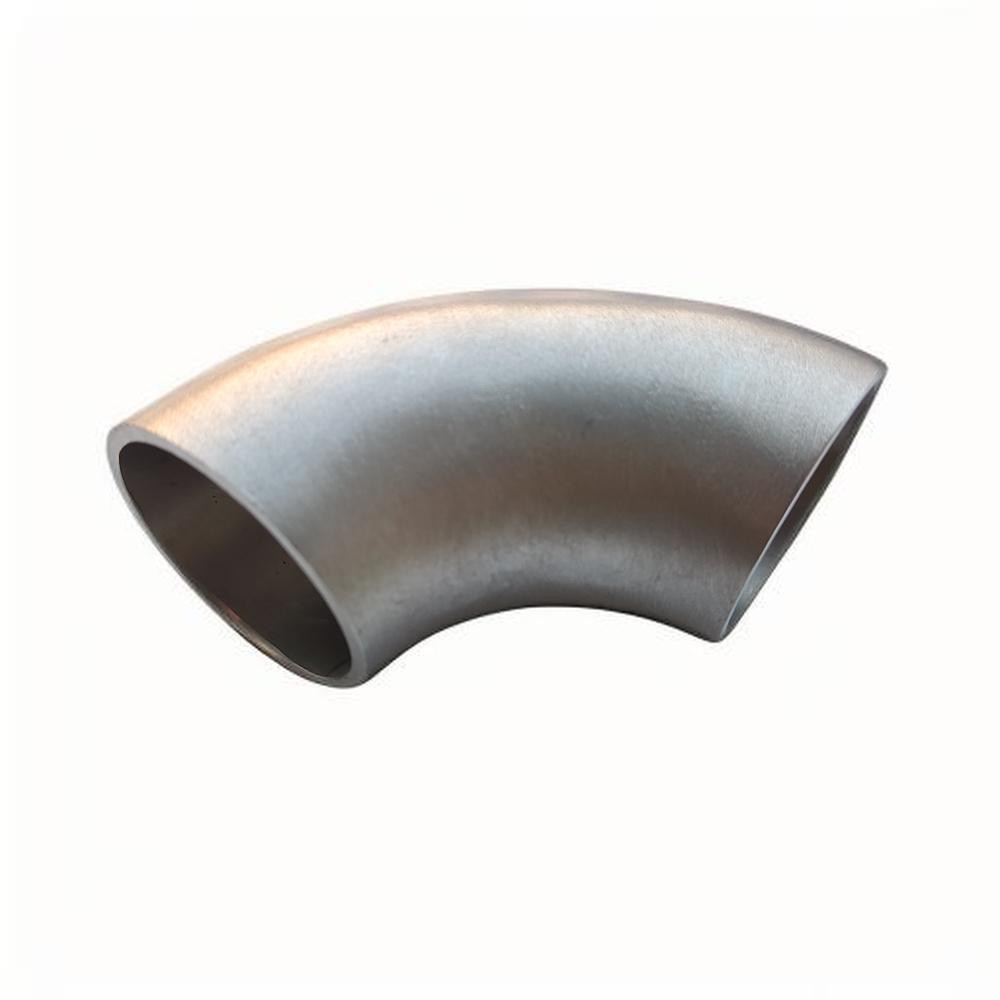

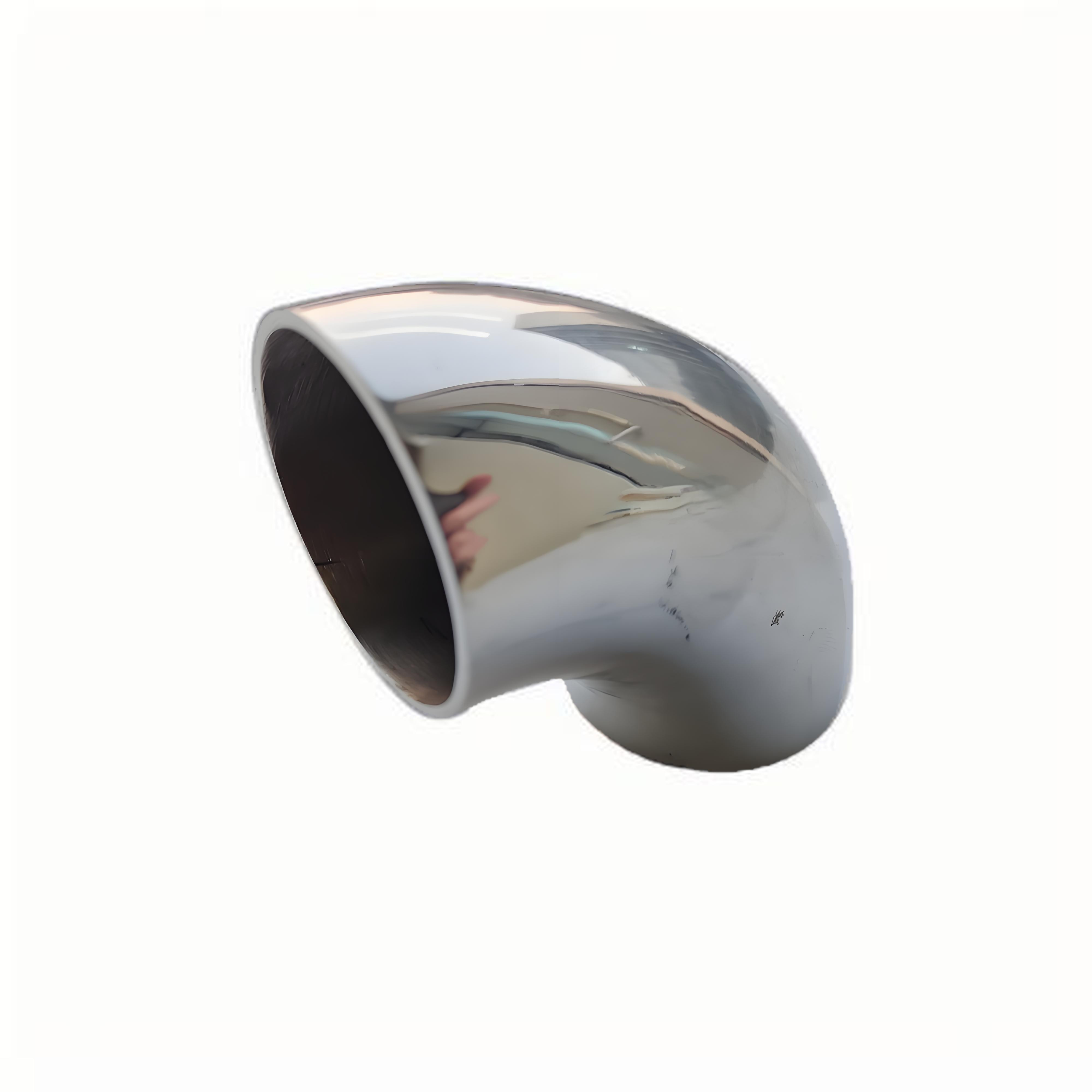

The solution annealed 316 stainless steel 90 degree long radius elbow, manufactured in full compliance with ASTM A403 WP316-S, is engineered for critical process piping systems where resistance to intergranular corrosion is paramount. The solution annealing heat treatment at 1040°C (1904°F) followed by rapid water quenching dissolves chromium carbide precipitates that form at grain boundaries during welding or hot forming operations. This metallurgical restoration re-homogenizes the austenitic microstructure, effectively re-sensitizing the material and restoring its inherent resistance to intergranular attack in acidic process environments. For chemical processing plants, refinery units, and petrochemical facilities where piping systems encounter hot organic acids, oxidizing media, and chloride-bearing process streams, this butt weld elbow fitting delivers the reliable long-term integrity that un-annealed alternatives cannot match.

The long radius (R=1.5D) geometry of this solution annealed elbow provides a smooth, gradual change in flow direction that minimizes turbulence-induced erosion and pressure loss compared to short radius configurations. Each ASTM A403 compliant fitting undergoes IGC (Intergranular Corrosion) testing per ASTM A262 Practice E (Strauss Test) to verify that the solution annealing process has achieved the required sensitization resistance. The butt weld beveled ends are machined to ASME B16.9 dimensions, ensuring consistent root gap and land face geometry for full-penetration GTAW or SMAW welding in the field. For engineers specifying piping systems per ASME B31.3 Process Piping or ASME B31.1 Power Piping codes, this solution annealed 316 stainless steel elbow represents a fully code-compliant, traceable, and documented fitting solution.

Technical Specifications

Key Advantages and Application Areas

• Restored Intergranular Corrosion Resistance: The solution annealing process at 1040°C followed by rapid quenching completely dissolves chromium carbides precipitated at grain boundaries, restoring the protective chromium oxide passive layer and eliminating susceptibility to intergranular attack in acidic media.
• Validated IGC Performance: Each heat treatment lot undergoes ASTM A262 Practice E Strauss testing using a boiling copper sulfate-sulfuric acid solution. The absence of intergranular cracking after 15-hour exposure and 180-degree bend testing provides documented proof of re-sensitization resistance.
• Full ASTM A403 Compliance: The solution annealed elbow conforms to all requirements of ASTM A403 including chemical composition (C ≤ 0.08%, Cr 16-18%, Ni 10-14%, Mo 2-3%), tensile properties (≥515 MPa UTS, ≥205 MPa YS), and flattening test acceptance criteria.
• Chemical Processing Plants: Essential for process piping carrying hot acetic acid, formic acid, phosphoric acid, and mixed organic acid streams at temperatures up to 400°C where sensitized 316 stainless would fail prematurely through intergranular corrosion.
• Refinery Hydroprocessing Units: Deployed in high-pressure reactor effluent piping, fractionator overhead systems, and sour water stripper circuits where the combination of elevated temperature and H2S-bearing environments demands both solution annealing and NACE MR0175 compliance.
• Petrochemical Ethylene Plants: Suitable for quench water, caustic wash, and pygas hydrogenation piping circuits where process-side corrosion combined with external insulation CUI (corrosion under insulation) conditions can drive intergranular attack in non-annealed fittings.
• Pharmaceutical and Fine Chemical: Selected for reactor jacket cooling loops, solvent recovery piping, and clean-in-place distribution headers where batch process cleaning with hot acidic solutions could otherwise cause grain boundary attack in welded or cold-worked stainless components.
• Nuclear Balance of Plant: Used in auxiliary cooling water, chemical and volume control, and waste processing systems at nuclear power stations, where ASTM A403 certified material with full traceability and IGC test reports is mandatory per ASME Section III procurement specifications.

Frequently Asked Questions

Q: Why is solution annealing critical for 316 stainless steel elbows used in chemical processing?

A: During the manufacturing of a butt weld elbow, the hot forming operation heats the material into the sensitization temperature range of 425-870°C (800-1600°F). In this range, chromium atoms combine with carbon at grain boundaries to form chromium carbide precipitates (Cr23C6). These precipitates deplete the adjacent grain boundary regions of chromium below the 12% threshold required for stainless steel passivity. The result is a microstructure that is susceptible to intergranular corrosion when exposed to acidic process media. Solution annealing the elbow at 1040°C redissolves these chromium carbides back into solution, and the rapid water quench locks the chromium in a homogeneous distribution throughout the austenite matrix. Without this heat treatment, a chemically exposed 316 elbow fitting can fail through grain boundary attack within months of service, even though the bulk material composition appears acceptable.

Q: How does long radius geometry benefit process piping compared to short radius elbows?

A: The long radius (R=1.5D) solution annealed elbow provides a more gradual flow path transition compared to the shorter R=1.0D geometry. For process piping applications, this results in approximately 30% lower pressure drop per fitting, reduced erosion rates in slurry or particulate-laden flows, and sufficient straight tangent length for proper radiography of the girth weld. Long radius is the default standard per ASME B31.3 and B31.1 for process and power piping unless space constraints specifically require a short radius elbow. For chemical processing plants where minimizing pumping energy and maximizing equipment life are operational priorities, the long radius ASTM A403 elbow delivers measurable total cost of ownership advantages over its short radius counterpart.

Q: What documentation accompanies each solution annealed 316 stainless steel elbow?

A: Each fitting is supplied with a comprehensive EN 10204 Type 3.1 certification package including: (1) chemical composition analysis of the originating heat with traceability to the mill certificate, (2) mechanical property test results (tensile strength, yield strength, elongation at fracture, and reduction of area), (3) the solution annealing time-temperature chart with quench medium specification, (4) ASTM A262 Practice E IGC test report with pass/fail determination and test parameters, (5) dimensional inspection report verifying conformance to ASME B16.9 tolerances including OD, wall thickness, center-to-face dimension, and bevel geometry, and (6) visual and surface condition inspection report. For NACE MR0175 compliant orders, we additionally provide hardness test results (≤22 HRC maximum) and a certificate of compliance statement verifying all sour service requirements have been met for this solution annealed elbow fitting.
