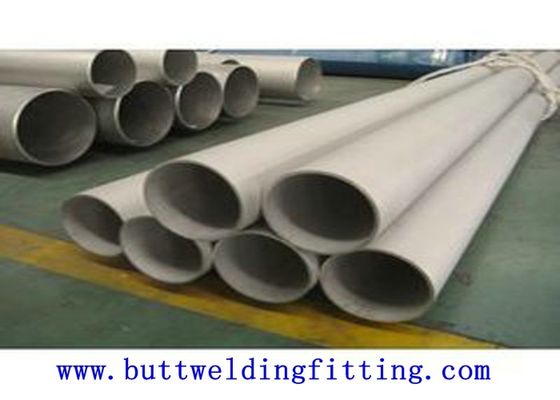

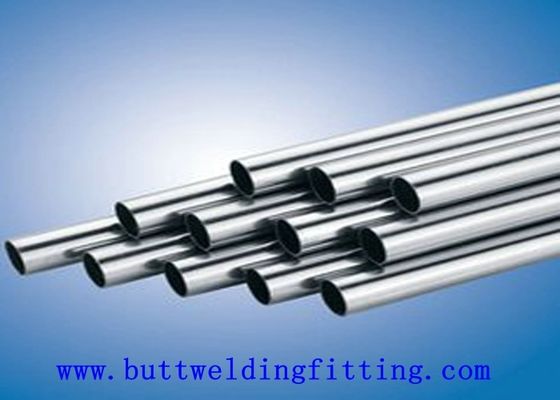

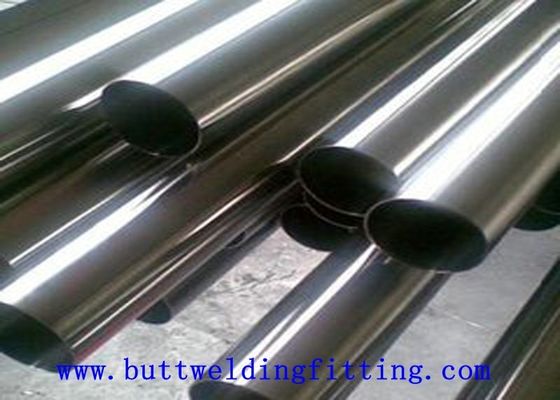

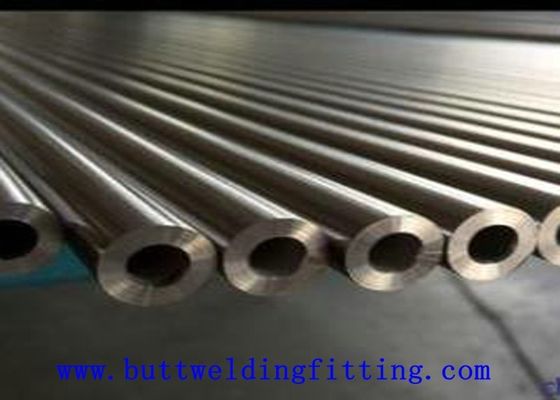

High Nickel Alloy Pipe EN10084-1998 DIN17210 16MnCr5/15NiCuMoNb5 W-Nr 1.6368

  • High Nickel Alloy Pipe EN10084-1998 DIN17210 16MnCr5/15NiCuMoNb5 W-Nr 1.6368
  • High Nickel Alloy Pipe EN10084-1998 DIN17210 16MnCr5/15NiCuMoNb5 W-Nr 1.6368
  • High Nickel Alloy Pipe EN10084-1998 DIN17210 16MnCr5/15NiCuMoNb5 W-Nr 1.6368
  • High Nickel Alloy Pipe EN10084-1998 DIN17210 16MnCr5/15NiCuMoNb5 W-Nr 1.6368
  • High Nickel Alloy Pipe EN10084-1998 DIN17210 16MnCr5/15NiCuMoNb5 W-Nr 1.6368
Place of Origin China
Brand Name TOBO
Certification ISO9001:2008
Model Number TOBO-17
Minimum Order Quantity 1 TON
Price negotiable
Packaging Details Thick Wooden Box Packing
Delivery Time 7-15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 500 TON PER MONTH
Product Details
Product Name TOBO Alloy Pipe Grade 10#-45#, 10Cr9Mo1VNb
Wall Thickness Sch10,20,30,40,60 Place Of Origin China
OD 1 - 26 Inch Length 3m-12m
Brand TOBO Standard ASTM / ASME, AISI,GB, DIN, JIS, Etc.
Highlight

Thin Wall Steel Pipe

,

Alloy Steel Seamless Pipe
Leave a Message
Product Description

15NiCuMoNb5 W-Nr 1.6368 High Alloy Welded Steel Pipe Price

Production Description:
1. Steel Grade: 15NiCuMoNb5 W-Nr 1.6368
2. Product name: 15NiCuMoNb5 W-Nr 1.6368 High Alloy Welded Steel Pipe Price
3. Length: 20m maximum
4. Outside diameter: 3mm - 219mm
5. Wall thickness: 0.5 - 35mm

Brife Introduction:

Alloy structural steel is provided with higher yield strength, tensile strength, endurance strength, yield ratio (about 0.85 generally ) enough plasticity and toughness.
The concentration of alloy element of this kind of steel is quite high, mainly are corrosion resistant steel, heat resistant steel, wear resistant steel, and other special steels of physical and chemical properties. Alloy structural steel has preferable mechanical property than that of carbon structural steel, high performance of heat treatment especially.
The alloy is usually produced by EAF /VD /LF followed by electroslag refining (ESR) if necessary for special purpose.
Bars and, where applicable, forgings are subjected to ultrasonic examination based on the different level according to the buyers' requirements.
Bars are usually supplied bright in the annealed condition.
Final heat treatment - heat treatment / QT


Comparision of Steel Grades:

GB 15NiCuMoNb5 Comparision of steel grades
AISI P36
DIN 1.6368


Chemical Composition:

Standard Grade C Si Mn P S Cr Mo Ni
GB 15NiCuMoNb5 ≤0.17 0.25-0.50 0.80-1.20 ≤0.030 ≤0.0250 0.30 0.25-0.50 1.00-1.30

Mechanical Properties-Hot working, Heat tratment and Hardness:
Hot working temperature /ºC: 1100~850
Heat treatment temperature /ºC|annealing / normalizing: 880~940
Heat treatment temperature /ºC|quenching: -
Heat treatment temperature /ºC|tempering: 550~690
HBW: -
(≥)|σb/MPa: 590~760
(≥)|σs/MPa: 410
(≥)|δ5(%): 16
(≥)|AKV/J: 41

Mechanical property under high temperature:
Yield strength σ0.2≥/MPa|200ºC: 363
Yield strength σ0.2≥/MPa|300ºC: 343
Yield strength σ0.2≥/MPa|350ºC: 333
Yield strength σ0.2≥/MPa|400ºC: 314
Yield strength σ0.2≥/MPa|450ºC: 284
Yield strength σ0.2≥/MPa|500ºC: -

Available Shapes:
Black bar /Flat bar / Square bar /Pipe, /Steel strip, /sheet
Bright - peeled + polishing, centerless grinding
Forged - ring, tube, pipe casing, discs, shaft

Typical Application:
Alloy structural steels are widely used in the filed of ship, vehicle, airplane,weapons, railway, bridges, pressure vessel, machine tools, mechanical components with a bigger sectional size and so on.
Mechanical gears, gear shaft, main axis, valve rod
Mechanical parts - connecting rod, bolt and nut
Multidiameter shaft
Pressure vessel, seamless pipe

Quality Assurance

Below inspection will be done in the production.

(1) ray detection---RT;

(2) ultrasonic testing---UT;

(3) Magnetic Particle Testing-MT;

(4) penetration testing-PT;

(5) eddy current flaw detection-ET

15NiCuMoNb5 W-Nr 1.6368 High Alloy Welded Steel Pipe Price15NiCuMoNb5 W-Nr 1.6368 High Alloy Welded Steel Pipe Price

Application

15NiCuMoNb5 W-Nr 1.6368 High Alloy Welded Steel Pipe Price



FAQ

Q: Are you a manufacturer or merely a trader?

A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are withhigh quality and competitive price.



Q: How do you guarantee the quality of your product?

A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.



Q: Delivery time?

A: We have ready stock for most of material grades in our warehouse. If the material don’t have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.



Q: What is the payment term?

A: T/T or L/C.



Q: Can you provide a sample for our testing before confirm the order?

A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
