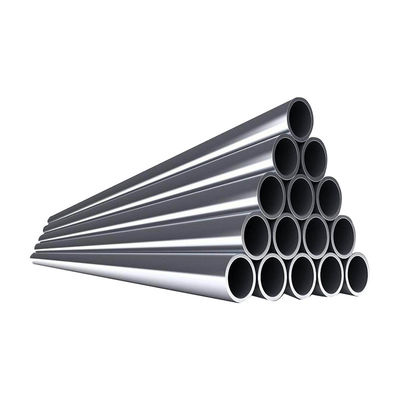

Inconel 625 Nickel Alloy Seamless Pipe Offshore Subsea Sour Service NACE MR0175 Certified

Inconel 625 Nickel Alloy Seamless Pipe for Offshore Subsea Sour Service

Inconel 625 (UNS N06625, EN 2.4856) nickel alloy seamless pipe is the industry-standard material for critical offshore subsea sour service applications where conventional stainless steels and even duplex grades cannot withstand the combined challenges of high hydrogen sulfide (H2S) partial pressures, extreme chloride concentrations, and elevated temperatures encountered in deepwater oil and gas production. The unique nickel-chromium-molybdenum-niobium composition delivers exceptional resistance to chloride pitting and crevice corrosion, sulfide stress cracking, and high-temperature oxidation, making it the preferred material specification for subsea wellhead jumpers, chemical injection lines, methanol injection tubing, hydraulic control lines, and process instrumentation connections on subsea production systems operating at water depths exceeding 3000 meters.

Fully certified to NACE MR0175/ISO 15156-3 for sour service with no environmental restrictions up to the maximum tested H2S partial pressures (Level VII), Inconel 625 seamless pipe eliminates the sulfide stress cracking risk that limits duplex and super duplex stainless steels in aggressive sour production environments. Each pipe undergoes solution annealing at 1090-1200 degrees Celsius followed by rapid quenching to achieve the specified mechanical properties and corrosion resistance, verified by full chemical analysis, tensile testing, hardness measurement (maximum 35 HRC per NACE), intergranular corrosion testing per ASTM G28 Method A, and 100 percent Positive Material Identification (PMI) using X-ray fluorescence spectroscopy. All documentation including the Mill Test Certificate (EN10204 3.1), NACE compliance certificate, and corrosion test reports is provided in English for client design verification and regulatory review.

Technical Specifications

Key Advantages for Offshore Subsea Sour Service

• Immunity to Chloride Stress Corrosion Cracking: Unlike austenitic stainless steels which are susceptible to chloride SCC above 60 degrees Celsius, Inconel 625 is essentially immune to chloride stress corrosion cracking at all practical service temperatures, providing unconditional reliability for subsea equipment where seawater ingress or produced water contact is unavoidable.
• NACE MR0175 Level VII Sour Service: Certified for the most severe sour service conditions with no environmental limits on H2S partial pressure, chloride concentration, or pH within the tested range, eliminating the sulfide stress cracking uncertainty that constrains duplex and super duplex stainless steel applications in aggressive deepwater production environments.
• Seawater Crevice Corrosion Resistance: The PREN value exceeding 50 (compared to 34 for 2205 duplex and 24 for 316L) guarantees freedom from crevice corrosion in stagnant seawater at all temperatures up to at least 40 degrees Celsius, critical for subsea equipment where marine growth, sediment accumulation, and tight crevices at gasket surfaces create aggressive corrosion conditions.
• Wide Temperature Capability: From cryogenic LNG temperatures of minus 196 degrees Celsius through to continuous high-temperature service at 980 degrees Celsius for oxidation resistance, Inconel 625 maintains its mechanical properties and corrosion resistance across a temperature range unmatched by any stainless steel grade, supporting applications from cryogenic gas processing to high-temperature wellstream production.
• Hydrogen Embrittlement Resistance: The face-centered cubic (FCC) austenitic crystal structure of nickel alloys provides inherently lower hydrogen diffusivity and higher solubility compared to ferritic and martensitic steels, dramatically reducing susceptibility to hydrogen embrittlement in cathodically protected subsea components and sour production environments with atomic hydrogen charging.
• Fatigue and Erosion-Corrosion Resistance: The high work hardening rate and solid-solution strengthening from molybdenum and niobium provide superior resistance to flow-induced erosion-corrosion in high-velocity multiphase production fluids containing sand and solid particles in subsea flowlines and choke body internals.

Applications

• Subsea Wellhead and Xmas Tree Components: Chemical injection lines, methanol injection tubing, annulus access lines, and hydraulic control tubing on subsea wellheads and Christmas tree assemblies operating in water depths up to 3000 meters with direct exposure to produced fluids containing H2S, CO2, chlorides, and elemental sulfur.
• Subsea Manifolds and Flowlines: Small-bore instrumentation tubing, pressure transmitter impulse lines, chemical injection quills, and sampling system interconnecting pipework on subsea production manifolds and pipeline end terminations (PLETs) requiring NACE compliance and seawater corrosion immunity.
• Umbilical Tube Bundles: Super-duplex tube bundles in steel tube umbilicals are being increasingly replaced by Inconel 625 for deepwater fields with aggressive production chemistry, providing enhanced fatigue life during dynamic umbilical service between the FPSO turret and seabed.
• Downhole Completion Equipment: Chemical injection mandrels, gas lift valve housings, subsurface safety valve control line tubing, and permanent downhole gauge cable encapsulation in high-pressure high-temperature (HPHT) wells with H2S and CO2 partial pressures exceeding 10 bar each.
• Topsides Process Piping: Produced water treatment chemical injection, well test separator inlet piping handling raw multiphase production, flare knockout drum drain lines, and closed drain systems handling aggressive fluids on offshore production platforms and FPSOs.

Frequently Asked Questions

Q: Why is Inconel 625 specified for offshore subsea sour service instead of super duplex stainless steel?
A: While super duplex stainless steels like UNS S32750 (2507) offer an excellent combination of strength and corrosion resistance for many offshore applications, they have defined environmental limits under NACE MR0175/ISO 15156 that restrict their use in severe sour conditions. Super duplex grades are limited to approximately 0.1-0.2 bar H2S partial pressure at ambient temperature with up to 10 percent NaCl brine at pH 4.5 or above. Inconel 625 faces no such environmental restrictions under NACE MR0175 Level VII, making it the default material specification when H2S levels, chloride concentrations, or elemental sulfur presence exceed duplex limits. Additionally, Inconel 625 provides superior crevice corrosion resistance in seawater (PREN over 50 versus 41 for super duplex), which is critical for subsea equipment that cannot be inspected or maintained after installation.

Q: What is the typical lead time for Inconel 625 seamless pipe and what documentation is provided?
A: Standard production lead time for Inconel 625 seamless pipe is 20-35 working days from order confirmation, depending on dimensions, quantity, and current mill production scheduling. Mill stock availability for common sizes (1/2 inch to 4 inch NPS in SCH 40S and SCH 80S) can reduce delivery to 10-15 working days. Documentation provided with each shipment includes: Material Test Certificate per EN10204 3.1 showing chemical composition, tensile and yield strength, elongation, hardness, and heat treatment parameters; NACE MR0175/ISO 15156 compliance certificate; Positive Material Identification (PMI) report for 100 percent of pipes; ASTM G28 Method A intergranular corrosion test report; ultrasonic and eddy current test reports; hydrostatic test certification; and dimensional inspection report. EN10204 3.2 certification with third-party inspector witness from DNV, ABS, Bureau Veritas, or Lloyd's Register is available upon request.

Q: How does Inconel 625 perform in seawater with cathodic protection applied?
A: Inconel 625 is fully compatible with cathodic protection (CP) systems commonly used on offshore structures and subsea equipment. Unlike high-strength low-alloy steels that are susceptible to hydrogen embrittlement under CP, or titanium alloys that can suffer hydride formation at very negative potentials, Inconel 625 maintains its mechanical properties and corrosion resistance under CP conditions. The inherent resistance to hydrogen embrittlement combined with the exceptional seawater corrosion resistance means Inconel 625 components can be safely connected to the same CP system protecting the carbon steel structure without requiring electrical isolation. This simplifies subsea design by eliminating the need for dielectric isolation joints and their associated maintenance and inspection requirements.

Q: Is post-weld heat treatment required for Inconel 625 pipe in sour service?
A: For most subsea sour service applications using the solution-annealed Grade 1 per ASTM B444, post-weld heat treatment (PWHT) is generally not required when using matching composition Inconel 625 filler metal (ERNiCrMo-3) with qualified welding procedures. The alloy design prevents sensitization during welding through the niobium-stabilized chemistry, which forms stable niobium carbides in preference to chromium carbides, maintaining the chromium content in solid solution for corrosion resistance. However, for the most critical NACE MR0175 applications, some end-users specify solution annealing at 1090-1200 degrees Celsius after welding to eliminate weldment micro-segregation and ensure uniform corrosion resistance throughout the welded assembly. We recommend consulting the specific project welding specification and corrosion engineer for definitive PWHT requirements based on the actual service conditions and design code requirements.
