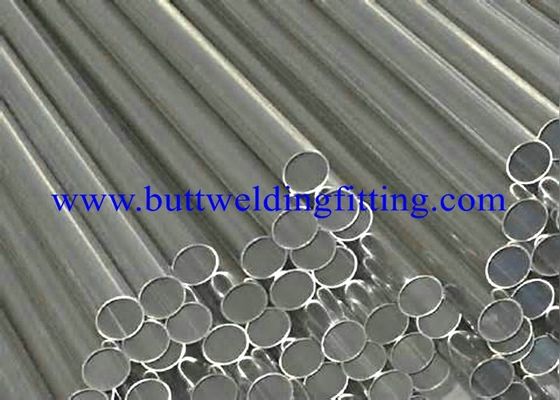

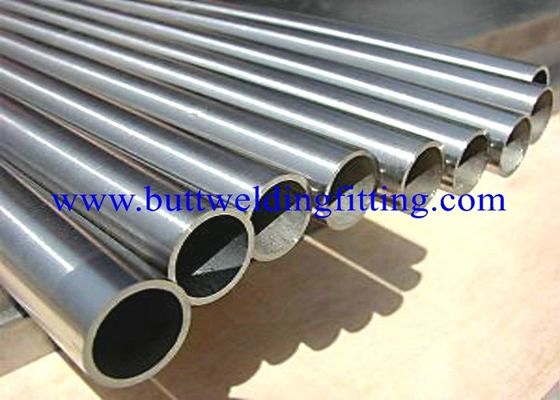

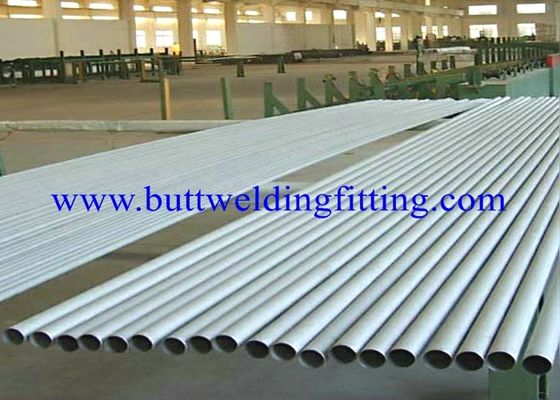

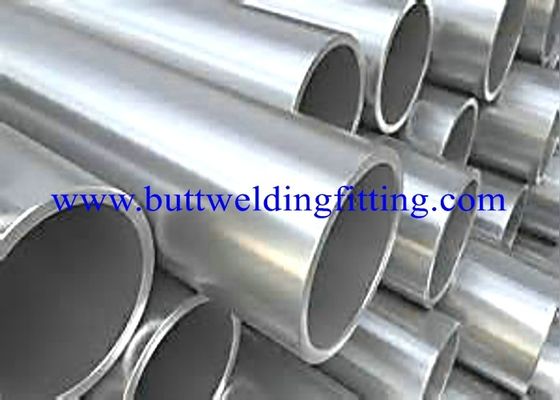

Nickel Based Alloy Pipe Inconel 718 High Strength Corrosion Resistant ASME SB444 for Aerospace

  • Nickel Based Alloy Pipe Inconel 718 High Strength Corrosion Resistant ASME SB444 for Aerospace
  • Nickel Based Alloy Pipe Inconel 718 High Strength Corrosion Resistant ASME SB444 for Aerospace
  • Nickel Based Alloy Pipe Inconel 718 High Strength Corrosion Resistant ASME SB444 for Aerospace
  • Nickel Based Alloy Pipe Inconel 718 High Strength Corrosion Resistant ASME SB444 for Aerospace
  • Nickel Based Alloy Pipe Inconel 718 High Strength Corrosion Resistant ASME SB444 for Aerospace
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Nickel Alloy Pipe
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10 Ton/Month
Product Details
Product Name Nickel Based Alloy Pipe Inconel 718 High Strength Corrosion Resistant ASME SB444 For Aerospace Molybdenum Content 2.5-3.5
Quality Good Quality Diameter 10mm - 500mm
Temperatureresistance Up To 1100°C Product Type Flange, Disc, Foring, Shaft Sleeves
Melting Point 1350 - 1400°C Description N06601/6023 Nickel Alloy Pipe Tubes
Process Method Cold Drawn/ Cold Rolled Specification ASTM B165, ASME SB165
Color Sliver Or As Request Ends Bevled End, Plain End, Thread End
Density 8.9 G/cm³ Outer Diameter 6-813mm
Sch 40 Inner Diameter Customized
Leave a Message
Product Description

Nickel Based Alloy Pipe Inconel 718 High Strength Corrosion Resistant ASME SB444 for Aerospace



1. Product Description



Nickel alloy pipe is a special alloy tubular product with nickel as the matrix, alloyed with molybdenum, chromium, cobalt, aluminum, iron, etc., available in seamless and welded configurations. The manufacturing process employs a duplex route of vacuum induction melting plus electroslag remelting to ensure cleanliness and compositional uniformity, followed by hot extrusion, multi-pass cold rolling and cold drawing, combined with intermediate bright annealing, to finally obtain dimensionally accurate tubes with superior surface quality. Representative grades include Hastelloy B-3 (Ni-Mo series, offering exceptional resistance to strong reducing acids such as hydrochloric and sulfuric acids) and Inconel 617 (Ni-Cr-Co-Mo series, combining high-temperature strength and oxidation resistance). Products are supplied in solution-treated, stress-relieved, or cold-worked conditions, with tube ends beveled or plain, and surfaces pickled, bright-annealed, or centerless ground to suit different joining methods including welding, expanding, or threading. Each tube undergoes grain size assessment and corrosion testing to verify its suitability for severe service conditions.

2. Product Applications

  • Fine chemicals : Hydrochloric acid regeneration towers, acetic acid cracking furnace tubes, pharmaceutical intermediate synthesis reactors, and distillation systems (B-3).

  • Aerospace propulsion: Gas turbine combustor transition sections, turbine casing cooling tubes, and tailpipe high-temperature liners (617).

  • Petrochemical units: Butadiene extraction towers, styrene condenser tube bundles, and overhead lines in crude atmospheric/vacuum distillation units processing sour crude.

  • Nuclear reactor systems: Intermediate heat exchanger tubes in high-temperature gas-cooled reactors (HTGR), and liquid metal cooling circuit piping.

  • Heat treatment & metal processing: Radiant tubes in continuous annealing lines, electrode protection tubes in salt bath furnaces, and laminar cooling system piping in rolling mills.

  • Waste incineration & biomass power: High-temperature superheater tubes, water wall tubes, and flue gas reheater tube bundles.

  • Electrochemistry & battery manufacturing: Sintering furnace tubes for lithium battery cathode materials, and anolyte circulation lines in electrolytic cells.

3. Product Advantages

  1. Excellent corrosion resistance in strong reducing acids: B-3 exhibits extremely low uniform corrosion rates in hydrochloric, sulfuric, and formic acids, with good immunity to pitting and crevice attack, making it one of the few viable metallic materials in such environments.

  2. Ultra-high temperature creep strength and rupture life: 617 maintains high tensile strength and creep rupture life in the range of 800~1100℃, outperforming most superalloys and suitable for prolonged thermal exposure.

  3. Resistance to thermal fatigue and thermal shock: Both alloys possess excellent thermal cycling stability, resisting cracking under frequent start-stop or severe temperature fluctuation conditions.

  4. Fabrication flexibility: Can be formed by conventional welding, bending, and machining without requiring post-weld heat treatment, simplifying equipment manufacturing processes.

  5. Resistance to chloride and fluoride attack: High resistance to halide-induced stress corrosion cracking, suitable for chlorine/fluorine-bearing acidic process streams.

Nickel Based Alloy Pipe Inconel 718 High Strength Corrosion Resistant ASME SB444 for Aerospace

4.Key Technical Parameters

Item Typical Value / Range
Common Grades Hastelloy B-3 (UNS N10675), Inconel 617 (UNS N06617)
Chemical Composition (B-3) Ni balance, Mo 27~32%, Cr 1.0~3.0%, Fe 1.0~3.0%, Co ≤3.0%, C ≤0.01%, Mn ≤3.0%, W ≤3.0%, Al ≤0.50%, Ti ≤0.20%, S ≤0.030%
Chemical Composition (617) Ni balance, Cr 20~24%, Co 10~15%, Mo 8~10%, Fe ≤3.0%, C 0.05~0.15%, Mn ≤1.0%, Si ≤1.0%, Al 0.8~1.5%, Ti ≤0.6%, S ≤0.015%
Mechanical Properties at RT (B-3) Tensile ≥758 MPa, Yield ≥310 MPa, Elongation ≥25%, Hardness HRB≤100
Mechanical Properties at RT (617) Tensile ≥690 MPa, Yield ≥310 MPa, Elongation ≥35%, Hardness HB≤220
High-temp Properties (617) Tensile at 800℃ ≥440 MPa, at 1000℃ ≥270 MPa (reference values)
Physical Properties (B-3) Density 9.2 g/cm³, Melting range 1370~1418℃, Conductivity 10.9 W/(m·K) (20℃), CTE 10.6×10⁻⁶/℃ (20-100℃)
Physical Properties (617) Density 8.36 g/cm³, Melting range 1330~1380℃, Conductivity 13.4 W/(m·K) (20℃), CTE 11.6×10⁻⁶/℃ (20-100℃)
Size Range (Seamless) O.D. φ6~φ610 mm, W.T. 0.5~50 mm
Size Range (Welded) O.D. φ10~φ2500 mm, W.T. 1~60 mm
Dimensional Tolerances O.D. ±0.5% (min. ±0.10 mm), W.T. ±12.5% (min. ±0.10 mm), Straightness ≤1.5 mm/m
Surface Roughness Bright annealed Ra≤0.4 μm, Pickled Ra≤3.2 μm, Ground Ra≤0.8 μm
Heat Treatment Condition B-3: Solution annealed 1065~1095℃ rapid cooling; 617: Solution annealed 1100~1175℃ water quench
Non-destructive Testing Ultrasonic (ASTM E213) or Eddy current (ASTM E309), hydrostatic test on each tube
Applicable Standards Seamless: ASTM B622 (B-3), ASTM B546 (617); Welded: ASTM B619/B751; ASME SB-622/SB-546; EN 10216-5; GB/T 15007; NB/T 47019

FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
