Place of Origin: | China/Japan/Germany |
---|---|
Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
Certification: | ISO/PED/TUV/SGS/LR/BV |
Model Number: | inconel 718 flange |
Minimum Order Quantity: | 0.5-1 tons |
Price: | negotiable |
Packaging Details: | in plastic bags then in bundles |
Delivery Time: | 15days-> |
Payment Terms: | T/T, L/C, Western Union, MoneyGram |
Supply Ability: | 7500 tons per year |
Standard:: | DIN, ANSI, ISO, GB, JIS | Application: | Fluid Pipe,Structure Pipe |
---|---|---|---|
Surface: | Annealed & Pickled, Bright Annealing, Polished | Types:: | WN SO BL |
Thickness: | 0.5-100mm | Outer Diameter: | 6-813mm |
Material: | Nickel Alloy | Sample: | Provided,Free,Available Free Within 7days |
Quantity(tons) | 1 - 100 | >100 |
Lead time (days) | 20 | To be negotiated |

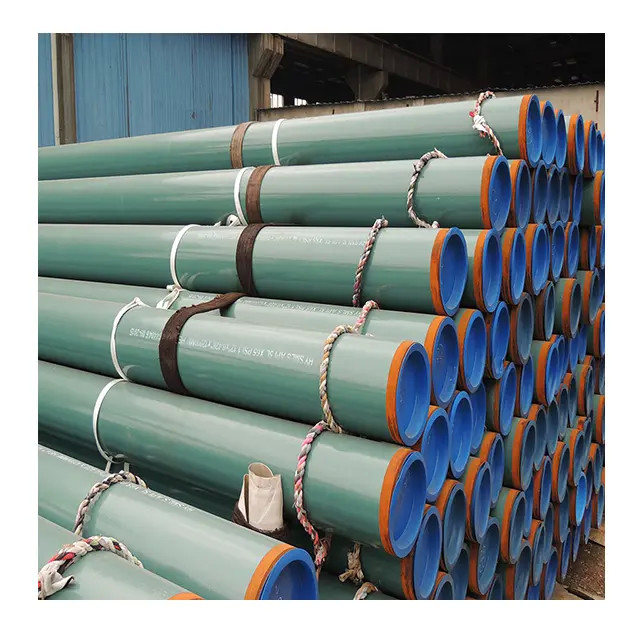

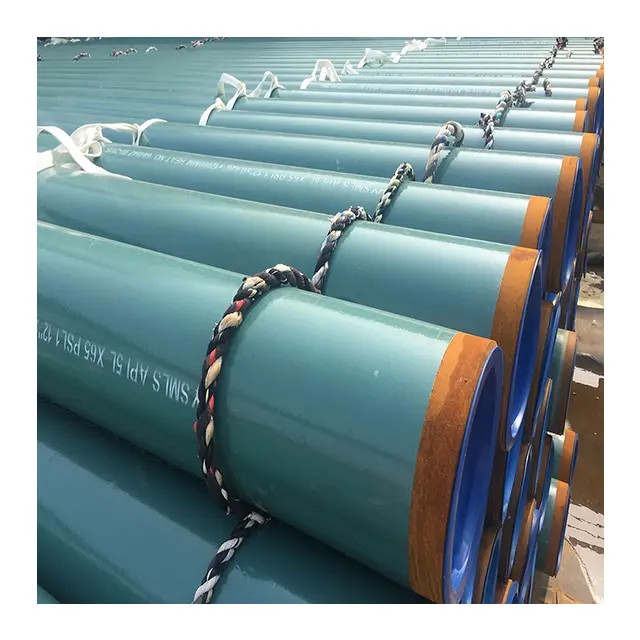

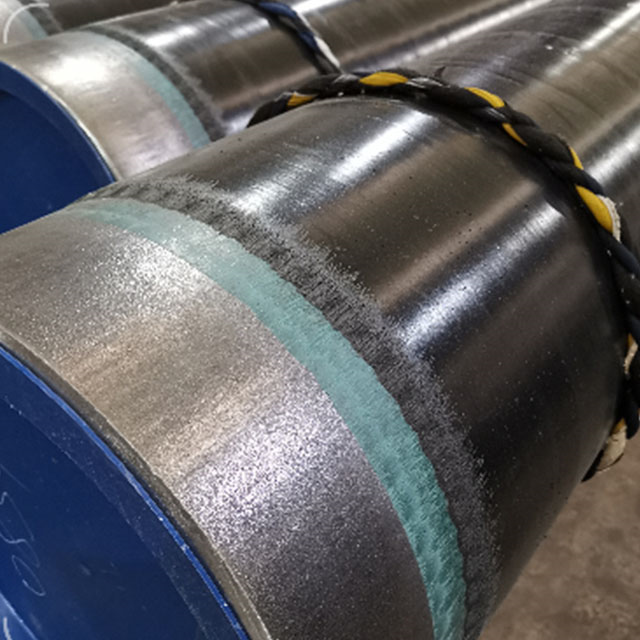

API 5L PSL2 X52 Seamless Fusion Bonded Epoxy Thermosetting Powder /FBE Coating Line Pipe Carbon Steel
Name | API 5L PSL2 X52 Seamless Fusion Bonded Epoxy Thermosetting Powder /FBE Coating Line Pipe Carbon Steel |
Grade Group | 10#, 20#, A53, A106, API 5L, X42-X70, L245-L360 |
Standard | SY/T0315,CAN/CSA Z245.20,AWWA C213,Q/CNPC 38,etc. |
Technique | Hot rolled |
Surface Treatment | Fusion bonded epoxy |
Thickness | 32-1620mm |
Length | 5.8-12m |
Shape | Round |
Features | Excellent adhesive strength, high insulation resistance, resistance to soil stress, anti-aging, anti-cathode stripping, anti-high temperature, resistance to bacteria and small cathodic protection current(only 1-5uA/sq.m), etc. |
Function | Anticorrosion and resistance-reducing |
Application | Widely used in long-distance anti-corrosion pipelines on land and underwater. |
Fusion bonded epoxy coating material is thermosetting material, it is consist of solid epoxy resin, curing agent and various additives by mixing, grinding. When performing, steel tube was heated to 220-230 Celsius degree, then epoxy powder is sprayed on the surface of the pipe by electrostatic adsorption method, fusion bonded epoxy powder is heated and cooled melt adhesive curing. Single-layer fusion bonded epoxy coating thickness is about 300-500um, DPS (Double layer FBE) thickness is controlled in 450-1000um.
Fusion bonded epoxy coating has the properties of excellent adhesive strength, high insulation resistance, resistance to soil stress, anti-aging, anti-cathode stripping, anti-high temperature, resistance to bacteria and small cathodic protection current(only 1-5uA/sq.m), etc. But there are also poor performances against mechanical impact, high water absorption and other shortages.
Our fusion bonded epoxy coating perform the standards as per SY/T0315,CAN/CSA Z245.20,AWWA C213,Q/CNPC 38,etc.
Fusion bonded epoxy anticorrosion coated steel pipes used in:
1. In bulk 2. Packaged in Bundles 3. Plastic end cap
4. Or as per customer's requirement
1. By truck 2. By rail 3. By sea
More than 120 top-class mills
A number of advanced equipments
Company with a variety of detection devices
We have five branch factories
If the quantity of order is not very big,we could send them to you by express delivery,such as TNT,DHL,UPS OR EMS etc.
If order is big ,we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent.Our long-term cooperated agent also available.
