Place of Origin: | China/Japan/Germany |
---|---|
Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
Certification: | ISO/PED/TUV/SGS/LR/BV |
Model Number: | ASTM B444 ASME SB444 |
Minimum Order Quantity: | 100KGS |
Price: | negotiable |
Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
Delivery Time: | 10days-> |
Payment Terms: | T/T or western Union or LC |
Supply Ability: | 1500 tons per month |
Standard: | ASTM B444 And ASME SB444 UNS N06625 | Color: | White Silver Gold |
---|---|---|---|
Types: | Nickel Alloy Pipe | Outer Diameter: | 6mm-710mm |
Highlight: | Alloy Steel Seamless Pipe,Steel Round Pipe |

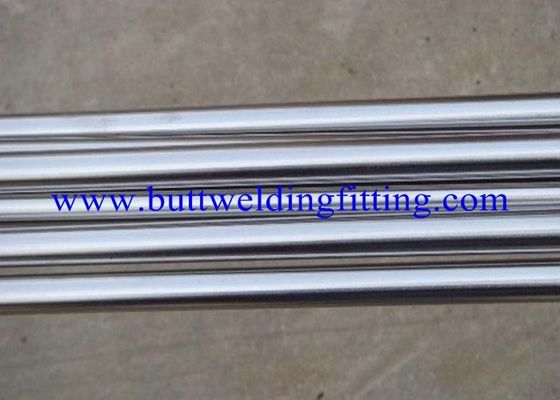

Alloy 625, Inconel® 625 Nickel Alloy Pipe ASTM B444 and ASME SB444 UNS N06625
Alloy 625 is a Nickel, Chromium, Molybdenum alloy with added niobium which combines with the molybdenum to strengthen the matrix of the alloy to give high strength without having to carry out additional strengthening heat treatments.
Chemipetro supplies Alloy 625 in the following Product Forms:
Seamless pipe to ASTM B444 and ASME SB444
Welded pipe to ASTM B705 and ASME SB705
Flanges to ASTM B564 and ASME SB564
Fittings to ASTM B366 and ASME SB366
Bar to ASTM B446 and ASME SB446
Plate to ASTM B443 and ASME SB443
Chemical Composition
Nickel (plus cobalt) ......................................................99.0 min.
Copper........................................................................0.25 max.
Iron..............................................................................0.40 max.
Manganese .................................................................0.35 max.
Carbon........................................................................0.15 max.
Silicon .........................................................................0.35 max.
Sulfur ..........................................................................0.01 max
Physical Properties of Nickel Alloy 200/201 in the Annealed Condition at -20°F to +100°F
|
|
|
Tensile Strength |
Yield Strength |
|
|
|
|
|
|
|
|||||||||||||||||||||||||
Alloy |
UNS Designation |
Spec. |
psi |
MPa |
ksi |
psi |
MPa |
ksi |
Elongation in 2 in. (min.) % |
Grain Size Req. |
Max. Hardness |
Modulus of Elasticity (x106psi) |
Mean Coefficient of Thermal Expansion ((IN./IN./°F x 10-6) |
Thermal Conductivity (BTU-in/ ft2-h-°F) |
|
|||||||||||||||||||||
200 |
N02200 |
B725, B730 |
55,000* |
380* |
55 |
15,000* |
105* |
15 |
35* |
— |
— |
30.0 |
7.4 |
533 |
||||||||||||||||||||||
201 |
N02201 |
B725, B730 |
50,000* |
345* |
50 |
12,000* |
80* |
12 |
35* |
— |
— |
30.0 |
7.4 |
533 |
||||||||||||||||||||||
*Annealed Condition
Composition of Nickel Alloy 200/201 tubing and pipe
Grade |
200 |
201 |
|
||
UNS Designation |
N02200 |
N02201 |
|
||
Nickel (Ni) |
99.0 Min. (Plus Cobalt) |
99.0 Min. (Plus Cobalt) |
|||
Chromium (Cr) |
— |
— |
|||
Iron (Fe) |
0.40 Max. |
— |
|||
Molybdenum (Mo) |
— |
— |
|||
Titanium (Ti) Max. |
— |
— |
|||
Aluminum (Al) Max. |
— |
— |
|||
Cobalt (Co) Max. |
— |
— |
|||
Tungsten (W) |
— |
— |
|||
Vanadium (V) Max. |
— |
— |
|||
Copper (Cu) Max. |
0.25 |
0.25 |
|||
Manganese (Mn) Max. |
0.35 |
0.35 |
|||
Niobium (Nb) plus Tantalum |
— |
— |
|||
Carbon (C) Max. |
0.15 |
0.02 |
|||
Nitrogen (N) Max. |
— |
— |
|||
Silicon (Si) Max. |
0.35 |
0.35 |
|||
Sulphur (S) Max. |
0.01 |
0.01 |
|||
Phosphorous (P) Max. |
— |
— |
|||
Other Elements |
— |
— |
|||
Nickel Alloy 200/201 Product Range
Alloy |
UNS Designation |
Werkstoff NR. |
Specifications* |
|
|||
200 |
N02200 |
2.4066 |
B161, B163 |
||||
201 |
N02201 |
2.4061 |
B161, B163 |
Nickel Products
NICKEL PIPES and TUBES: All types of seamless & welded pipes & tubes are available in all sizes and grades. Grade: Nickel 200 (UNS 02200), Nickel 201 (UNS 02201), Nickel 205 (UNS 205) |
