L / SR Tubing Stainless Steel Elbow Inconel 625 180 Degree Pipe Elbow

Basic Information

Place of Origin:	China
Brand Name:	TOBO
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	Inconel 625

Minimum Order Quantity:	1PC
Price:	negotiation
Packaging Details:	PLY-WOODEN CASE OR PALLET
Delivery Time:	15 work days
Payment Terms:	T/T, D/P, D/A, Western Union
Supply Ability:	9800000PCS Per month

Get Best Price Contact Now

Product Name:	Stainless Steel Bend	Standard:	ANSI/ASME , EN, DIN,JIS,GOST Etc.
Type:	Elbow,Tee,Reducer,Cap,Flange,Pipe	Application:	Industrial
Technology:	Cold Forming	Thickness::	1 - 60
Surface Treatment::	Sand Blasting,Sand Rolling, Sand Blasting	Radius:	2D 3D 5D
Material::	Stainless Steel, Stainless Steel 304,316L,310,321H,347
Highlight:	Stainless Steel 90 Degree Elbow , Butt Welding Elbow

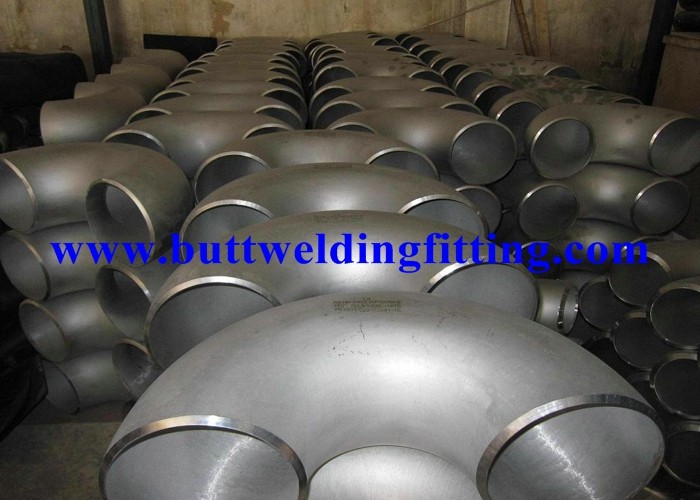

L / SR Tubing Stainless Steel Elbow Inconel 625 180 Degree Pipe Elbow

Quick Details

Material:	Inconel 625, etc	Technics:	Forged	Type:	180 Degree Elbow
Place of Origin:	Shanghai, China (Mainland)	Model Number:	pipe elbow	Brand Name:	TOBO
Connection:	Welding, Weld	Shape:	Equal	Head Code:	Round

Packaging & Delivery

Packaging Detail:	Plywood case or fumigation woodern case
Delivery Detail:	Usually 2-10 days depend on the quantity

Specifications

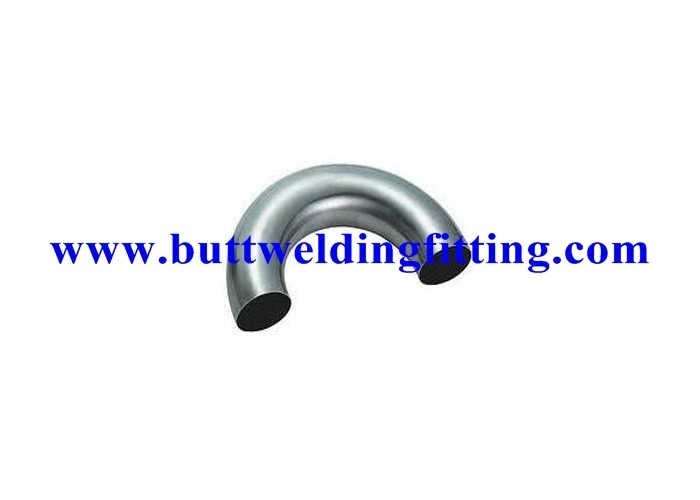

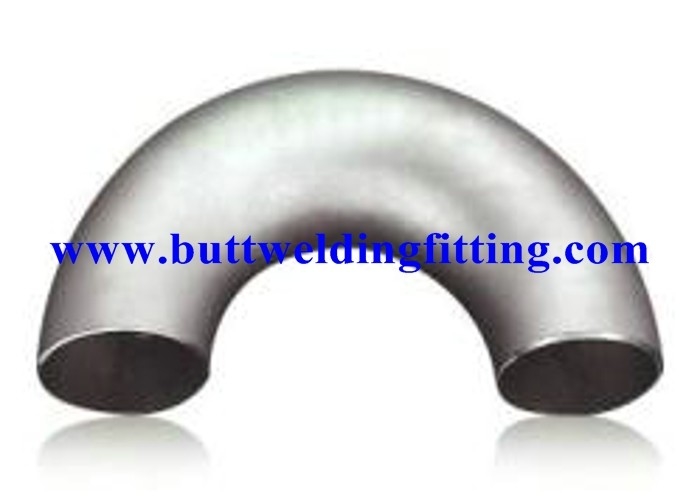

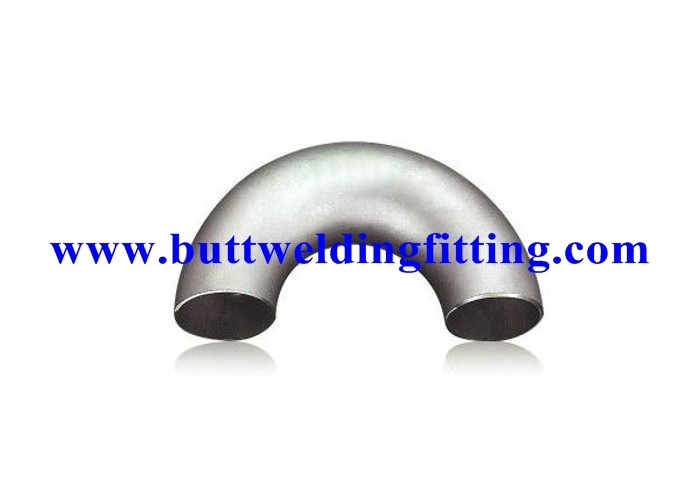

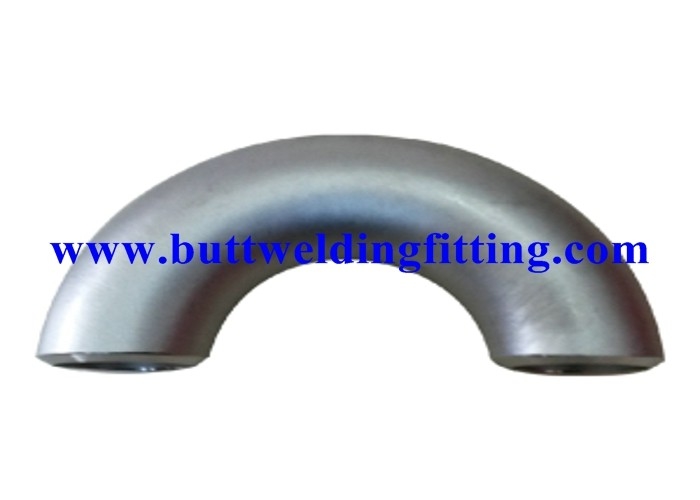

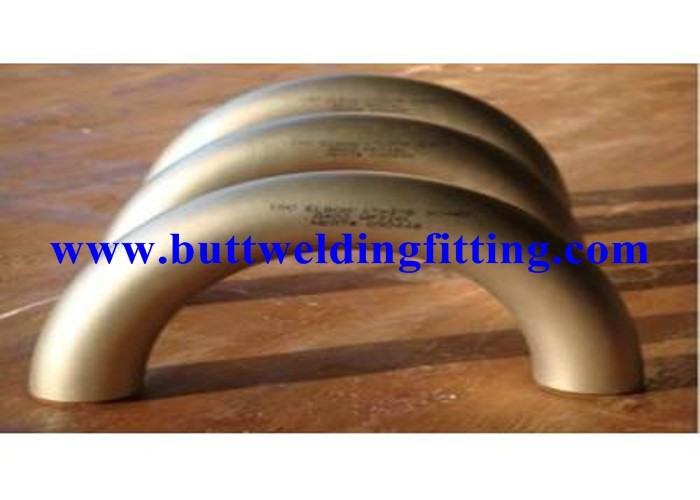

Inconel 625 180 Degree Elbow

1) Size: 1/2"~48" (DN15 - DN1200)

2) THK: SCH5S - SCH160 XXS

3) Material: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800,

Hastelloy C276, Hastelloy C22, Hastelloy B1/B2/B3, Alloy 20, etc

180 Degree Elbow is mainly used for connecting two pipes or tubes, allowing a change of direction. We can provide short radius elbows and long radius elbows.

Usually, 180 Degree Elbow is made of duplex stainless steels, stainless steels, alloy steels, and more.

Description Of Inconel 625 180 Degree Elbow

Type	180 Degree Elbow
Size	SMLS Elbow: 1/2"~24" (DN15 - DN600) Welded Elbow: 1/2"~48" (DN15 - DN1200)
Wall thickness	sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, etc
Standards	ASME, ASTM, DIN, JIS, etc
Material	Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2,etc Stainless Steel: ASTM A182 F304/304L/316/316L, etc Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc. Duplex stainless steel: ASTM A182 F51/F53/F55/F60, etc Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800, Hastelloy C276, Hastelloy C22, Hastelloy B1/B2/B3, Alloy 20, etc Cu-Ni: 90/10,70/30, etc
Surface treatment	Transparent oil, rust-proof black oil or hot galvanized
Applications	Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

Specifications - Inconel 625 180 Degree Elbow

Standard	Inconel 625
UNS	N06625
Werkstoff Nr.	2.4856

Chemical Composition Of Inconel 625 180 Degree Elbow

Weight %	Ni	Cr	Mo	Nb + Ta	Fe	Ti
Alloy 625	58.0 min	20 - 23	8 -10	3.15 -4.15	5.0 max	0.40 max
C	Mn	Si	S	P	Al	Co
0.10 max	0.50 max	0.50 max	0.15 max	0.15 max	0.40 max	1.0 max

Mechanical & Physical Properties – Inconel 625

Density	8.4 g/cm3
Melting Point	1350 °C (2460 °F)
Tensile Strength	Psi – 135,000 , MPa – 930
Yield Strength (0.2%Offset)	Psi – 75,000 , MPa – 517
Elongation	42.5 %

What are the characteristics of Inconel 180 Degree Elbow?

1, Excellent corrosion resistance in reducing environments

2, Exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides

3, High nickel and molybdenum contents providing good corrosion resistance in reducing environments

4, Low carbon content which minimizes grain-boundary carbide precipitation during welding to in heat-affected zones of welded joints

5, Resistance to localized corrosion such as pitting and stress-corrosion cracking

6, One of few materials to withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide

Design Features - UNS N06625 Inconel 625

1, Outstanding corrosion resistance and oxidizing environments.

2, Excellent resistance to pitting and stress-corrosion cracking.

3, Maintains corrosion resistance in welded joints.

Application of Inconel 625 180 Degree Elbow

1. Petrochemical industry

2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry

5. Architectural decoration industry

5. Oil and Gas Pipeline industry

Other Features:

1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant

2) We also produce pipe fittings with special specifications according to customers’ requirements;

Inconel 625 180 Degree Elbows Packing & Shipping

1) Packing Method:

Normal packing: plastic film or bubble paper wrapped on product's surface ,protect ends with caps , pack with wooden case or load on fumifation plywood pallet .

Custom made as customers request .

2) Shipping Way:

Usually by Sea, By Air, By Train or River-and-Sea Coordinated Transport.

As per customer's request.
