A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded

A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded
A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded
Basic Information
Place of Origin: China/Japan/Germany
Brand Name: TOBO/TPCO/TISCO/VALIN/METAL
Certification: ISO/PED/TUV/SGS/LR/BV
Model Number: Carbon Steel Pipe
Minimum Order Quantity: 1m
Price: Depending on length
Packaging Details: WOODEN CAS
Delivery Time: 30DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 TONS per mouth
Get Best Price Contact Now
Material: Carbon Steel Size: 1/2’’~48’’(Seamless); 16’’~72’’(Welded)
Wall Thickness: Sch5~SCH XXS Standard: ASME/ANSI B16.9,
Outer Diameter: From 6mm To 800mm Thickness: 1mm To 150mm
Highlight:

API 5L Line Pipe

,

API Seamless Pipe

API Carbon Steel Pipe A234M WP5, Size 1/2’’~48’’(Seamless)16’’~72’’(Welded)



Size 1/2’’~48’’(Seamless); 16’’~72’’(Welded)
Wall Thickness Sch5~SCH XXS
Angle 45,90,180,60,etc according to customer’s requirements.
Radius LR(long radius:R=1.5D);SR(short radius:R=1.0D)
Manufacturing Process Push,Press,Forge,Cast,etc.
Standard

ASME/ANSI B16.9, B16.11, B16.28, B16.5; MSS SP-43,83,97;

JIS B2311,B2312,B2313,B2316;SB3406,3408,3409,3410; SY/T0510-1998, SY5257-91
Carbon Steel

ASTM A694 F42,F46,F48,F50,F52,F56,F60,F65,F70; ASTM A234 WPB,WPC;

ASTM A420 WPL6,WPL3;

ASTM A105;ASTM A860 WPHY42,WPHY52,WPHY60,WPHY65,WPHY70;

ASTM A350 LF1,LF2,LF3; ASTM A266 GR.1,GR.2,GR.3,GR.4
Stainless Steel

ASTM / ASME A/SA 182 F 304, 304L, 304H, 309S, 309H, 310S, 310H,316, 316TI,316H,

316L,316LN, 317, 317L, 321, 321H, 347, 347H,348,348H,F40/S31254,F20/N08020,

F45/S30815,F46/S30600,F47/S31725,F48/S31726,F49/S34565, F56/S33228,

F58/S31266,F62/N08367/1.4529
Alloy Steel

ASTM/ ASME S/A234/ A 234M WP5,WP9,WP11,WP12,WP22, WP9;

ASTM/ ASME S/A182/ A 182M F5, F5a , F9, F11, F12, F22, F91;

ASTM/ ASME S/A336/ A 336M F5, F9, F11, F12, F22, F91.
Duplex&Super Duplex Stainless Steel

ASTM / ASME A/SA 182 F51/2205/S31803/1.4462;F53/2507/S32750/1.4410;F55/S32760,

F50/S31200;F57/S39277;F59/S32520;F60/S32205;F61/S32250; F904L/N08904/1.4539;F44/254SMO/S31254/1.4574;S31050/1.4466;

17-4PH/S17400/1.4548;724L;316Lmod/1.4435;725LN/310MoLN
Special Alloy Inconel 600,Inconel 625,Inconel 718,Inconel X-750,Incoloy800,Incoloy 800H,Incoloy825,Hastelloy C276,Monel 400, Monel K-500



Standards: ASTM/ASME A789/SA789, A790/SA790,A450,A530

Material: UNS S31803(Cr22Ni5Mo3/1.4462)/2205,UNS S32750(1.4410),UNS S31500(Cr18NiMo3Si2),

UNS32760(1.4501)





Chemical Composition





Grade

C

max

Si

max

Mn

max

P

max

S

max

 Cr Ni Mo N
UNS S32750 0.030 0.8 1.2 0.030 0.015 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32
UNS S31803 0.030 1.0 2.0 0.020 0.020 21.0-23.0 4.5-6.5 2.5-3.5 0.08-0.20
UNS S31500 0.030 1.0 1.2-2.0 0.030 0.030 18.0-19.0 4.5-5.5 2.5-3.5 0.05-0.10




Physical Properties





Grade Y.S.MPa min T.S.Mpa min Elongation % Hardness HRC
UNS S32750 550 800 15 20
UNS S31803 450 620 25 20
UNS S31500 440 630 30 20





Duplex Stainless Steel Pipe Application:



Chemical processing, Transport and Storage.

Oil and gas exploration and offshore rigs.

Oil and gas refining.

Marine environments.

Pollution control equipment.

Pulp and paper manufacturing

Chemical process Plant



Some of the quality tests carried out by us includes:

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing

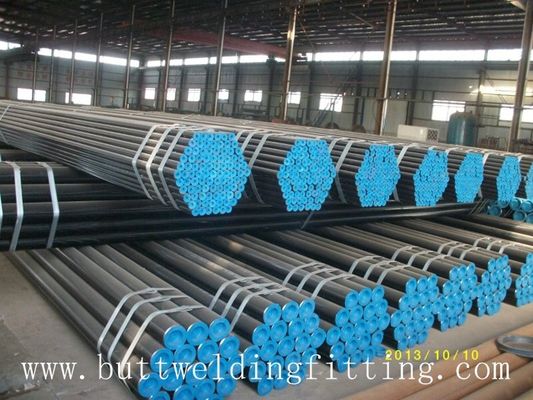

A234M WP5 API Carbon Steel Pipe , Size 1/2’’ - 48’’ Seamless / 16’’ - 72’’ Welded 0
